Product description

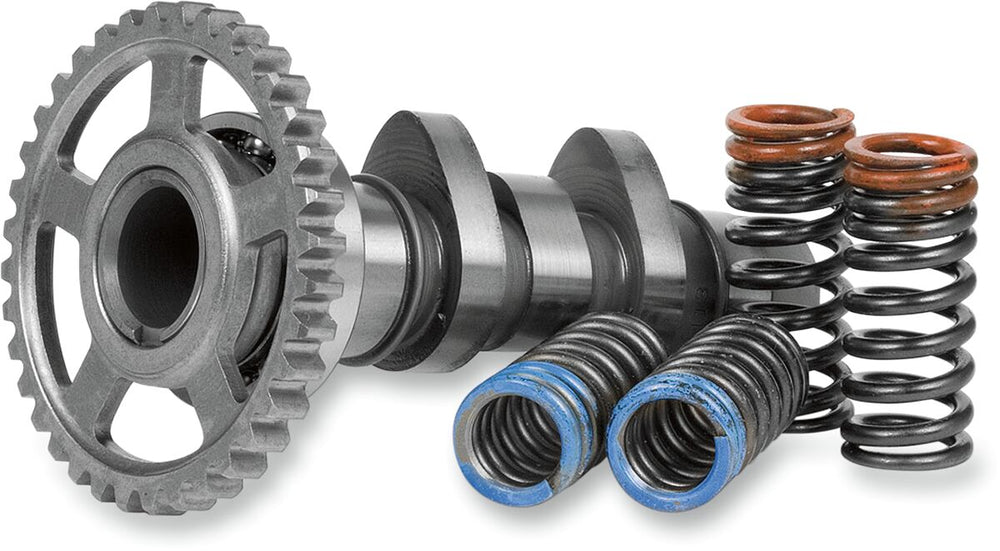

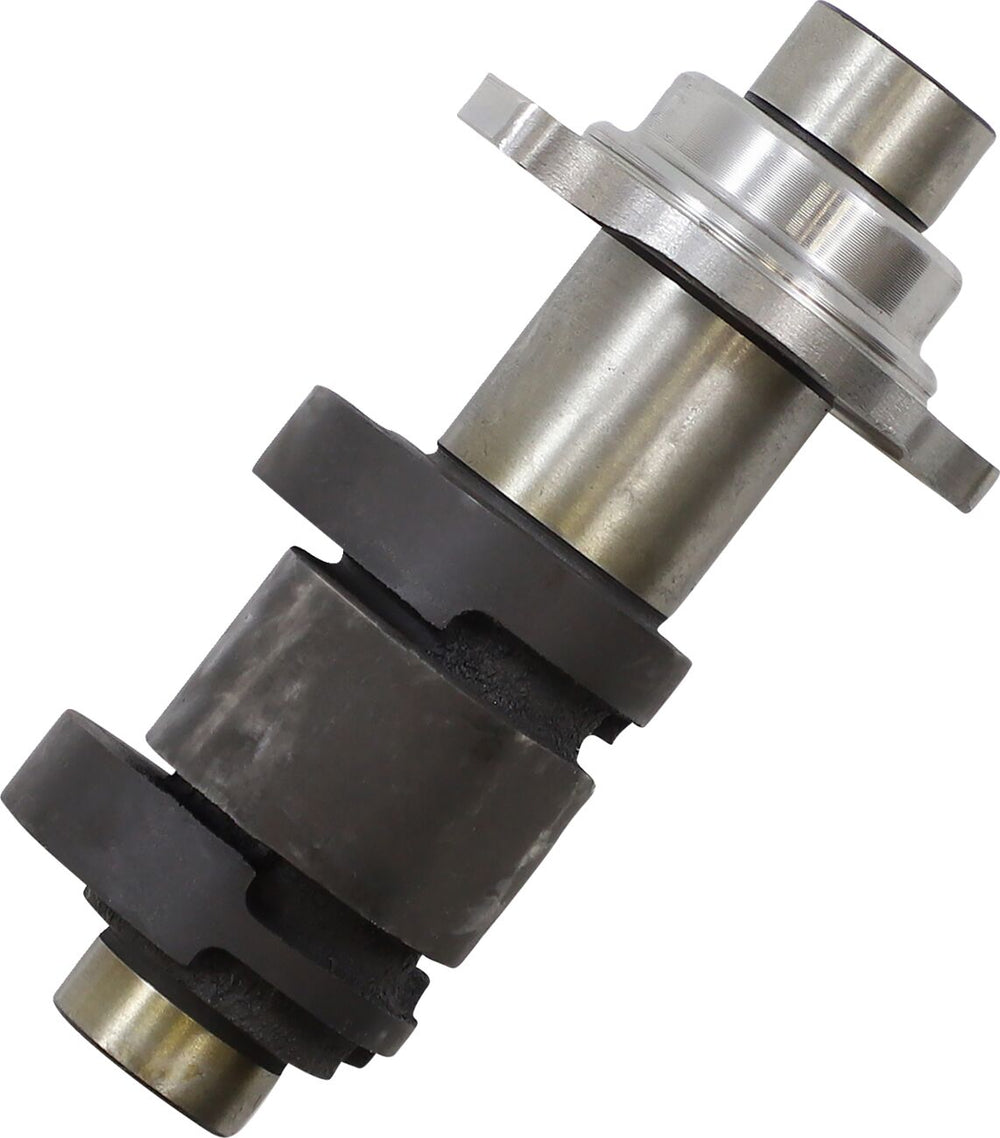

The Camshaft Stage 1 is part of the latest collection from Hot Cams.

Features:

• Designed and dyno proven in the USA
• Engineered by using valvetrain software
• Adds a 5%-10% power gain
• CNC machined from 8620 billet, case hardened steel for an exact fit and lobe profile
• Select cams feature Hot Cams Improved Throttle Design (I.T.R.) technology; these cams improve throttle response throughout the entire rpm range while providing excellent power gains through the mid-range and top-end
• Designed for low end torque.
• Engineered to be drop in cams that use stock valve springs (unless otherwise noted).
Mid range and top end power increase. Uses stock valve springs and rockers. Does not use auto-decompression mechanism. For single cam engine. Intake Valve Lash: 0.200 mm. Exhaust Valve Lash: 0.150 mm.

Specifications:

• Application: Exhaust| Intake
• Exhaust Duration: 251°
• Exhaust Lift: 9.210 mm
• Exhaust Lobe Centerline: 105°
• Intake Duration: 254°
• Intake Lift: 9.260 mm
• Intake Lobe Centerline: 109°
• Product Name: Camshaft
• Type: Stage 1
• Units: Each

To fit:

• HONDA XR 650 R 2000 All Models
• HONDA XR 650 R 2001 All Models
• HONDA XR 650 R 2002 All Models
• HONDA XR 650 R 2003 All Models
• HONDA XR 650 R 2004 All Models
• HONDA XR 650 R 2005 All Models
• HONDA XR 650 R 2006 All Models
• HONDA XR 650 R 2007 All Models

Manufacturer part number: 1009-1

View all Hot Cams. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot CAMS Camshaft Stage 1
