Product description

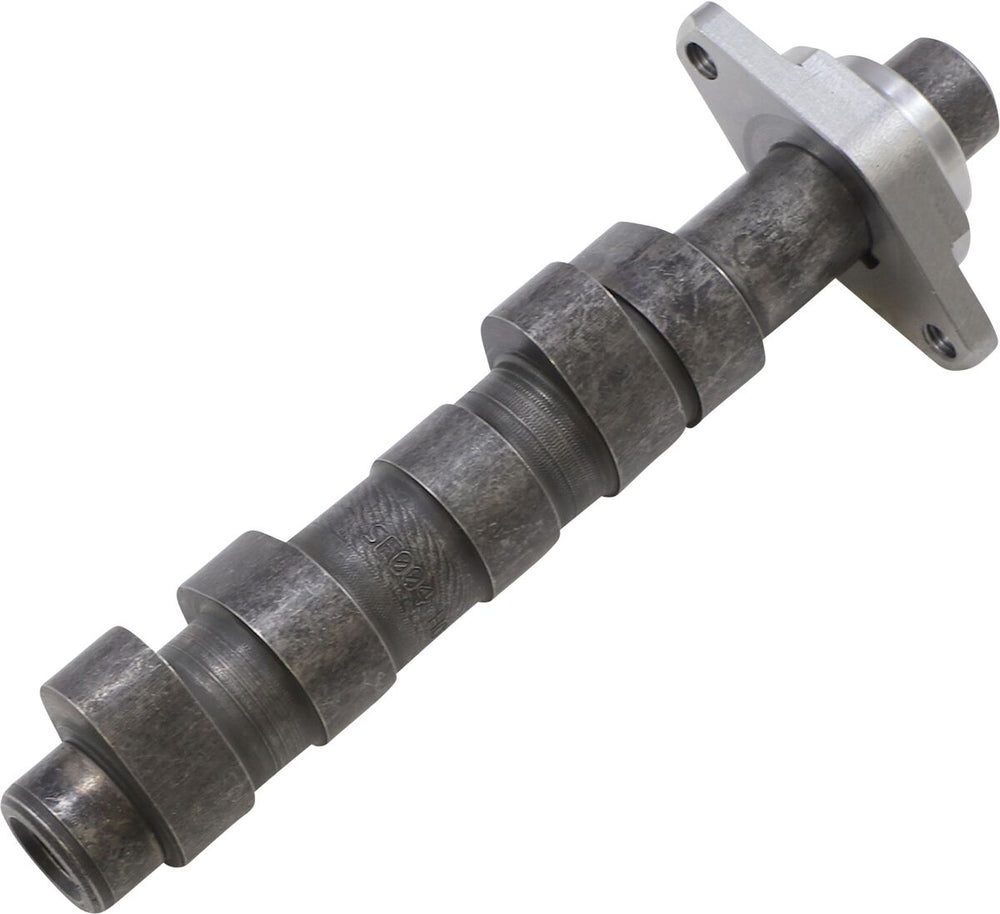

The Hot Cams Camshaft Stage 1 For Honda NX650 1988-1989 is part of the latest collection from Hot Cams.

Features:

• Designed and dyno proven in the USA
• Engineered by using valvetrain software
• Adds a 5%-10% power gain
• CNC machined from 8620 billet, case hardened steel for an exact fit and lobe profile
• Select cams feature Hot Cams Improved Throttle Design (I.T.R.) technology; these cams improve throttle response throughout the entire rpm range while providing excellent power gains through the mid-range and top-end
• Designed for low end torque.
• Engineered to be drop in cams that use stock valve springs (unless otherwise noted).
Mid range and top end power increase. Uses stock valve springs and rockers. Does not use auto-decompression. Intake Valve Lash: 0.150 mm. Exhaust Valve Lash: 0.200 mm.

Specifications:

• Application: Exhaust| Intake
• Exhaust Duration: 258°
• Exhaust Lift: 8.80 mm
• Intake Duration: 258°
• Intake Lift: 8.80 mm
• Product Name: Camshaft
• Type: Stage 1
• Units: Each

To fit:

• HONDA NX 650 1988 Dominator All Models
• HONDA NX 650 1989 Dominator All Models
• HONDA XR 600 R 1988 All Models
• HONDA XR 600 R 1989 All Models
• HONDA XR 600 R 1990 All Models
• HONDA XR 600 R 1991 All Models
• HONDA XR 600 R 1992 All Models
• HONDA XR 600 R 1993 All Models
• HONDA XR 600 R 1994 All Models
• HONDA XR 600 R 1995 All Models
• HONDA XR 600 R 1996 All Models
• HONDA XR 600 R 1997 All Models
• HONDA XR 600 R 1998 All Models
• HONDA XR 600 R 1999 All Models
• HONDA XR 600 R 2000 All Models
• HONDA XR 650 L 1993 American Models
• HONDA XR 650 L 1994 American Models
• HONDA XR 650 L 1995 American Models
• HONDA XR 650 L 1996 American Models
• HONDA XR 650 L 1997 American Models
• HONDA XR 650 L 1998 American Models
• HONDA XR 650 L 1999 American Models
• HONDA XR 650 L 2000 American Models
• HONDA XR 650 L 2001 American Models
• HONDA XR 650 L 2002 American Models
• HONDA XR 650 L 2003 American Models
• HONDA XR 650 L 2004 American Models
• HONDA XR 650 L 2005 American Models
• HONDA XR 650 L 2006 American Models
• HONDA XR 650 L 2007 American Models
• HONDA XR 650 L 2008 American Models
• HONDA XR 650 L 2009 American Models
• HONDA XR 650 L 2012 American Models
• HONDA XR 650 L 2013 American Models
• HONDA XR 650 L 2014 American Models
• HONDA XR 650 L 2015 American Models
• HONDA XR 650 L 2016 American Models
• HONDA XR 650 L 2017 American Models
• HONDA XR 650 L 2018 American Models
• HONDA XR 650 L 2019 American Models
• HONDA XR 650 L 2020 American Models
• HONDA XR 650 L 2021 American Models

Manufacturer part number: 1004-1

View all Hot Cams. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot Cams Camshaft Stage 1 For Honda NX650 1988-1989
