Product description

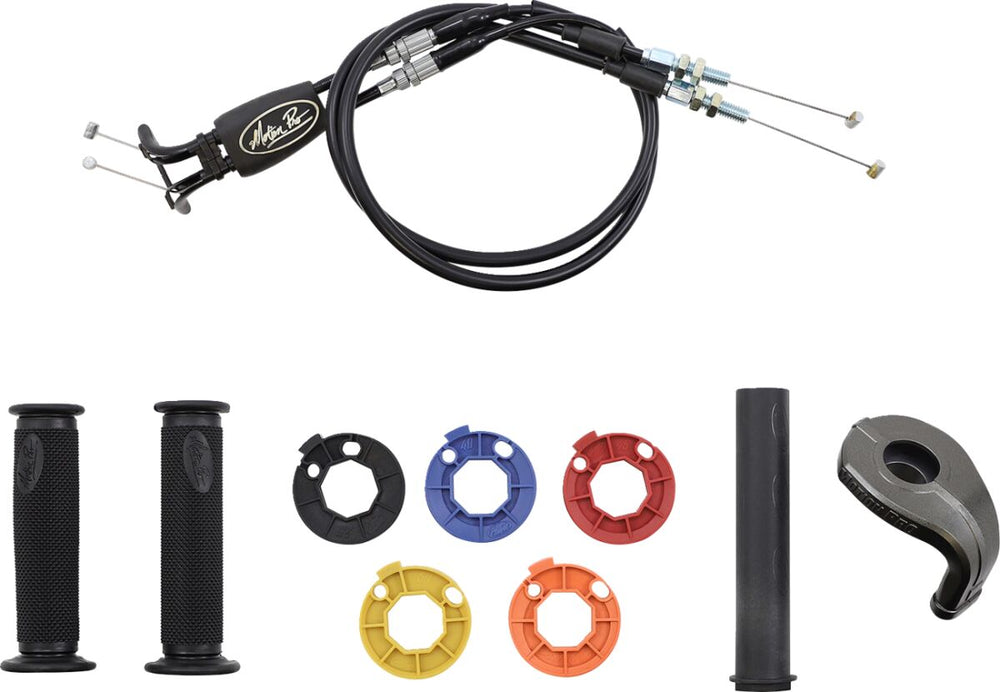

The Rev3 Variable Rate Throttle Kit is part of the latest collection from Motion Pro.

Features:

• Slim REV3 throttle housing allows more room for lever clearance and adjustment to throttle housing position
• Innovative reel changing system lets you tailor the throttle rate to your preference and riding conditions
• Five different reels provide perfect throttle response for any condition: Use smaller reels for slower throttle rate and larger reels for faster throttle rate; included cam reel provides progressive throttle response preferred by some riders
• Cable boot keeps dirt and dust out for reliable and smooth operation
• Improved throttle stop provides greater strength and durability - Snap together elbows makes it even easier to install and change reels
• REV3 off-road kits are compatible with Motion Pro DirtControl V2 Lock-On grips and ODI Lock-On grips
• Billet aluminum inline cable adjusters ease installation and adjustment
• Lower section of cables use 5 mm housing with PTFE liner for reduced friction, increased routing flexibility and lighter weight
• Simple to install and maintain
• Upper section of cables use 6 mm housing to provide solid support of adjusters
• Patented
• Rev3 Kits have cables specifically designed for fitment on specific models, but the Rev3 throttle itself is not model specific. Therefore, in some situations, the Rev3 kit may not be a direct bolt on installation due to space limitations on the stock handlebar. In some installations, it may be necessary to move other control components on the stock handlebar, shorten the Rev3 throttle tube and grip, install longer after market handlebars, or possibly all of the above. It is up to the end user to determine the best method for fitment on their motorcycle, and ensure that the Rev3 kit is installed properly and with the correct clearances for safe operation. Installation should be done by a qualified mechanic and carefully checked for proper function. Warning: Improper installation could result in great bodily injury or death.
For use with stock throttle bodies; stock reel is 33.4 mm. IMPORTANT - The stock twist throttle assembly on this model incorporates an on/off switch, mode switch, and starter button. The Motion Pro 11-0098 accessory switch only has an on/off switch and starter button and cannot be used to replace the original switching functions on the stock throttle assembly. In order to install the Rev3 kit and retain all the necessary switching functions, owners of this model will need to install longer aftermarket handlebars (at least 50 mm longer than stock on the right side) and use the stock throttle assembly mounted behind the Rev3 throttle housing. The stock twist throttle assembly can be modified to remove the throttle reel holder portion and leave just the necessary switches.

Specifications:

• Base Color: Black
• Color/Finish: Black
• Features: with Cable
• For Handlebar Diameter Imperial: 7/8"
• For Handlebar Diameter Metric: 22 mm
• For Handlebar Diameter: 22 mm (7/8")
• Material: Aluminum| Plastic
• Model: Rev3
• Product Name: Throttle
• Style: Dual Cable| Twist Throttle
• Units: Kit

To fit:

• SUZUKI GSX-R 1000 2007 American Models
• SUZUKI GSX-R 1000 2007 European Models
• SUZUKI GSX-R 1000 2008 American Models
• SUZUKI GSX-R 1000 2008 European Models

Manufacturer part number: 01-2916

View all Motion Pro. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Motion Pro Rev3 Variable Rate Throttle Kit For Suzuki GSX-R 1000 2007-2008
