Product description

The Rev3 Variable Rate Throttle Kit is part of the latest collection from Motion Pro.

Features:

• Slim REV3 throttle housing allows more room for lever clearance and adjustment to throttle housing position
• Innovative reel changing system lets you tailor the throttle rate to your preference and riding conditions
• Five different reels provide perfect throttle response for any condition: Use smaller reels for slower throttle rate and larger reels for faster throttle rate; included cam reel provides progressive throttle response preferred by some riders
• Cable boot keeps dirt and dust out for reliable and smooth operation
• Improved throttle stop provides greater strength and durability - Snap together elbows makes it even easier to install and change reels
• REV3 off-road kits are compatible with Motion Pro DirtControl V2 Lock-On grips and ODI Lock-On grips
• Billet aluminum inline cable adjusters ease installation and adjustment
• Lower section of cables use 5 mm housing with PTFE liner for reduced friction, increased routing flexibility and lighter weight
• Simple to install and maintain
• Upper section of cables use 6 mm housing to provide solid support of adjusters
• Patented
• Rev3 Kits have cables specifically designed for fitment on specific models, but the Rev3 throttle itself is not model specific. Therefore, in some situations, the Rev3 kit may not be a direct bolt on installation due to space limitations on the stock handlebar. In some installations, it may be necessary to move other control components on the stock handlebar, shorten the Rev3 throttle tube and grip, install longer after market handlebars, or possibly all of the above. It is up to the end user to determine the best method for fitment on their motorcycle, and ensure that the Rev3 kit is installed properly and with the correct clearances for safe operation. Installation should be done by a qualified mechanic and carefully checked for proper function. Warning: Improper installation could result in great bodily injury or death.
Fits CA models (E33) only with CV carburetors; does not fit 49 state models (E3) with 33 mm Mikuni Flat Slide carburetors.

Specifications:

• Base Color: Black
• Color/Finish: Black
• Features: with Cable
• For Handlebar Diameter Imperial: 7/8"
• For Handlebar Diameter Metric: 22 mm
• For Handlebar Diameter: 22 mm (7/8")
• Material: Aluminum| Plastic
• Model: Rev3
• Product Name: Throttle
• Style: Dual Cable| Twist Throttle
• Units: Kit

To fit:

• SUZUKI DR-Z 400 SM 2005 American Models
• SUZUKI DR-Z 400 SM 2005 European Models
• SUZUKI DR-Z 400 SM 2006 American Models
• SUZUKI DR-Z 400 SM 2006 European Models
• SUZUKI DR-Z 400 SM 2007 European Models
• SUZUKI DR-Z 400 SM 2013 American Models
• SUZUKI DR-Z 400 SM 2014 American Models
• SUZUKI DR-Z 400 SM 2015 American Models
• SUZUKI DR-Z 400 SM 2016 American Models
• SUZUKI DR-Z 400 SM 2017 American Models
• SUZUKI DR-Z 400 SM 2018 American Models
• SUZUKI DR-Z 400 SM 2019 American Models
• SUZUKI DR-Z 400 SM 2020 American Models
• SUZUKI DR-Z 400 SM 2021 American Models
• SUZUKI DR-Z 400 SM 2022 American Models

Manufacturer part number: 01-2989

View all Motion Pro. View all Parts and spares.

Contents

Your package will include the following:

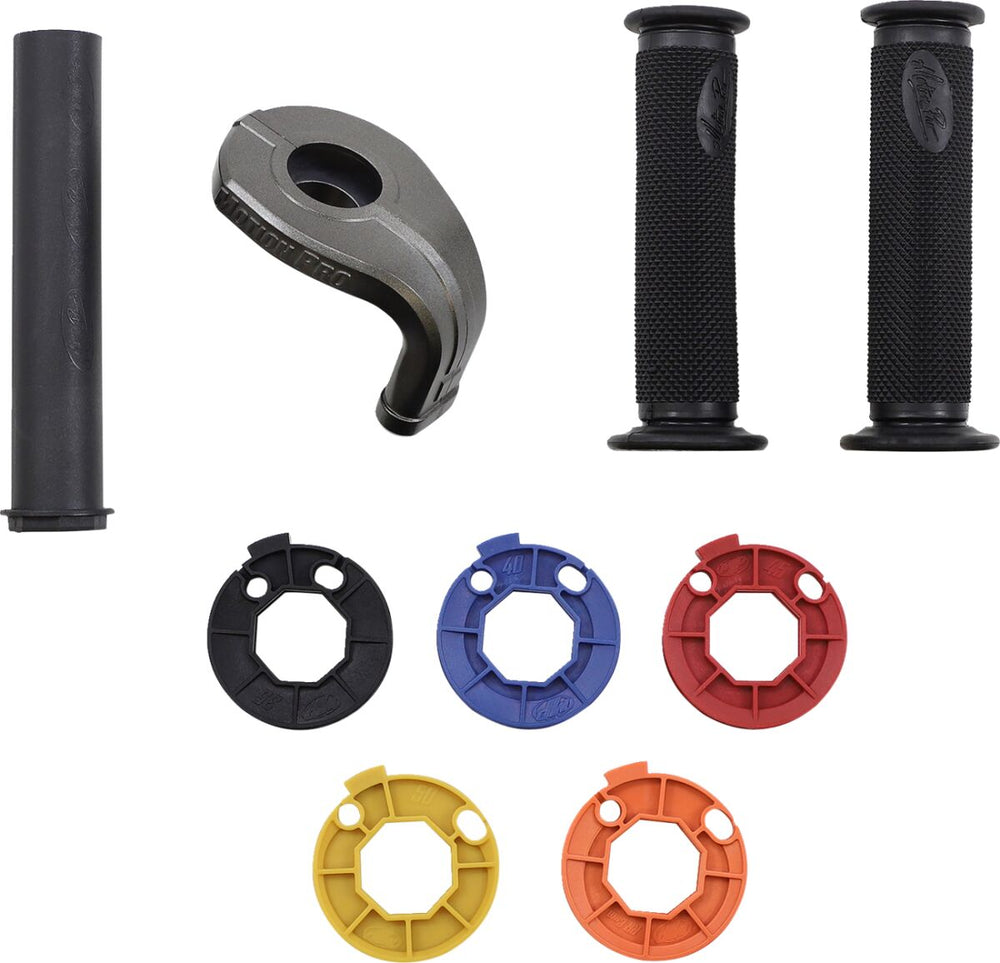

• 1 X Motion Pro Rev3 Variable Rate Throttle Kit For Suzuki DRZ400SM 2005-2007
