Product description

The Wiseco Piston kit For Arctic Cat Crossfire 5 500 2007-2008 Standard is part of the latest collection from Wiseco.

Features:

• All the necessary components for overboring or rebuilding your top end

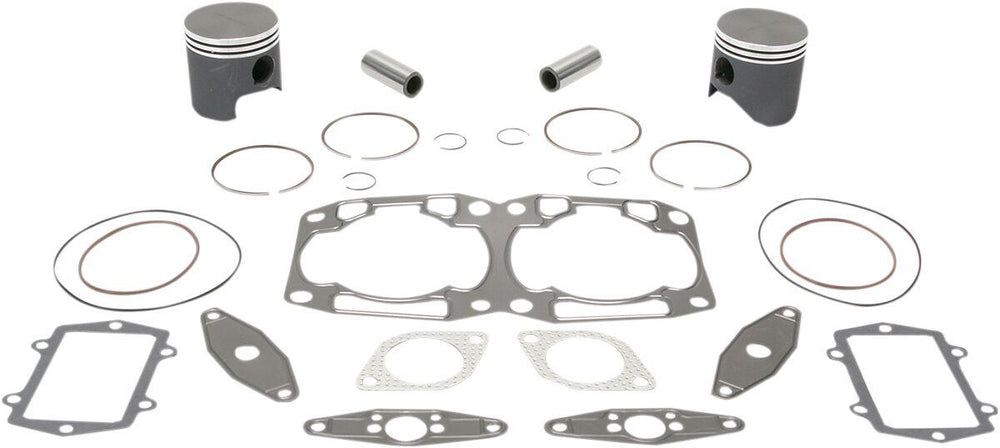

• Kit includes forged pistons, rings, wrist pins, circlips and top end gasket set
• Cylinder sleeves must be purchased separately.
Fits Nikasil bore cylinder.

Specifications:

• Bore - Oversize Metric: Standard
• Bore - Oversize: Standard
• Bore Size: 71.00 mm
• Displacement: 499 cc
• Engine Type: 2-Stroke
• Model: Pro-Lite
• Piston Diameter Metric: 70.87 mm
• Piston Diameter: 70.87 mm
• Piston Material: 4032 Aluminum Alloy
• Product Name: Rebuild Kit
• Skirt Coating: Non-Coated
• Stroke Length: 63.00 mm

To fit:

• ARCTIC CAT CROSSFIRE 5 500 2008 All Models
• ARCTIC CAT F5 500 LXR 2007 All Models
• ARCTIC CAT F5 500 LXR 2008 All Models
• ARCTIC CAT F5 500 LXR 2009 All Models
• ARCTIC CAT F5 500 LXR 2010 All Models
• ARCTIC CAT F5 500 LXR 2011 All Models
• ARCTIC CAT F5 500 LXR 2012 All Models
• ARCTIC CAT F5 500 2007 All Models
• ARCTIC CAT F5 500 2008 All Models
• ARCTIC CAT M5 500 2005 All Models
• ARCTIC CAT M5 500 2006 Attack 20 All Models
• ARCTIC CAT SABERCAT 500 EFI 2006 All Models
• ARCTIC CAT SABERCAT 500 LX 2004 All Models
• ARCTIC CAT SABERCAT 500 LX 2006 All Models
• ARCTIC CAT SABERCAT 500 2004 All Models
• ARCTIC CAT SNO PRO 500 2010 All Models
• ARCTIC CAT SNO PRO 500 2011 All Models
• ARCTIC CAT SNO PRO 500 2012 All Models
• ARCTIC CAT SNO PRO 500 2013 All Models
• ARCTIC CAT SNO PRO 500 2014 All Models
• ARCTIC CAT T 500 2008 All Models
• ARCTIC CAT T 500 2009 All Models
• ARCTIC CAT CROSSFIRE 5 500 2007 All Models

Manufacturer part number: SK1330
