Product description

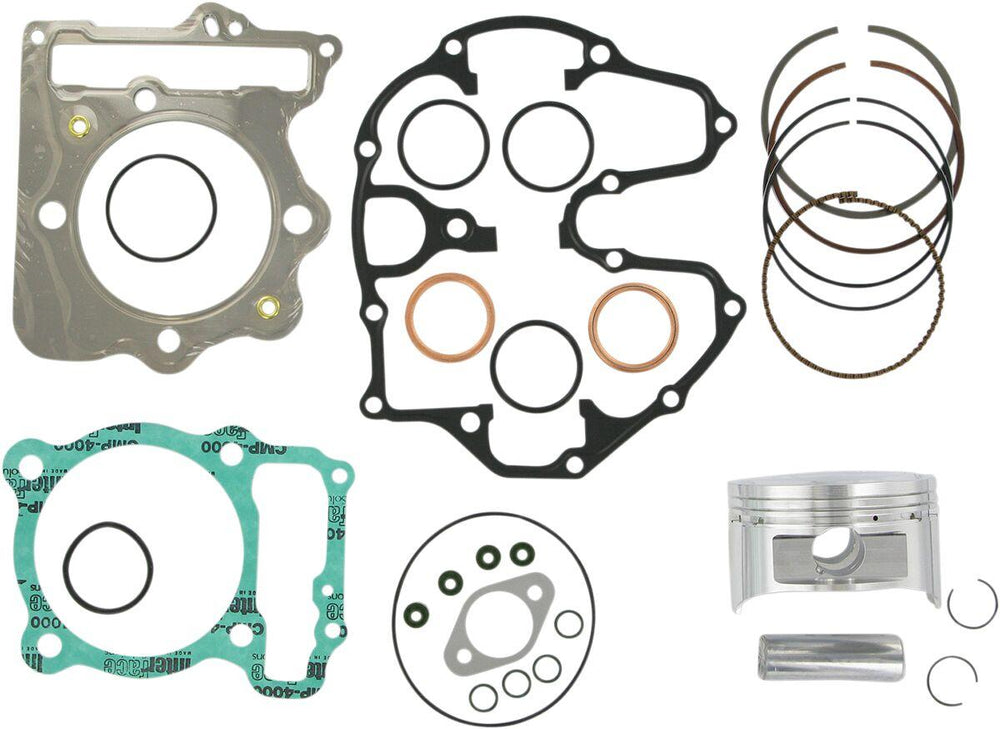

The Wiseco High Performance Piston Kit For Honda TRX400EX 2000-2007 is part of the latest collection from Wiseco.

Features:

• Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
• Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
• Wiseco pistons can be fitted only with Wiseco rings
• Cylinder sleeves must be purchased separately.
Kit Includes: • Piston Kit #4606M08500 • Ring Set #3347XC • Wrist Pin #S520 • Wrist Pin Retainer Set #CW20 • Gasket Kit #W5514

Specifications:

• Bore Size: 85.00 mm
• Compression Ratio Imperial: 10.0
• Compression Ratio: 10.0
• Displacement: 397 cc
• Engine Type: 4-Stroke
• Model: Forged Series
• Piston Diameter Metric: 84.95 mm
• Piston Diameter: 84.95 mm
• Piston Material: 2618 Aluminum Alloy
• Product Name: Rebuild Kit
• Skirt Coating: Non-Coated
• Stroke Length: 70.00 mm

To fit:

• HONDA TRX 400 EX 2001 Fourtrax All Models
• HONDA TRX 400 EX 2002 Sportrax All Models
• HONDA TRX 400 EX 2003 Sportrax All Models
• HONDA TRX 400 EX 2004 Sportrax All Models
• HONDA TRX 400 EX 2005 Sportrax All Models
• HONDA TRX 400 EX 2006 Sportrax All Models
• HONDA TRX 400 EX 2007 Sportrax All Models
• HONDA XR 400 R 1996 All Models
• HONDA XR 400 R 1997 All Models
• HONDA XR 400 R 1998 All Models
• HONDA XR 400 R 1999 All Models
• HONDA XR 400 R 2000 All Models
• HONDA XR 400 R 2001 All Models
• HONDA XR 400 R 2002 All Models
• HONDA TRX 400 EX 2000 Fourtrax All Models

Manufacturer part number: PK1031

View all Wiseco. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Wiseco High Performance Piston Kit For Honda TRX400EX 2000-2007
