Product description

The Wiseco High Performance Piston Kit For Suzuki LT-4WD 250 4X4 1987-1992 is part of the latest collection from Wiseco.

Features:

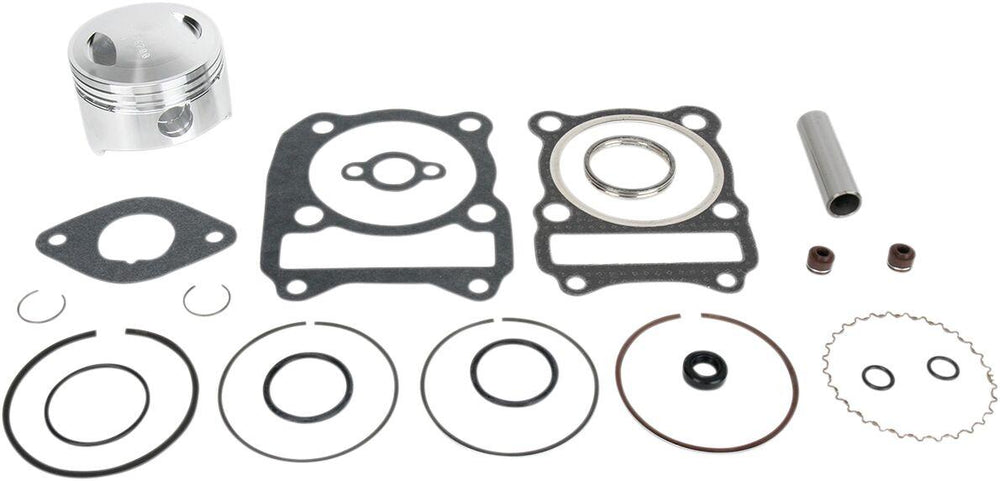

• Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
• Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
• Wiseco pistons can be fitted only with Wiseco rings
• Cylinder sleeves must be purchased separately.
Piston is +1.00 mm oversize Kit Includes: • Piston Kit #4382M06700 • Ring Set #2638XD • Wrist Pin #S259 • Wrist Pin Retainer Set #CW16 • Gasket Kit #W5896

Specifications:

• Bore Size: 67.00 mm
• Compression Ratio Imperial: 10.25
• Compression Ratio: 10.25
• Displacement: 249 cc
• Engine Type: 4-Stroke
• Model: Forged Series
• Piston Diameter Metric: 66.95 mm
• Piston Diameter: 66.95 mm
• Piston Material: 2618 Aluminum Alloy
• Product Name: Rebuild Kit
• Skirt Coating: Non-Coated
• Stroke Length: 67.00 mm

To fit:

• SUZUKI LT-4WDX 250 4X4 1992 Kingquad All Models
• SUZUKI LT-4WDX 250 4X4 1993 Kingquad All Models
• SUZUKI LT-4WDX 250 4X4 1994 Kingquad All Models
• SUZUKI LT-4WDX 250 4X4 1995 Kingquad All Models
• SUZUKI LT-4WD 250 4X4 1987 Quadrunner All Models
• SUZUKI LT-4WD 250 4X4 1988 Quadrunner All Models
• SUZUKI LT-4WD 250 4X4 1989 Quadrunner All Models
• SUZUKI LT-4WD 250 4X4 1990 Quadrunner All Models
• SUZUKI LT-4WD 250 4X4 1991 Quadrunner All Models
• SUZUKI LT-4WD 250 4X4 1992 Quadrunner All Models
• SUZUKI LT-4WDX 250 4X4 1991 Kingquad All Models

Manufacturer part number: PK1012

View all Wiseco. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Wiseco High Performance Piston Kit For Suzuki LT-4WD 250 4X4 1987-1992
