Product description

The Wiseco High Performance Piston Kit For Honda TRX450 ES 1998-2001 is part of the latest collection from Wiseco.

Features:

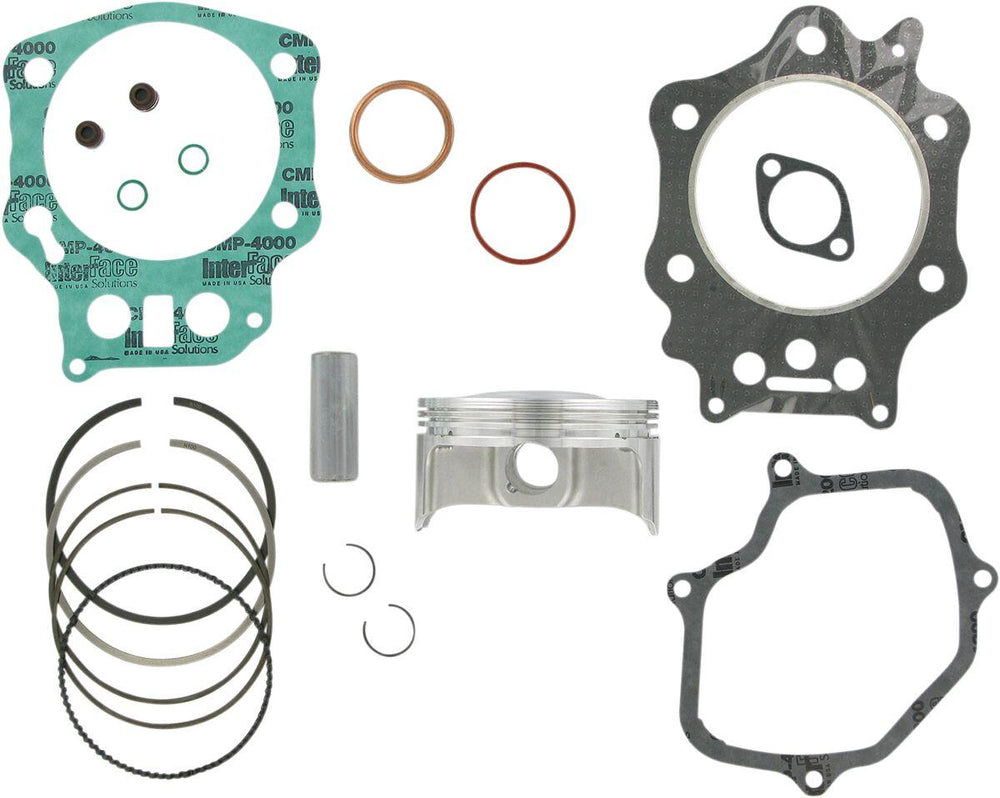

• Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
• Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
• Wiseco pistons can be fitted only with Wiseco rings
• Cylinder sleeves must be purchased separately.
Piston is +1.00 mm oversize. Kit Includes: • Piston Kit #4825M09100 • Ring Set #9100XX • Wrist Pin #S660 • Wrist Pin Retainer Set #CW19 • Gasket Kit #W6371

Specifications:

• Bore Size: 91.00 mm
• Compression Ratio Imperial: 9.5
• Compression Ratio: 9.5
• Displacement: 432 cc
• Engine Type: 4-Stroke
• Model: Forged Series
• Piston Diameter Metric: 90.92 mm
• Piston Diameter: 90.92 mm
• Piston Material: 2618 Aluminum Alloy
• Product Name: Rebuild Kit
• Skirt Coating: Non-Coated
• Stroke Length: 68.00 mm

To fit:

• HONDA TRX 450 ES 1999 Fourtrax Foreman ES All Models
• HONDA TRX 450 ES 2000 Fourtrax Foreman ES All Models
• HONDA TRX 450 ES 2001 Fourtrax Foreman ES All Models
• HONDA TRX 450 FE 2002 Fourtrax Foreman ES All Models
• HONDA TRX 450 FE 2003 Fourtrax Foreman ES All Models
• HONDA TRX 450 FE 2004 Fourtrax Foreman ES All Models
• HONDA TRX 450 FM 2002 Fourtrax Foreman S All Models
• HONDA TRX 450 FM 2003 Fourtrax Foreman S All Models
• HONDA TRX 450 FM 2004 Fourtrax Foreman S All Models
• HONDA TRX 450 S 1998 Fourtrax Foreman S All Models
• HONDA TRX 450 S 1999 Fourtrax Foreman S All Models
• HONDA TRX 450 S 2000 Fourtrax Foreman S All Models
• HONDA TRX 450 S 2001 Fourtrax Foreman S All Models
• HONDA TRX 450 ES 1998 Fourtrax Foreman ES All Models

Manufacturer part number: PK1591

View all Wiseco. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Wiseco High Performance Piston Kit For Honda TRX450 ES 1998-2001
