Product description

The Wiseco High Performance Piston Kit For Suzuki DRZ400 2000-2004 is part of the latest collection from Wiseco.

Features:

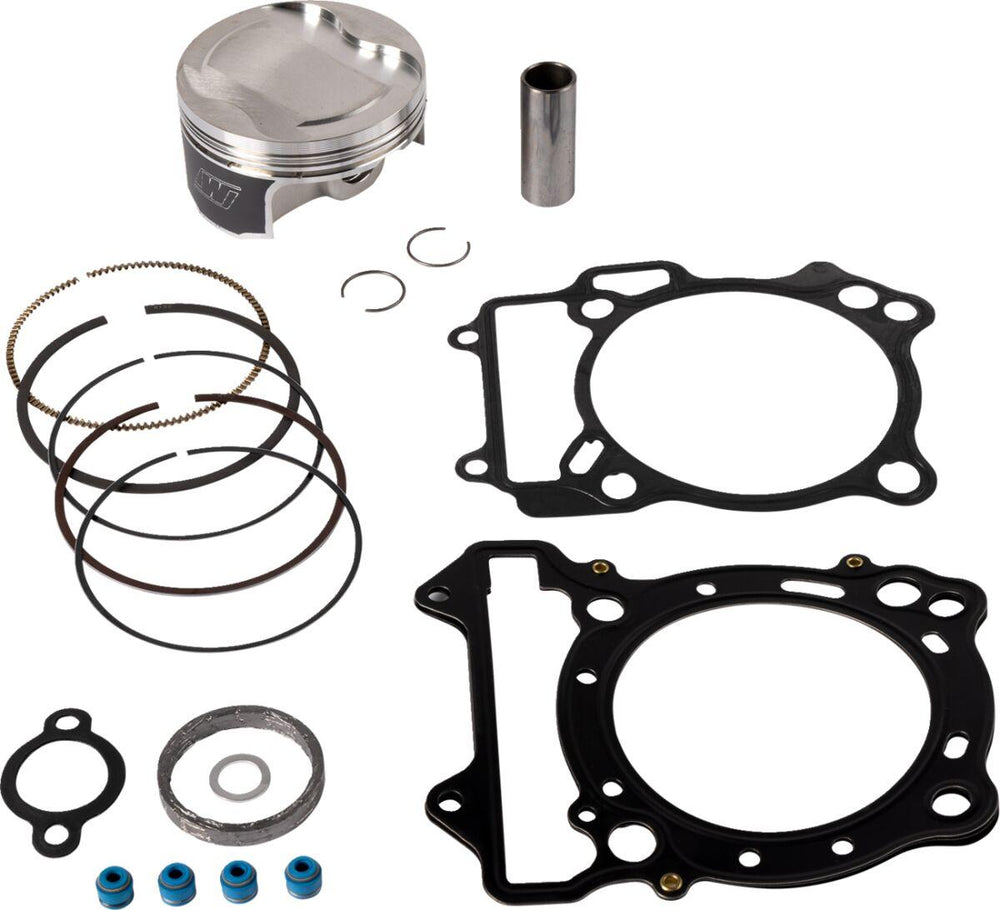

• Complete piston kit includes pistons, rings, wrist pins, circlips and top-end gasket kit for one complete engine
• Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
• Wiseco pistons can be fitted only with Wiseco rings
• Cylinder sleeves must be purchased separately.
Kit Includes: • Piston Kit #4714M09000 • Ring Set #35433XR • Wrist Pin #S549 • Wrist Pin Retainer Set #CW20 • Gasket Kit #W5881

Specifications:

• Bore Size: 90.00 mm
• Compression Ratio Imperial: 13.5
• Compression Ratio: 13.5
• Displacement: 398 cc
• Engine Type: 4-Stroke
• Model: Forged Series
• Piston Diameter Metric: 89.92 mm
• Piston Diameter: 89.92 mm
• Piston Material: 2618 Aluminum Alloy
• Product Name: Rebuild Kit
• Skirt Coating: ArmorGlide®
• Stroke Length: 62.60 mm

To fit:

• KAWASAKI KFX 400 2X4 2004 All Models
• KAWASAKI KFX 400 2X4 2005 All Models
• KAWASAKI KFX 400 2X4 2006 All Models
• KAWASAKI KLX 400 R 2003 American Models
• KAWASAKI KLX 400 SR 2003 American Models
• SUZUKI DR-Z 400 E 2000 American Models
• SUZUKI DR-Z 400 E 2000 European Models
• SUZUKI DR-Z 400 E 2001 American Models
• SUZUKI DR-Z 400 E 2001 European Models
• SUZUKI DR-Z 400 E 2002 American Models
• SUZUKI DR-Z 400 E 2002 European Models
• SUZUKI DR-Z 400 E 2003 American Models
• SUZUKI DR-Z 400 E 2003 European Models
• SUZUKI DR-Z 400 E 2004 American Models
• SUZUKI DR-Z 400 E 2004 European Models
• SUZUKI DR-Z 400 E 2005 American Models
• SUZUKI DR-Z 400 E 2005 European Models
• SUZUKI DR-Z 400 E 2006 American Models
• SUZUKI DR-Z 400 E 2007 American Models
• SUZUKI DR-Z 400 SM 2005 American Models
• SUZUKI DR-Z 400 SM 2005 European Models
• SUZUKI DR-Z 400 SM 2006 American Models
• SUZUKI DR-Z 400 SM 2006 European Models
• SUZUKI DR-Z 400 SM 2007 American Models
• SUZUKI DR-Z 400 SM 2007 European Models
• SUZUKI DR-Z 400 SM 2008 American Models
• SUZUKI DR-Z 400 SM 2008 European Models
• SUZUKI DR-Z 400 SM 2009 American Models
• SUZUKI DR-Z 400 SM 2010 American Models
• SUZUKI DR-Z 400 SM 2011 American Models
• SUZUKI DR-Z 400 SM 2012 American Models
• SUZUKI DR-Z 400 SM 2013 American Models
• SUZUKI DR-Z 400 SM 2014 American Models
• SUZUKI DR-Z 400 SM 2015 American Models
• SUZUKI DR-Z 400 SM 2016 American Models
• SUZUKI DR-Z 400 SM 2017 American Models
• SUZUKI DR-Z 400 SM 2018 American Models
• SUZUKI DR-Z 400 SM 2019 American Models
• SUZUKI DR-Z 400 SM 2020 American Models
• SUZUKI DR-Z 400 SM 2021 American Models
• SUZUKI DR-Z 400 SM 2022 American Models
• SUZUKI DR-Z 400 SM 2023 American Models
• SUZUKI DR-Z 400 SM 2024 American Models
• SUZUKI DR-Z 400 S 2000 American Models
• SUZUKI DR-Z 400 S 2000 European Models
• SUZUKI DR-Z 400 S 2001 American Models
• SUZUKI DR-Z 400 S 2001 European Models
• SUZUKI DR-Z 400 S 2002 American Models
• SUZUKI DR-Z 400 S 2002 European Models
• SUZUKI DR-Z 400 S 2003 American Models
• SUZUKI DR-Z 400 S 2003 European Models
• SUZUKI DR-Z 400 S 2004 American Models
• SUZUKI DR-Z 400 S 2004 European Models
• SUZUKI DR-Z 400 S 2005 American Models
• SUZUKI DR-Z 400 S 2005 European Models
• SUZUKI DR-Z 400 S 2006 American Models
• SUZUKI DR-Z 400 S 2006 European Models
• SUZUKI DR-Z 400 S 2007 American Models
• SUZUKI DR-Z 400 S 2008 American Models
• SUZUKI DR-Z 400 S 2009 American Models
• SUZUKI DR-Z 400 S 2010 American Models
• SUZUKI DR-Z 400 S 2011 American Models
• SUZUKI DR-Z 400 S 2012 American Models
• SUZUKI DR-Z 400 S 2013 American Models
• SUZUKI DR-Z 400 S 2014 American Models
• SUZUKI DR-Z 400 S 2015 American Models
• SUZUKI DR-Z 400 S 2016 American Models
• SUZUKI DR-Z 400 S 2017 American Models
• SUZUKI DR-Z 400 S 2018 American Models
• SUZUKI DR-Z 400 S 2019 American Models
• SUZUKI DR-Z 400 S 2020 American Models
• SUZUKI DR-Z 400 S 2021 American Models
• SUZUKI DR-Z 400 S 2022 American Models
• SUZUKI DR-Z 400 S 2023 American Models
• SUZUKI DR-Z 400 S 2024 American Models
• SUZUKI DR-Z 400 2000 American Models
• SUZUKI DR-Z 400 2000 European Models
• SUZUKI DR-Z 400 2001 American Models
• SUZUKI DR-Z 400 2001 European Models
• SUZUKI DR-Z 400 2002 American Models
• SUZUKI DR-Z 400 2002 European Models
• SUZUKI DR-Z 400 2003 American Models
• SUZUKI DR-Z 400 2003 European Models
• SUZUKI DR-Z 400 2004 American Models
• SUZUKI DR-Z 400 2004 European Models
• SUZUKI DR-Z 400 2005 American Models
• SUZUKI LT-Z 400 2X4 2003 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2004 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2005 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2006 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2007 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2008 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2009 Quadsport All Models
• SUZUKI LT-Z 400 Z 2004 Quadsport LTD All Models
• SUZUKI LT-Z 400 Z 2005 Quadsport LTD All Models
• SUZUKI LT-Z 400 Z 2006 Quadsport LTD All Models
• SUZUKI LT-Z 400 Z 2007 Quadsport LTD All Models
• SUZUKI LT-Z 400 Z 2008 Quadsport LTD All Models
• SUZUKI LT-Z 400 Z 2009 Quadsport LTD All Models
• KAWASAKI KFX 400 2X4 2003 All Models

Manufacturer part number: PK1661

View all Wiseco. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Wiseco High Performance Piston Kit For Suzuki DRZ400 2000-2004
