Product description

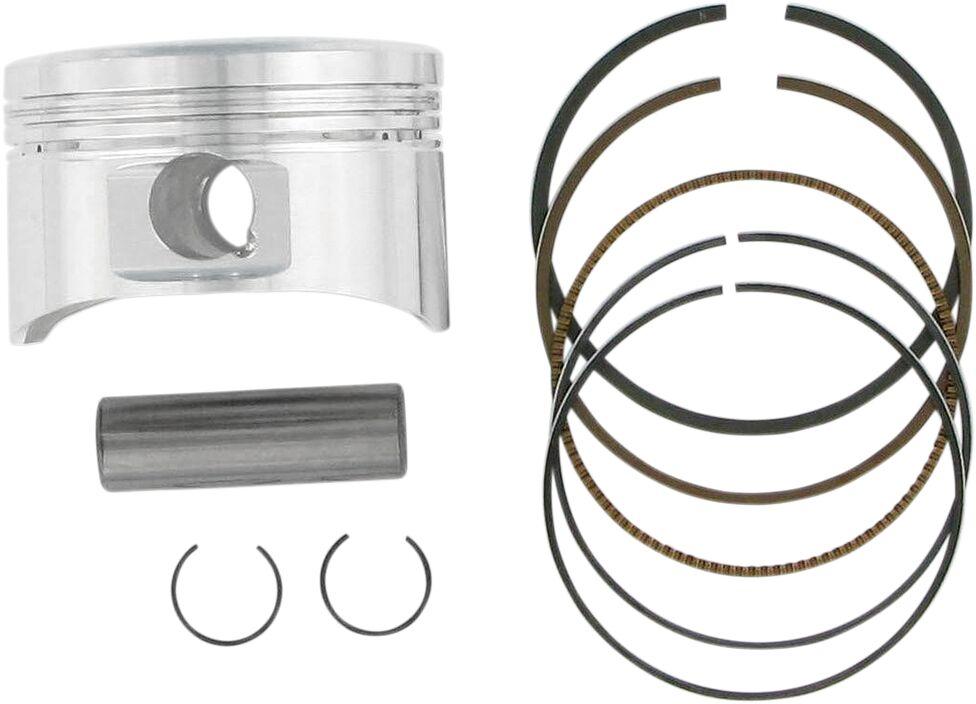

The Wiseco Forged Piston Kit For Honda CRF230F Standard is part of the latest collection from Wiseco.

Features:

• Forged 4-stroke piston is designed for each specific engine application and built to the tightest tolerances for the ultimate combination of performance and strength
• Dedicated forgings allow for optimized strength-to-weight ratio
• Ideal for multiple purpose riding
• Kit includes piston, wrist pin, rings and circlips
Kit Includes: • 1x Piston • 1x Ring Set #25787XA • 1x Wrist Pin #S632 • 1x Circlip Set #CW15

Specifications:

• Bore - Oversize Metric: Standard
• Bore - Oversize: Standard
• Bore Size: 65.50 mm
• Compression Ratio Imperial: 11.0
• Compression Ratio: 11.0
• Displacement: 223 cc
• Engine Type: 4-Stroke
• Model: Forged Series
• Piston Diameter Metric: 65.45 mm
• Piston Diameter: 65.45 mm
• Piston Material: Forged 2618 Aluminum
• Product Name: Piston Kit

To fit:

• HONDA CRF 230 F 2005 American Models
• HONDA CRF 230 F 2006 American Models
• HONDA CRF 230 F 2007 American Models
• HONDA CRF 230 F 2008 American Models
• HONDA CRF 230 F 2009 American Models
• HONDA CRF 230 F 2012 American Models
• HONDA CRF 230 F 2013 American Models
• HONDA CRF 230 F 2014 American Models
• HONDA CRF 230 F 2015 American Models
• HONDA CRF 230 F 2016 American Models
• HONDA CRF 230 F 2017 American Models
• HONDA CRF 230 F 2004 American Models

Manufacturer part number: 4816M06550

View all Wiseco. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Wiseco Forged Piston Kit For Honda CRF230F Standard
