Product description

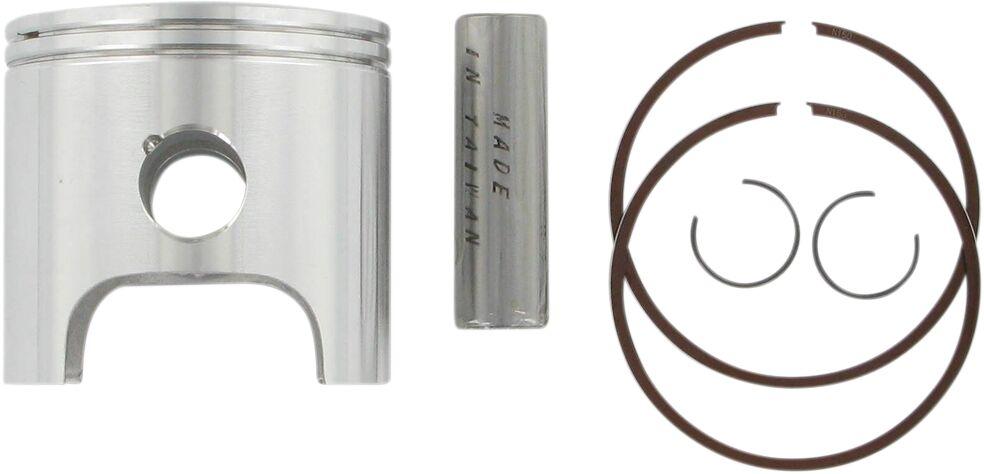

The Wiseco Forged Piston Kit For Ski-Doo (BRP) Formula MX 470 1986-1993 Standard is part of the latest collection from Wiseco.

Features:

• Designed and built for each specific 2-stroke powersports engine
• Forged from high-silicon alloy for maximum strength and dependability
• Dedicated forgings and additional lightening operations allow for optimized strength-to -weight ratio
• Kit includes piston(s), ring(s), wrist pin, and circlips
For 467 engine types. Fits cast iron bore cylinders.

Specifications:

• Bore - Oversize Metric: Standard
• Bore - Oversize: Standard
• Bore Size: 69.50 mm
• Displacement: 463 cc
• Engine Type: 2-Stroke
• Model: Forged Series
• Piston Diameter Metric: 69.42 mm
• Piston Diameter: 69.42 mm
• Piston Material: 4032 Aluminum Alloy
• Product Name: Piston Kit
• Skirt Coating: Non-Coated
• Stroke Length: 61.00 mm

To fit:

• SKI-DOO (BRP) FORMULA MX 470 1986 All Models
• SKI-DOO (BRP) FORMULA MX 470 1987 LT All Models
• SKI-DOO (BRP) FORMULA MX 470 1987 All Models
• SKI-DOO (BRP) FORMULA MX 470 1988 LT All Models
• SKI-DOO (BRP) FORMULA MX 470 1988 All Models
• SKI-DOO (BRP) FORMULA MX 470 1989 LT All Models
• SKI-DOO (BRP) FORMULA MX 470 1989 All Models
• SKI-DOO (BRP) FORMULA MX 470 1990 LT 2 All Models
• SKI-DOO (BRP) FORMULA MX 470 1990 LT All Models
• SKI-DOO (BRP) FORMULA MX 470 1990 All Models
• SKI-DOO (BRP) FORMULA MX 470 1991 XTC E All Models
• SKI-DOO (BRP) FORMULA MX 470 1991 XTC All Models
• SKI-DOO (BRP) FORMULA MX 470 1991 All Models
• SKI-DOO (BRP) FORMULA MX 470 1992 XTC R All Models
• SKI-DOO (BRP) FORMULA MX 470 1992 All Models
• SKI-DOO (BRP) FORMULA MX 470 1993 2 All Models
• SKI-DOO (BRP) FORMULA MX 470 1993 XTC R All Models
• SKI-DOO (BRP) FORMULA MX 470 1993 All Models
• SKI-DOO (BRP) FORMULA ST 470 1994 All Models
• SKI-DOO (BRP) FORMULA MX-Z 470 1993 All Models

Manufacturer part number: 2312M06950
