Product description

The Wiseco Piston Kit For Ski-Doo (BRP) FORMULA 520 1986-1987 Standard is part of the latest collection from Wiseco.

Features:

• Forged from high-silicon alloy for maximum strength and dependability
• Wiseco offers a complete range of popular piston models and years for both trail and racing applications

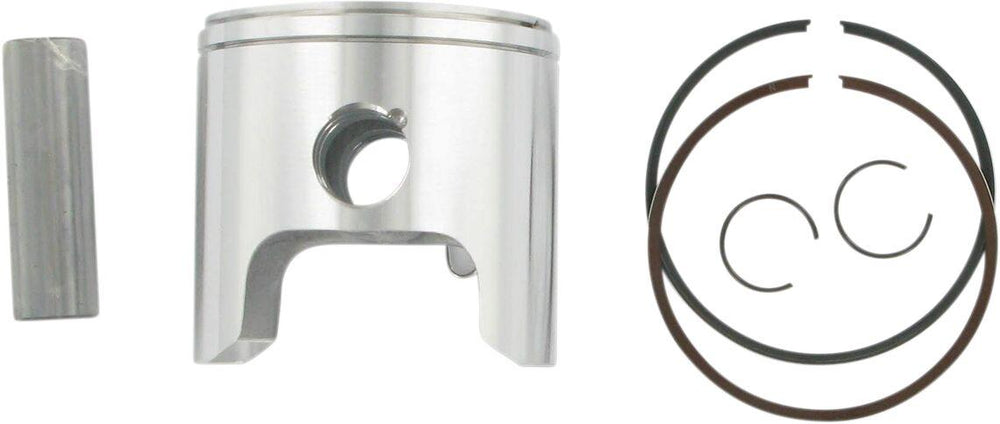

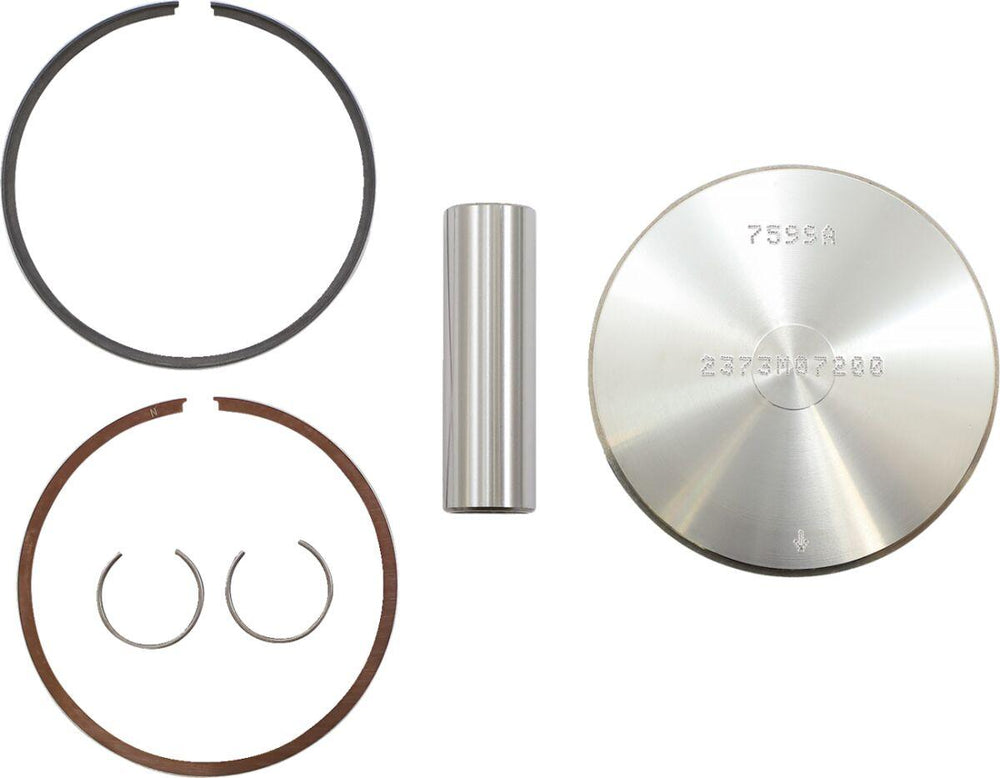

• Kit includes piston, rings, circlips and wrist pin
For Rotax, 253, 503, 536, and 537 engine types. Fits cast iron bore cylinders. Kit Includes: • 1x Piston • 1x Ring Set #2835LK • 1x Wrist Pin #S513 • 1x Circlip Set #CW18

Specifications:

• Bore - Oversize Metric: Standard
• Bore - Oversize: Standard
• Bore Size: 72.00 mm
• Displacement: 248 cc| 269 cc| 497 cc| 503 cc| 521 cc
• Engine Type: 2-Stroke
• Model: Pro-Lite
• Piston Diameter Metric: 71.90 mm
• Piston Diameter: 71.90 mm
• Piston Material: 4032 Aluminum Alloy
• Product Name: Piston Kit
• Skirt Coating: ArmorGlide®
• Stroke Length: 61.00 mm| 64.00 mm| 66.00 mm

To fit:

• SKI-DOO (BRP) FORMULA 520 1987 Plus All Models
• SKI-DOO (BRP) FORMULA PLUS 520 1988 All Models
• SKI-DOO (BRP) FORMULA PLUS 520 1989 LT All Models
• SKI-DOO (BRP) FORMULA PLUS 520 1989 All Models
• SKI-DOO (BRP) FORMULA PLUS 520 1990 LT 2 All Models
• SKI-DOO (BRP) FORMULA PLUS 520 1990 LT All Models
• SKI-DOO (BRP) FORMULA PLUS 520 1990 All Models
• SKI-DOO (BRP) FORMULA PLUS 520 1991 XTC E All Models
• SKI-DOO (BRP) FORMULA PLUS 520 1991 XTC All Models
• SKI-DOO (BRP) FORMULA PLUS 520 1991 All Models
• SKI-DOO (BRP) FORMULA PLUS E 1991 All Models
• SKI-DOO (BRP) SAFARI 503 1988 R All Models
• SKI-DOO (BRP) SAFARI 503 1988 All Models
• SKI-DOO (BRP) SAFARI 520 1986 Grand Luxe LC All Models
• SKI-DOO (BRP) SKANDIC 2 503 1993 R Slt All Models
• SKI-DOO (BRP) SKANDIC 2 503 1993 All Models
• SKI-DOO (BRP) SKANDIC 2 503 1994 R Slt All Models
• SKI-DOO (BRP) SKANDIC 2 503 1994 All Models
• SKI-DOO (BRP) SKANDIC 503 1987 All Models
• SKI-DOO (BRP) FORMULA 520 1986 Plus All Models

Manufacturer part number: W2373M07200

View all Wiseco. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Wiseco Piston Kit For Ski-Doo (BRP) FORMULA 520 1986-1987 Standard
