Product description

The Wiseco Piston kit For Honda XR600R 1985-2000 +0.50 mm is part of the latest collection from Wiseco.

Features:

• Designed and built for 4 stroke engine models

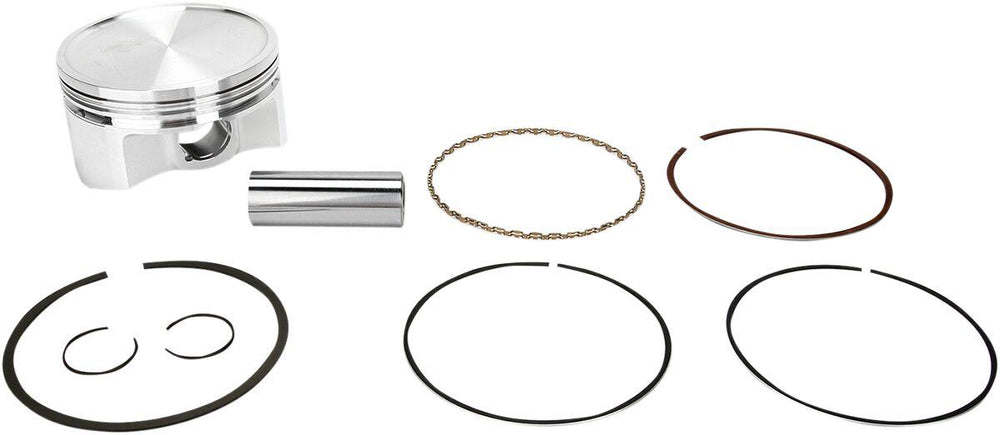

• Kit includes piston, piston rings, wrist pin(s) and circlips
• Made in the USA
Will fit '88-'90 XR600R with Nikasil bore cylinder. Cylinder re-sleeving or replating required. Kit Includes: • 1x Piston • 1x Ring Set #3839XH • 1x Wrist Pin #S327 • 1x Circlip Set #CW24

Specifications:

• Bore - Oversize Metric: +0.50 mm
• Bore - Oversize: +0.50 mm
• Bore Size: 97.50 mm
• Compression Ratio Imperial: 9.0
• Compression Ratio: 9.0
• Displacement: 591 cc
• Engine Type: 4-Stroke
• Model: Forged Series
• Piston Diameter Metric: 97.42 mm
• Piston Diameter: 97.42 mm
• Piston Head Shape: Radial
• Piston Material: Forged 2618 Aluminum

To fit:

• HONDA XR 600 R 1986 All Models
• HONDA XR 600 R 1987 All Models
• HONDA XR 600 R 1988 All Models
• HONDA XR 600 R 1989 All Models
• HONDA XR 600 R 1990 All Models
• HONDA XR 600 R 1991 All Models
• HONDA XR 600 R 1992 All Models
• HONDA XR 600 R 1993 All Models
• HONDA XR 600 R 1994 All Models
• HONDA XR 600 R 1995 All Models
• HONDA XR 600 R 1996 All Models
• HONDA XR 600 R 1997 All Models
• HONDA XR 600 R 1998 All Models
• HONDA XR 600 R 1999 All Models
• HONDA XR 600 R 2000 All Models
• HONDA XR 600 R 1985 All Models

Manufacturer part number: 4577M09750

View all Wiseco. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Wiseco Piston kit For Honda XR600R 1985-2000 +0.50 mm
