Product description

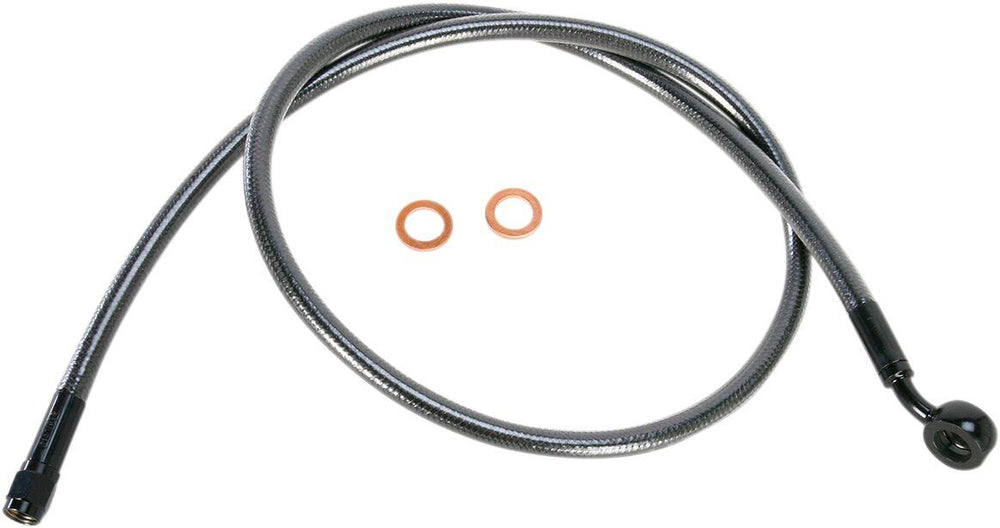

The Magnum Shielding Designer Series ABS-Specific Brake Hose Kit For Harley Davidson FLD 1690 2012-2014 Front/Upper 91.5 cm (36") - Black/Black Pearl is part of the latest collection from Magnum Shielding.

Features:

• DuPont™ and Kevlar® are trademarks or registered trademarks of E.I. du Pont de Nemours and Company.
• Manufactured with an enhanced construction designed to be compatible with Harley-Davidson ABS requirements for stock and alternate length brake lines - designed to follow the same routing path as OEM lines
• Brake kit consists of a direct fit lower assembly used in conjunction with alternative length upper lines

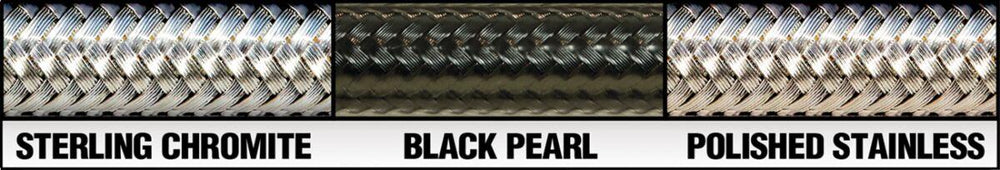

• Braid color and weave match all MAGNUM control cables and brake lines - Crystal clear outer jacket offers exceptional protection against scuffing paint or chrome and will never discolor
• Brake lines are constructed with PTFE inner tubing, DuPont™ Kevlar® aramid fiber, premium Signature Magnum braids and an outer PVC jacket to greatly reduce line expansion
• Upper, lower, mid brake line and adapter kits are sold separately to for a perfect fit
• Assembled in the U.S.A.
• Single disc Dyna and Sportster models use two kits – one upper and one lower.
• Softail models utilize 3 kits (except '18+ dual disc), with the lower being optional on all. Upper kits are required for handlebar changes; by using either an upper brake line adapter or for '11 - '17 Softail models, the optional ABS Lower Brake Line Kit which includes the adapter.
• Adapter for Softail models allows the upper brake line to complete the connection from the ABS controller ('11 - '17) or lower brake line ('18+) to the master cylinder
• If replacing the stock lower brake line assembly on '18+ dual disc Softails, an adapter is NOT needed. Using AN-3 fittings, the upper line connects directly to the Magnum lower assembly
• Dual disc Touring models use three kits - one upper, one lower and one mid-line.
• Trike models use two kits - one upper and one mid-line. No lower is available.
• A Designer mid-line and upper line is required for all Touring and Trike models with ABS. The mid-line connects to the upper brake line in the fairing or nacelle and completes the routing from the master cylinder to the ABS controller. Lower kit is optional.
• Non-stock applications require taking a measurement for upper brake line length and banjo angle to ensure correct fitment (see How to Order).
• Harley-Davidson motorcycles equipped with ABS (anti-lock brake system) require ABS specific upper and lower brake line kits. Failure to do so may result in compromised anti-lock braking ability. Magnum Shielding upper brake line kits manufactured specifically for these applications are identified with the letters “ABS” printed directly on the brake hose.
• Upper line length for Softail, Dyna, and '14+ Sportster models is determined by using your stock OE master cylinder brake line as a guide. Pull the rubber boot back and measure from the point at which the soft, flexible line enters the crimp collar on the lower portion. Follow the brake line routing up to your master cylinder (see diagrams below).
• '18+ Softail – Upper line replacement when reusing the stock lower brake line. (adapter required) Lengths are determined by using the stock master cylinder line for a guide. Measure from the lower brake line manifold where the upper line attaches, up to the master cylinder. From that measurement subtract 1.5” for the adapter and round up to the next number to determine upper line length (see diagram below).
• '18+ Softail Single Disc Upper and Lower line replacement requires an adapter (3 kits).
• Adapter is NOT needed when replacing both the Upper and Lower '18+ Softail Dual Disc brake lines. (2 Kits) The upper line connects directly to the Magnum Designer dual disc lower brake line. Follow the above instruction without subtracting 1.5” for the adapter. Rounded up, the length measured will be correct.
• Upper line length for Touring and Trike models is measured using the 49" mid-line as a reference to determine additional line length needed to complete the routing from the ABS controller to the master cylinder. That measurement will be your upper line length.

Specifications:

• Color/Finish: Black| Black Pearl
• For Braking System: with ABS
• Length: 91.5 cm (36")
• Material: Stainless Steel
• Model: Designer Series
• Mounting Position: Front| Upper
• Product Name: Brake Line
• Type: Alternate Length
• Units: Each
• Upper Banjo Fitting: 7/16" 35° Banjo Fitting

To fit:

• Harley Davidson FLD 1690 ABS 2012 Dyna Switchback All Models
• Harley Davidson FLD 1690 ABS 2013 Dyna Switchback All Models
• Harley Davidson FLD 1690 ABS 2014 Dyna Switchback All Models
• Harley Davidson FLSTC 1584 ABS 2011 Heritage Softail Classic All Models
• Harley Davidson FLSTC 1690 ABS 2012 Heritage Softail Classic All Models
• Harley Davidson FLSTC 1690 ABS 2013 Heritage Softail Classic 110th Anniversary All Models
• Harley Davidson FLSTC 1690 ABS 2013 Heritage Softail Classic All Models
• Harley Davidson FLSTC 1690 ABS 2014 Heritage Softail Classic All Models
• Harley Davidson FLSTFB 1584 ABS 2011 Fat Boy Lo American Models
• Harley Davidson FLSTFB 1584 ABS 2011 Fat Boy Special European Models
• Harley Davidson FLSTFB 1690 ABS 2012 Fat Boy Lo American Models
• Harley Davidson FLSTFB 1690 ABS 2012 Fat Boy Special European Models
• Harley Davidson FLSTFB 1690 ABS 2013 Fat Boy Lo 110th Anniversary American Models
• Harley Davidson FLSTFB 1690 ABS 2013 Fat Boy Lo American Models
• Harley Davidson FLSTFB 1690 ABS 2013 Fat Boy Special 110th Anniversary European Models
• Harley Davidson FLSTFB 1690 ABS 2013 Fat Boy Special European Models
• Harley Davidson FLSTFB 1690 ABS 2014 Fat Boy Lo American Models
• Harley Davidson FLSTFB 1690 ABS 2014 Fat Boy Special European Models
• Harley Davidson FLSTF 1584 ABS 2011 Fat Boy All Models
• Harley Davidson FLSTF 1690 ABS 2012 Fat Boy All Models
• Harley Davidson FLSTF 1690 ABS 2013 Fat Boy All Models
• Harley Davidson FLSTF 1690 ABS 2014 Fat Boy All Models
• Harley Davidson FLSTNSE 1800 ABS 2014 Softail Deluxe CVO All Models
• Harley Davidson FLSTN 1584 ABS 2011 Softail Deluxe All Models
• Harley Davidson FLSTN 1690 ABS 2012 Softail Deluxe All Models
• Harley Davidson FLSTN 1690 ABS 2013 Softail Deluxe All Models
• Harley Davidson FLSTN 1690 ABS 2014 Softail Deluxe All Models
• Harley Davidson FLSTSE2 1800 ABS 2011 Softail Convertible CVO All Models
• Harley Davidson FLSTSE3 1800 ABS 2012 Softail Convertible CVO All Models
• Harley Davidson FLS 1690 ABS 2012 Softail Slim All Models
• Harley Davidson FLS 1690 ABS 2013 Softail Slim All Models
• Harley Davidson FLS 1690 ABS 2014 Softail Slim All Models
• Harley Davidson FXCWC 1584 ABS 2011 Rocker C All Models
• Harley Davidson FXDBA 1584 ABS 2013 Dyna Street Bob Limited All Models
• Harley Davidson FXDBA 1690 ABS 2013 Dyna Street Bob Limited All Models
• Harley Davidson FXDBB 1690 ABS 2014 Dyna Street Bob Special All Models
• Harley Davidson FXDBP 1690 ABS 2013 Dyna Street Bob Factory Custom All Models
• Harley Davidson FXDBP 1690 ABS 2014 Dyna Street Bob Factory Custom All Models
• Harley Davidson FXDB 1584 ABS 2012 Dyna Street Bob All Models
• Harley Davidson FXDB 1584 ABS 2013 Dyna Street Bob All Models
• Harley Davidson FXDB 1690 ABS 2014 Dyna Street Bob All Models
• Harley Davidson FXDC 1584 ABS 2012 Dyna Super Glide Custom All Models
• Harley Davidson FXDC 1584 ABS 2013 Dyna Super Glide Custom 110th Anniversary All Models
• Harley Davidson FXDC 1584 ABS 2013 Dyna Super Glide Custom All Models
• Harley Davidson FXDC 1690 ABS 2014 Dyna Super Glide Custom All Models
• Harley Davidson FXDF 1584 ABS 2012 Dyna Fat Bob All Models
• Harley Davidson FXDF 1690 ABS 2012 Dyna Fat Bob All Models
• Harley Davidson FXDF 1690 ABS 2013 Dyna Fat Bob All Models
• Harley Davidson FXDF 1690 ABS 2014 Dyna Fat Bob All Models
• Harley Davidson FXDL 1690 ABS 2014 Dyna Low Rider All Models
• Harley Davidson FXDWG 1584 ABS 2012 Dyna Wide Glide European Models
• Harley Davidson FXDWG 1690 ABS 2012 Dyna Wide Glide American Models
• Harley Davidson FXDWG 1690 ABS 2013 Dyna Wide Glide All Models
• Harley Davidson FXDWG 1690 ABS 2014 Dyna Wide Glide All Models
• Harley Davidson FXSBSE2 1800 ABS 2014 Breakout CVO All Models
• Harley Davidson FXSBSE 1800 ABS 2013 Breakout CVO All Models
• Harley Davidson FXSB 1690 ABS 2013 Breakout All Models
• Harley Davidson FXSB 1690 ABS 2014 Breakout All Models
• Harley Davidson FXS 1584 ABS 2011 Blackline All Models
• Harley Davidson FXS 1584 ABS 2012 Blackline European Models
• Harley Davidson FXS 1690 ABS 2012 Blackline American Models
• Harley Davidson FXS 1690 ABS 2013 Blackline All Models

Manufacturer part number: AS47936

View all Magnum Shielding. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Magnum Shielding Designer Series ABS-Specific Brake Hose Kit For Harley Davidson FLD 1690 2012-2014 Front/Upper 91.5 cm (36") - Black/Black Pearl
