Product description

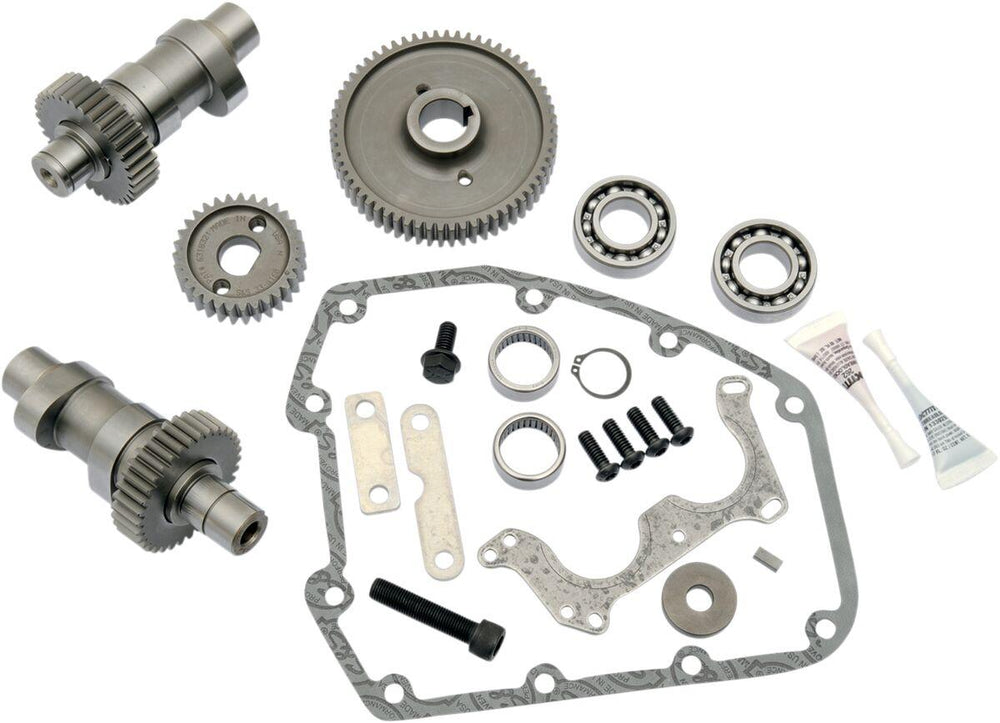

The S&S Cycle 509G Gear Drive Camshaft Kit For Harley Davidson FLHR 1450 1999-2003 is part of the latest collection from S&S Cycle.

Features:

• Bolt in cams for 88 CID engines with stock compression ratios
• Increases valve timing accuracy by eliminating timing chain lash and loosely fit stock chain drive
• Reverses the rear cam's direction of rotation, providing additional operating clearance between cam lobes; resulting in higher cam lifts that are possible with the gear kit
• Material must be removed from inner surface of the stock gear cover to install
• S&S recommends that adjustable pushrod/cover kit to be used
• Cam bearings and gaskets must be replaced when installing new cams
• Lowers loft allows cams to be bolted into 96"-106" '06 engines with stock valve springs
• Strongest from 1000-4500 rpm
• 180 psi cranking compression; no need for compression releases
• A hydraulic press and other professional level tools are required to install
• Kit includes cams, inner gears, outer drive gears, inner and outer bearings, gaskets and instructions
• Made in the USA
• Installer must check coil bind, valve to valve clearance and valve to piston clearance.
• Due to the inherent characteristics of gear drives, you may experience more valve train noise.
• EU: 12,41 Bar cranking compression; no need for compression releases
Not for '06 Dyna.

Specifications:

• Application: Exhaust| Intake
• Exhaust Close: 11°
• Exhaust Duration: 237°
• Exhaust Lift at TDC: 0.140"
• Exhaust Lift: 0.509"
• Exhaust Lobe Centerline: 107.5°
• Exhaust Open: 46°
• Grind: 509 Series
• Intake Close: 18°
• Intake Duration: 216°
• Intake Lift at TDC: 0.174"
• Intake Lift: 0.509"

To fit:

• Harley Davidson FLHRCI 1450 EFI 1999 Road King Classic All Models
• Harley Davidson FLHRCI 1450 EFI 2000 Road King Classic All Models
• Harley Davidson FLHRCI 1450 EFI 2001 Road King Classic All Models
• Harley Davidson FLHRCI 1450 EFI 2002 Road King Classic All Models
• Harley Davidson FLHRCI 1450 EFI 2003 Road King Classic All Models
• Harley Davidson FLHRCI 1450 EFI 2004 Road King Classic All Models
• Harley Davidson FLHRCI 1450 EFI 2005 Road King Classic All Models
• Harley Davidson FLHRCI 1450 EFI 2006 Road King Classic All Models
• Harley Davidson FLHRC 1450 2004 Road King Classic American Models
• Harley Davidson FLHRI 1450 EFI 1999 Road King American Models
• Harley Davidson FLHRI 1450 EFI 2000 Road King American Models
• Harley Davidson FLHRI 1450 EFI 2003 Road King American Models
• Harley Davidson FLHRI 1450 EFI 2004 Road King All Models
• Harley Davidson FLHRI 1450 EFI 2005 Road King All Models
• Harley Davidson FLHRI 1450 EFI 2006 Road King All Models
• Harley Davidson FLHRSEI2 1690 2003 Road King Screamin Eagle All Models
• Harley Davidson FLHRSEI 1550 2002 Road King Screamin Eagle All Models
• Harley Davidson FLHRSI 1450 EFI 2004 Road King Custom All Models
• Harley Davidson FLHRSI 1450 EFI 2005 Road King Custom All Models
• Harley Davidson FLHRSI 1450 EFI 2006 Road King Custom All Models
• Harley Davidson FLHRS 1450 2004 Road King Custom American Models
• Harley Davidson FLHRS 1450 2005 Road King Custom American Models
• Harley Davidson FLHRS 1450 2006 Road King Custom American Models
• Harley Davidson FLHR 1450 1999 Road King All Models
• Harley Davidson FLHR 1450 2000 Road King All Models
• Harley Davidson FLHR 1450 2001 Road King All Models
• Harley Davidson FLHR 1450 2002 Road King All Models
• Harley Davidson FLHR 1450 2003 Road King All Models
• Harley Davidson FLHR 1450 2004 Road King American Models
• Harley Davidson FLHR 1450 2005 Road King American Models
• Harley Davidson FLHR 1450 2006 Road King American Models
• Harley Davidson FLHTCI 1450 EFI 1999 Electra Glide Classic American Models
• Harley Davidson FLHTCI 1450 EFI 2000 Electra Glide Classic American Models
• Harley Davidson FLHTCI 1450 EFI 2003 Electra Glide Classic American Models
• Harley Davidson FLHTCI 1450 EFI 2004 Electra Glide Classic All Models
• Harley Davidson FLHTCI 1450 EFI 2005 Electra Glide Classic American Models
• Harley Davidson FLHTCI 1450 EFI 2006 Electra Glide Classic American Models
• Harley Davidson FLHTCSE2 1690 EFI 2005 Electra Glide Screamin Eagle All Models
• Harley Davidson FLHTCUI 1450 EFI 1999 Electra Glide Ultra Classic All Models
• Harley Davidson FLHTCUI 1450 EFI 2000 Electra Glide Ultra Classic All Models
• Harley Davidson FLHTCUI 1450 EFI 2001 Electra Glide Ultra Classic All Models
• Harley Davidson FLHTCUI 1450 EFI 2002 Electra Glide Ultra Classic All Models
• Harley Davidson FLHTCUI 1450 EFI 2003 Electra Glide Ultra Classic All Models
• Harley Davidson FLHTCUI 1450 EFI 2004 Electra Glide Ultra Classic All Models
• Harley Davidson FLHTCUI 1450 EFI 2005 Electra Glide Ultra Classic All Models
• Harley Davidson FLHTCUI 1450 EFI 2006 Electra Glide Ultra Classic All Models
• Harley Davidson FLHTCUSE 1690 2006 Electra Glide Ultra Classic Screamin Eagle All Models
• Harley Davidson FLHTC 1450 2002 Electra Glide Classic All Models
• Harley Davidson FLHTC 1450 2003 Electra Glide Classic All Models
• Harley Davidson FLHTC 1450 2004 Electra Glide Classic All Models
• Harley Davidson FLHTC 1450 2005 Electra Glide Classic American Models
• Harley Davidson FLHTI 1450 EFI 2004 Electra Glide All Models
• Harley Davidson FLHTI 1450 EFI 2005 Electra Glide All Models
• Harley Davidson FLHTI 1450 EFI 2006 Electra Glide All Models
• Harley Davidson FLHT 1450 1999 Electra Glide All Models
• Harley Davidson FLHT 1450 2000 Electra Glide All Models
• Harley Davidson FLHT 1450 2001 Electra Glide All Models
• Harley Davidson FLHT 1450 2002 Electra Glide All Models
• Harley Davidson FLHT 1450 2003 Electra Glide All Models
• Harley Davidson FLHT 1450 2004 Electra Glide American Models
• Harley Davidson FLHT 1450 2005 Electra Glide American Models
• Harley Davidson FLHT 1450 2006 Electra Glide American Models
• Harley Davidson FLHXI 1450 EFI 2006 Street Glide All Models
• Harley Davidson FLHX 1450 2006 Street Glide American Models
• Harley Davidson FLSTCI 1450 EFI 2001 Heritage Softail Classic All Models
• Harley Davidson FLSTCI 1450 EFI 2002 Heritage Softail Classic All Models
• Harley Davidson FLSTCI 1450 EFI 2003 Heritage Softail Classic All Models
• Harley Davidson FLSTCI 1450 EFI 2004 Heritage Softail Classic All Models
• Harley Davidson FLSTCI 1450 EFI 2005 Heritage Softail Classic All Models
• Harley Davidson FLSTCI 1450 EFI 2006 Heritage Softail Classic All Models
• Harley Davidson FLSTC 1450 2000 Heritage Softail Classic All Models
• Harley Davidson FLSTC 1450 2001 Heritage Softail Classic All Models
• Harley Davidson FLSTC 1450 2002 Heritage Softail Classic All Models
• Harley Davidson FLSTC 1450 2003 Heritage Softail Classic All Models
• Harley Davidson FLSTC 1450 2004 Heritage Softail Classic American Models
• Harley Davidson FLSTC 1450 2005 Heritage Softail Classic American Models
• Harley Davidson FLSTC 1450 2006 Heritage Softail Classic American Models
• Harley Davidson FLSTFI 1450 EFI 2001 Fat Boy All Models
• Harley Davidson FLSTFI 1450 EFI 2002 Fat Boy All Models
• Harley Davidson FLSTFI 1450 EFI 2003 Fat Boy All Models
• Harley Davidson FLSTFI 1450 EFI 2004 Fat Boy All Models
• Harley Davidson FLSTFI 1450 EFI 2005 Fat Boy All Models
• Harley Davidson FLSTFI 1450 EFI 2006 Fat Boy All Models
• Harley Davidson FLSTFI 1550 EFI 2005 Fat Boy 15th Anniversary All Models
• Harley Davidson FLSTFSE2 1690 2006 Fat Boy Screamin Eagle All Models
• Harley Davidson FLSTFSE 1690 2005 Fat Boy Screamin Eagle All Models
• Harley Davidson FLSTF 1450 2000 Fat Boy All Models
• Harley Davidson FLSTF 1450 2001 Fat Boy All Models
• Harley Davidson FLSTF 1450 2002 Fat Boy All Models
• Harley Davidson FLSTF 1450 2003 Fat Boy All Models
• Harley Davidson FLSTF 1450 2004 Fat Boy American Models
• Harley Davidson FLSTF 1450 2005 Fat Boy American Models
• Harley Davidson FLSTF 1450 2006 Fat Boy American Models
• Harley Davidson FLSTI 1450 EFI 2006 Heritage Softail All Models
• Harley Davidson FLSTNI 1450 EFI 2005 Softail Deluxe All Models
• Harley Davidson FLSTNI 1450 EFI 2006 Softail Deluxe All Models
• Harley Davidson FLSTN 1450 2005 Softail Deluxe American Models
• Harley Davidson FLSTN 1450 2006 Softail Deluxe American Models
• Harley Davidson FLSTSCI 1450 EFI 2005 Softail Springer Classic All Models
• Harley Davidson FLSTSCI 1450 EFI 2006 Softail Springer Classic All Models
• Harley Davidson FLSTSC 1450 2005 Softail Springer Classic American Models
• Harley Davidson FLSTSC 1450 2006 Softail Springer Classic All Models
• Harley Davidson FLSTSI 1450 EFI 2003 Heritage Softail Springer American Models
• Harley Davidson FLSTS 1450 2000 Heritage Softail Springer All Models
• Harley Davidson FLSTS 1450 2001 Heritage Softail Springer All Models
• Harley Davidson FLSTS 1450 2002 Heritage Softail Springer All Models
• Harley Davidson FLSTS 1450 2003 Heritage Softail Springer All Models
• Harley Davidson FLST 1450 2006 Heritage Softail American Models
• Harley Davidson FLTRI 1450 EFI 1999 Road Glide American Models
• Harley Davidson FLTRI 1450 EFI 2000 Road Glide American Models
• Harley Davidson FLTRI 1450 EFI 2001 Road Glide American Models
• Harley Davidson FLTRI 1450 EFI 2002 Road Glide American Models
• Harley Davidson FLTRI 1450 EFI 2003 Road Glide American Models
• Harley Davidson FLTRI 1450 EFI 2004 Road Glide American Models
• Harley Davidson FLTRI 1450 EFI 2005 Road Glide American Models
• Harley Davidson FLTRI 1450 EFI 2006 Road Glide American Models
• Harley Davidson FLTRSEI2 1550 2001 Road Glide Screamin Eagle American Models
• Harley Davidson FLTRSEI 1550 2000 Road Glide Screamin Eagle All Models
• Harley Davidson FLTR 1450 1999 Road Glide American Models
• Harley Davidson FLTR 1450 2000 Road Glide American Models
• Harley Davidson FLTR 1450 2001 Road Glide American Models
• Harley Davidson FLTR 1450 2002 Road Glide American Models
• Harley Davidson FXDCI 1450 EFI 2005 Dyna Super Glide Custom All Models
• Harley Davidson FXDC 1450 2005 Dyna Super Glide Custom American Models
• Harley Davidson FXDI 1450 EFI 2004 Dyna Super Glide All Models
• Harley Davidson FXDI 1450 EFI 2005 Dyna Super Glide American Models
• Harley Davidson FXDLI 1450 EFI 2004 Dyna Low Rider All Models
• Harley Davidson FXDLI 1450 EFI 2005 Dyna Low Rider All Models
• Harley Davidson FXDL 1450 1999 Dyna Low Rider All Models
• Harley Davidson FXDL 1450 2000 Dyna Low Rider All Models
• Harley Davidson FXDL 1450 2001 Dyna Low Rider All Models
• Harley Davidson FXDL 1450 2002 Dyna Low Rider All Models
• Harley Davidson FXDL 1450 2003 Dyna Low Rider All Models
• Harley Davidson FXDL 1450 2004 Dyna Low Rider All Models
• Harley Davidson FXDL 1450 2005 Dyna Low Rider All Models
• Harley Davidson FXDWG2 1450 2001 Dyna Wide Glide Limited Edition All Models
• Harley Davidson FXDWG3 1450 2002 Dyna Wide Glide Limited Edition All Models
• Harley Davidson FXDWGI 1450 EFI 2004 Dyna Wide Glide All Models
• Harley Davidson FXDWGI 1450 EFI 2005 Dyna Wide Glide All Models
• Harley Davidson FXDWG 1450 1999 Dyna Wide Glide All Models
• Harley Davidson FXDWG 1450 2000 Dyna Wide Glide All Models
• Harley Davidson FXDWG 1450 2001 Dyna Wide Glide All Models
• Harley Davidson FXDWG 1450 2002 Dyna Wide Glide All Models
• Harley Davidson FXDWG 1450 2003 Dyna Wide Glide All Models
• Harley Davidson FXDWG 1450 2004 Dyna Wide Glide American Models
• Harley Davidson FXDWG 1450 2005 Dyna Wide Glide American Models
• Harley Davidson FXDXI 1450 EFI 2004 Dyna Super Glide Sport All Models
• Harley Davidson FXDXI 1450 EFI 2005 Dyna Super Glide Sport All Models
• Harley Davidson FXDXT 1450 2001 Dyna Super Glide T-Sport All Models
• Harley Davidson FXDXT 1450 2002 Dyna Super Glide T-Sport All Models
• Harley Davidson FXDXT 1450 2003 Dyna Super Glide T-Sport All Models
• Harley Davidson FXDX 1450 1999 Dyna Super Glide Sport All Models
• Harley Davidson FXDX 1450 2000 Dyna Super Glide Sport All Models
• Harley Davidson FXDX 1450 2001 Dyna Super Glide Sport All Models
• Harley Davidson FXDX 1450 2002 Dyna Super Glide Sport All Models
• Harley Davidson FXDX 1450 2003 Dyna Super Glide Sport All Models
• Harley Davidson FXDX 1450 2004 Dyna Super Glide Sport American Models
• Harley Davidson FXD 1450 1999 Dyna Super Glide All Models
• Harley Davidson FXD 1450 2000 Dyna Super Glide All Models
• Harley Davidson FXD 1450 2001 Dyna Super Glide All Models
• Harley Davidson FXD 1450 2002 Dyna Super Glide All Models
• Harley Davidson FXD 1450 2003 Dyna Super Glide All Models
• Harley Davidson FXD 1450 2004 Dyna Super Glide American Models
• Harley Davidson FXD 1450 2005 Dyna Super Glide American Models
• Harley Davidson FXSTBI 1450 EFI 2003 Softail Night Train American Models
• Harley Davidson FXSTBI 1450 EFI 2004 Softail Night Train All Models
• Harley Davidson FXSTBI 1450 EFI 2005 Softail Night Train All Models
• Harley Davidson FXSTBI 1450 EFI 2006 Softail Night Train All Models
• Harley Davidson FXSTB 1450 2000 Softail Night Train All Models
• Harley Davidson FXSTB 1450 2001 Softail Night Train All Models
• Harley Davidson FXSTB 1450 2002 Softail Night Train All Models
• Harley Davidson FXSTB 1450 2003 Softail Night Train All Models
• Harley Davidson FXSTB 1450 2004 Softail Night Train American Models
• Harley Davidson FXSTB 1450 2005 Softail Night Train American Models
• Harley Davidson FXSTB 1450 2006 Softail Night Train American Models
• Harley Davidson FXSTDI 1450 EFI 2001 Softail Deuce All Models
• Harley Davidson FXSTDI 1450 EFI 2002 Softail Deuce All Models
• Harley Davidson FXSTDI 1450 EFI 2003 Softail Deuce All Models
• Harley Davidson FXSTDI 1450 EFI 2004 Softail Deuce All Models
• Harley Davidson FXSTDI 1450 EFI 2005 Softail Deuce All Models
• Harley Davidson FXSTDI 1450 EFI 2006 Softail Deuce American Models
• Harley Davidson FXSTDSE2 1550 2004 Softail Deuce Screamin Eagle American Models
• Harley Davidson FXSTDSE 1550 2003 Softail Deuce Screamin Eagle American Models
• Harley Davidson FXSTD 1450 2000 Softail Deuce All Models
• Harley Davidson FXSTD 1450 2001 Softail Deuce All Models
• Harley Davidson FXSTD 1450 2002 Softail Deuce All Models
• Harley Davidson FXSTD 1450 2003 Softail Deuce All Models
• Harley Davidson FXSTD 1450 2004 Softail Deuce American Models
• Harley Davidson FXSTD 1450 2005 Softail Deuce American Models
• Harley Davidson FXSTD 1450 2006 Softail Deuce American Models
• Harley Davidson FXSTI 1450 EFI 2003 Softail American Models
• Harley Davidson FXSTI 1450 EFI 2004 Softail All Models
• Harley Davidson FXSTI 1450 EFI 2005 Softail All Models
• Harley Davidson FXSTI 1450 EFI 2006 Softail All Models
• Harley Davidson FXSTSI 1450 EFI 2003 Softail Springer American Models
• Harley Davidson FXSTSI 1450 EFI 2004 Softail Springer All Models
• Harley Davidson FXSTSI 1450 EFI 2005 Softail Springer All Models
• Harley Davidson FXSTS 1450 2000 Softail Springer All Models
• Harley Davidson FXSTS 1450 2001 Softail Springer All Models
• Harley Davidson FXSTS 1450 2002 Softail Springer All Models
• Harley Davidson FXSTS 1450 2003 Softail Springer All Models
• Harley Davidson FXSTS 1450 2004 Softail Springer American Models
• Harley Davidson FXSTS 1450 2005 Softail Springer American Models
• Harley Davidson FXST 1450 2000 Softail All Models
• Harley Davidson FXST 1450 2001 Softail All Models
• Harley Davidson FXST 1450 2002 Softail All Models
• Harley Davidson FXST 1450 2003 Softail All Models
• Harley Davidson FXST 1450 2004 Softail American Models
• Harley Davidson FXST 1450 2005 Softail American Models
• Harley Davidson FXST 1450 2006 Softail American Models

Manufacturer part number: 330-0017

View all S&S Cycle. View all Parts and spares.

Contents

Your package will include the following:

• 1 X S&S Cycle 509G Gear Drive Camshaft Kit For Harley Davidson FLHR 1450 1999-2003
