Product description

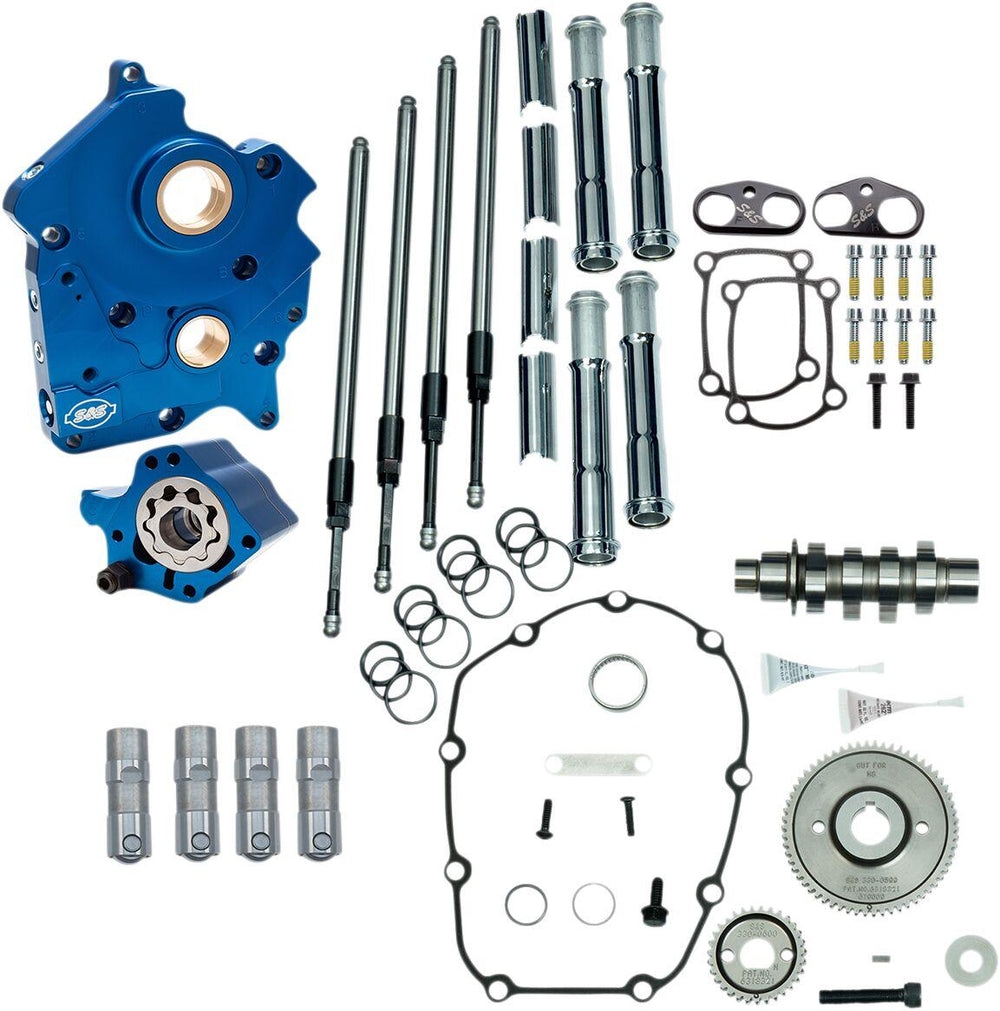

The S&S Cycle M8 Cam Chest Kit For Harley Davidson FLDE 1750 2018-2020 Gear 475G is part of the latest collection from S&S Cycle.

Features:

• All parts in each kit are matched to ensure superior quality, fit, finish and performance
• Oil pump and cam plate are precision-machined from billet aluminum with a blue anodized finish
• Passage plugs removable for servicing
• Independent scavenge sections for the flywheel cavity and cam chest
• Debris screens in both scavenge pickups
• Increased oil flow capacity on both the feed and scavenge sides
• Adjustable Pressure Relief Valve is adjustable with unit installed in engine
• Magnet in cam chest to help to stop debris from entering oil pump
• S&S Quickee Pushrods with finished pushrod tubes
• S&S premium tappets
• Billet aluminum tappet cuffs have a hard-anodized black coating and are stronger than stock to eliminate distortion
• Improved tappet stability in high-lift and high-rpm situations
• Provides improved cam timing accuracy and eliminates the stock cam chain tensioner
• Includes outer drive gears, all gaskets, bearings, and hardware required for a complete installation
• Made in the USA
475 is a bolt-in 100 horsepower cam. Kit Includes: • Oil Pump Screw Kit • 475G Camshaft • Cam Drive Gear Kit • 31 Tooth Pinion Gear • Camshaft Installation Kit • Quickee Pushrod Kit with Chrome Covers • Tappet Cuffs Lifter Guide • 3" S&S® Blue and White Logo Decal • Cam Plate Support Assembly • Oil Cooled Oil Pump Assembly • Hydraulic Precision Tappet Set • 1 oz Torco® Engine Assembly Lube

Specifications:

• Application: Oil Cooled
• Exhaust Close: 28.5° Front. 20.2° Rear
• Exhaust Duration: 263.9° Front. 252.5° Rear
• Exhaust Lift at TDC: 0.208" Front. 0.170" Rear
• Exhaust Lift: 0.475"
• Exhaust Lobe Centerline: 103.5° Front. 106.0° Rear
• Exhaust Open: 55.5° Front. 52.2° Rear
• Features: Chrome Pushrod Tubes
• Grind: 475G
• Intake Close: 27.2° Front. 31.2° Rear
• Intake Duration: 213.5° Front. 213.5° Rear
• Intake Lift at TDC: 0.107" Front. 0.093" Rear

To fit:

• Harley Davidson FLDE 1750 ABS 2018 Softail Deluxe 107 All Models
• Harley Davidson FLDE 1750 ABS 2019 Softail Deluxe 107 All Models
• Harley Davidson FLDE 1750 ABS 2020 Softail Deluxe 107 All Models
• Harley Davidson FLFBS 1868 ABS 2018 Softail Fat Boy 114 All Models
• Harley Davidson FLFBS 1868 ABS 2018 Softail Fat Boy Anniversary (ANV) 114 All Models
• Harley Davidson FLFBS 1868 ABS 2018 Softail Fat Boy Anniversary (ANX) 114 All Models
• Harley Davidson FLFBS 1868 ABS 2019 Softail Fat Boy 114 All Models
• Harley Davidson FLFBS 1868 ABS 2020 Softail Fat Boy 114 All Models
• Harley Davidson FLFBS 1868 ABS 2021 Softail Fat Boy 114 All Models
• Harley Davidson FLFBS 1868 ABS 2022 Softail Fat Boy 114 All Models
• Harley Davidson FLFBS 1868 ABS 2023 Softail Fat Boy 114 All Models
• Harley Davidson FLFBS 1868 ABS 2024 Softail Fat Boy 114 All Models
• Harley Davidson FLFBS 1923 ABS 2025 Softail Fat Boy 117 All Models
• Harley Davidson FLFB 1750 ABS 2018 Softail Fat Boy 107 All Models
• Harley Davidson FLFB 1750 ABS 2019 Softail Fat Boy 107 All Models
• Harley Davidson FLFB 1750 ABS 2020 Softail Fat Boy 107 All Models
• Harley Davidson FLHCS 1868 ABS 2018 Softail Heritage Classic 114 All Models
• Harley Davidson FLHCS 1868 ABS 2018 Softail Heritage Classic Anniversary 114 All Models
• Harley Davidson FLHCS 1868 ABS 2019 Softail Heritage Classic 114 All Models
• Harley Davidson FLHCS 1868 ABS 2020 Softail Heritage Classic 114 All Models
• Harley Davidson FLHCS 1868 ABS 2021 Softail Heritage Classic 114 All Models
• Harley Davidson FLHCS 1868 ABS 2022 Softail Heritage Classic 114 All Models
• Harley Davidson FLHCS 1868 ABS 2023 Softail Heritage Classic 114 All Models
• Harley Davidson FLHCS 1868 ABS 2024 Softail Heritage Classic 114 All Models
• Harley Davidson FLHCS 1923 ABS 2025 Softail Heritage Classic 117 All Models
• Harley Davidson FLHC 1750 ABS 2018 Softail Heritage Classic 107 All Models
• Harley Davidson FLHC 1750 ABS 2019 Softail Heritage Classic 107 All Models
• Harley Davidson FLHC 1750 ABS 2020 Softail Heritage Classic 107 All Models
• Harley Davidson FLHC 1750 ABS 2021 Softail Heritage Classic 107 All Models
• Harley Davidson FLHC 1750 ABS 2022 Softail Heritage Classic 107 All Models
• Harley Davidson FLHRC 1750 ABS 2017 Road King Classic 107 European Models
• Harley Davidson FLHRC 1750 ABS 2018 Road King Classic 107 European Models
• Harley Davidson FLHRC 1750 ABS 2019 Road King Classic 107 All Models
• Harley Davidson FLHRXS 1750 ABS 2017 Road King Special 107 All Models
• Harley Davidson FLHRXS 1750 ABS 2018 Road King Special 107 All Models
• Harley Davidson FLHRXS 1868 ABS 2019 Road King Special 114 All Models
• Harley Davidson FLHRXS 1868 ABS 2020 Road King Special 114 All Models
• Harley Davidson FLHRXS 1868 ABS 2021 Road King Special 114 All Models
• Harley Davidson FLHRXS 1868 ABS 2022 Road King Special 114 All Models
• Harley Davidson FLHRXS 1868 ABS 2023 Road King Special 114 All Models
• Harley Davidson FLHRXS 1868 ABS 2024 Road King Special 114 All Models
• Harley Davidson FLHRXS 1868 ABS 2025 Road King Special 114 All Models
• Harley Davidson FLHR 1750 ABS 2017 Road King 107 All Models
• Harley Davidson FLHR 1750 ABS 2018 Road King 107 All Models
• Harley Davidson FLHR 1750 ABS 2019 Road King 107 All Models
• Harley Davidson FLHR 1750 ABS 2020 Road King 107 All Models
• Harley Davidson FLHR 1750 ABS 2021 Road King 107 All Models
• Harley Davidson FLHR 1750 ABS 2022 Road King 107 All Models
• Harley Davidson FLHR 1750 2017 Road King 107 American Models
• Harley Davidson FLHR 1750 2018 Road King 107 American Models
• Harley Davidson FLHR 1750 2019 Road King 107 American Models
• Harley Davidson FLHTCUTGSE 1923 ABS 2020 Tri Glide Ultra CVO 117 All Models
• Harley Davidson FLHTCUTGSE 1923 ABS 2021 Tri Glide Ultra CVO 117 All Models
• Harley Davidson FLHTCUTGSE 1923 ABS 2022 Tri Glide CVO 117 All Models
• Harley Davidson FLHTCUTG 1750 ABS 2019 Tri Glide Ultra 107 All Models
• Harley Davidson FLHTCUTG 1750 2017 Trike Tri Glide Ultra Classic 107 All Models
• Harley Davidson FLHTCUTG 1750 2018 Tri Glide Ultra 107 All Models
• Harley Davidson FLHTCUTG 1750 2018 Tri Glide Ultra Anniversary 107 All Models
• Harley Davidson FLHTCUTG 1868 ABS 2020 Tri Glide Ultra 114 All Models
• Harley Davidson FLHTCUTG 1868 ABS 2021 Tri Glide Ultra 114 All Models
• Harley Davidson FLHTCUTG 1868 ABS 2022 Tri Glide Ultra 114 All Models
• Harley Davidson FLHTCUTG 1868 ABS 2023 Tri Glide Ultra 114 All Models
• Harley Davidson FLHTCU 1750 ABS 2019 Electra Glide Ultra Classic 107 All Models
• Harley Davidson FLHT 1750 ABS 2019 Electra Glide Standard 107 All Models
• Harley Davidson FLHT 1750 ABS 2020 Electra Glide Standard 107 All Models
• Harley Davidson FLHT 1750 ABS 2021 Electra Glide Standard 107 American Models
• Harley Davidson FLHT 1750 ABS 2022 Electra Glide Standard 107 American Models
• Harley Davidson FLHXSE 1923 ABS 2022 Street Glide CVO 117 All Models
• Harley Davidson FLHXSE 1977 ABS 2023 Street Glide CVO 121 All Models
• Harley Davidson FLHXST 1923 ABS 2022 Street Glide ST 117 All Models
• Harley Davidson FLHXST 1923 ABS 2023 Street Glide ST 117 All Models
• Harley Davidson FLHXS 1750 ABS 2017 Street Glide Special 107 All Models
• Harley Davidson FLHXS 1750 ABS 2018 Street Glide Special 107 All Models
• Harley Davidson FLHXS 1750 ABS 2018 Street Glide Special Anniversary 107 All Models
• Harley Davidson FLHXS 1868 ABS 2019 Street Glide Special 114 All Models
• Harley Davidson FLHXS 1868 ABS 2020 Street Glide Special 114 All Models
• Harley Davidson FLHXS 1868 ABS 2021 Street Glide Special 114 Arctic Blast Limited All Models
• Harley Davidson FLHXS 1868 ABS 2021 Street Glide Special 114 All Models
• Harley Davidson FLHXS 1868 ABS 2022 Street Glide Special 114 All Models
• Harley Davidson FLHXS 1868 ABS 2023 Street Glide Special 114 All Models
• Harley Davidson FLHXS 1868 ABS 2023 Street Glide Special Anniversary 114 All Models
• Harley Davidson FLHX 1750 ABS 2017 Street Glide 107 American Models
• Harley Davidson FLHX 1750 ABS 2018 Street Glide 107 All Models
• Harley Davidson FLHX 1750 ABS 2018 Street Glide Anniversary 107 All Models
• Harley Davidson FLHX 1750 ABS 2019 Street Glide 107 All Models
• Harley Davidson FLHX 1750 ABS 2020 Street Glide 107 All Models
• Harley Davidson FLHX 1750 ABS 2021 Street Glide 107 American Models
• Harley Davidson FLHX 1750 ABS 2022 Street Glide 107 American Models
• Harley Davidson FLHX 1750 ABS 2023 Street Glide 107 American Models
• Harley Davidson FLHX 1750 2017 Street Glide 107 American Models
• Harley Davidson FLHX 1750 2018 Street Glide 107 American Models
• Harley Davidson FLHX 1750 2019 Street Glide 107 American Models
• Harley Davidson FLHX 1923 ABS 2024 Street Glide 117 All Models
• Harley Davidson FLHX 1923 ABS 2025 Street Glide 117 All Models
• Harley Davidson FLH 1868 ABS 2021 Electra Glide Revival 114 All Models
• Harley Davidson FLI 1868 ABS 2024 Hydra-Glide Revival 114 All Models
• Harley Davidson FLRT 1750 ABS 2019 Freewheeler 107 All Models
• Harley Davidson FLRT 1750 2017 Freewheeler 107 American Models
• Harley Davidson FLRT 1750 2018 Freewheeler 107 All Models
• Harley Davidson FLRT 1868 ABS 2020 Freewheeler 114 All Models
• Harley Davidson FLRT 1868 ABS 2021 Freewheeler 114 All Models
• Harley Davidson FLRT 1868 ABS 2022 Freewheeler 114 All Models
• Harley Davidson FLRT 1868 ABS 2023 Freewheeler 114 All Models
• Harley Davidson FLRT 1868 ABS 2024 Freewheeler 114 All Models
• Harley Davidson FLRT 1868 ABS 2025 Freewheeler 114 All Models
• Harley Davidson FLSB 1750 ABS 2018 Softail Sport Glide 107 All Models
• Harley Davidson FLSB 1750 ABS 2019 Softail Sport Glide 107 All Models
• Harley Davidson FLSB 1750 ABS 2020 Softail Sport Glide 107 All Models
• Harley Davidson FLSB 1750 ABS 2021 Softail Sport Glide 107 All Models
• Harley Davidson FLSB 1750 ABS 2022 Softail Sport Glide 107 All Models
• Harley Davidson FLSB 1750 ABS 2023 Softail Sport Glide 107 All Models
• Harley Davidson FLSL 1750 ABS 2018 Softail Slim 107 All Models
• Harley Davidson FLSL 1750 ABS 2019 Softail Slim 107 All Models
• Harley Davidson FLSL 1750 ABS 2020 Softail Slim 107 All Models
• Harley Davidson FLSL 1750 ABS 2021 Softail Slim 107 All Models
• Harley Davidson FLTRT 1868 ABS 2023 Road Glide 3 114 All Models
• Harley Davidson FLTRT 1868 ABS 2024 Road Glide 3 114 All Models
• Harley Davidson FLTRT 1868 ABS 2025 Road Glide 3 114 All Models
• Harley Davidson FLTRXSE 1923 ABS 2022 Road Glide CVO 117 All Models
• Harley Davidson FLTRXSE 1977 ABS 2023 Road Glide CVO 121 All Models
• Harley Davidson FLTRXST 1923 ABS 2022 Road Glide ST 117 All Models
• Harley Davidson FLTRXST 1923 ABS 2023 Road Glide ST 117 All Models
• Harley Davidson FLTRXS 1750 ABS 2017 Road Glide Special 107 All Models
• Harley Davidson FLTRXS 1750 ABS 2018 Road Glide Special 107 All Models
• Harley Davidson FLTRXS 1868 ABS 2019 Road Glide Special 114 All Models
• Harley Davidson FLTRXS 1868 ABS 2020 Road Glide Special 114 All Models
• Harley Davidson FLTRXS 1868 ABS 2021 Road Glide Special 114 All Models
• Harley Davidson FLTRXS 1868 ABS 2022 Road Glide Special 114 All Models
• Harley Davidson FLTRXS 1868 ABS 2023 Road Glide Special 114 All Models
• Harley Davidson FLTRXS 1868 ABS 2023 Road Glide Special Anniversary 114 All Models
• Harley Davidson FLTRX 1750 ABS 2017 Road Glide 107 All Models
• Harley Davidson FLTRX 1750 ABS 2018 Road Glide 107 All Models
• Harley Davidson FLTRX 1750 ABS 2019 Road Glide 107 All Models
• Harley Davidson FLTRX 1750 ABS 2020 Road Glide 107 All Models
• Harley Davidson FLTRX 1750 ABS 2021 Road Glide 107 American Models
• Harley Davidson FLTRX 1750 ABS 2022 Road Glide 107 American Models
• Harley Davidson FLTRX 1750 ABS 2023 Road Glide 107 American Models
• Harley Davidson FLTRX 1750 2017 Road Glide 107 American Models
• Harley Davidson FLTRX 1750 2018 Road Glide 107 American Models
• Harley Davidson FLTRX 1750 2019 Road Glide 107 American Models
• Harley Davidson FLTRX 1923 ABS 2024 Road Glide 117 All Models
• Harley Davidson FLTRX 1923 ABS 2025 Road Glide 117 All Models
• Harley Davidson FXBBS 1868 ABS 2021 Softail Street Bob 114 All Models
• Harley Davidson FXBBS 1868 ABS 2022 Softail Street Bob 114 All Models
• Harley Davidson FXBBS 1868 ABS 2023 Softail Street Bob 114 All Models
• Harley Davidson FXBBS 1868 ABS 2024 Softail Street Bob 114 All Models
• Harley Davidson FXBBS 1868 2021 Softail Street Bob 114 American Models
• Harley Davidson FXBB 1750 ABS 2018 Softail Street Bob 107 All Models
• Harley Davidson FXBB 1750 ABS 2019 Softail Street Bob 107 All Models
• Harley Davidson FXBB 1750 ABS 2020 Softail Street Bob 107 All Models
• Harley Davidson FXBB 1923 ABS 2025 Softail Street Bob 117 All Models
• Harley Davidson FXBRS 1868 ABS 2018 Softail Breakout 114 All Models
• Harley Davidson FXBRS 1868 ABS 2018 Softail Breakout Anniversary (ANX) 114 All Models
• Harley Davidson FXBRS 1868 ABS 2019 Softail Breakout 114 All Models
• Harley Davidson FXBRS 1868 ABS 2020 Softail Breakout 114 All Models
• Harley Davidson FXBRS 1868 ABS 2021 Softail Breakout 114 European Models
• Harley Davidson FXBRS 1868 ABS 2022 Softail Breakout 114 European Models
• Harley Davidson FXBR 1750 ABS 2018 Softail Breakout 107 All Models
• Harley Davidson FXBR 1750 ABS 2019 Softail Breakout 107 All Models
• Harley Davidson FXBR 1750 ABS 2020 Softail Breakout 107 All Models
• Harley Davidson FXBR 1923 ABS 2023 Softail Breakout 117 All Models
• Harley Davidson FXBR 1923 ABS 2024 Softail Breakout 117 All Models
• Harley Davidson FXBR 1923 ABS 2025 Softail Breakout 117 All Models
• Harley Davidson FXDRS 1868 ABS 2020 Softail King 114 All Models
• Harley Davidson FXDR 1868 ABS 2019 Softail King 114 All Models
• Harley Davidson FXFBS 1868 ABS 2018 Softail Fat Bob 114 All Models
• Harley Davidson FXFBS 1868 ABS 2019 Softail Fat Bob 114 All Models
• Harley Davidson FXFBS 1868 ABS 2020 Softail Fat Bob 114 All Models
• Harley Davidson FXFBS 1868 ABS 2021 Softail Fat Bob 114 All Models
• Harley Davidson FXFBS 1868 ABS 2022 Softail Fat Bob 114 All Models
• Harley Davidson FXFBS 1868 ABS 2023 Softail Fat Bob 114 All Models
• Harley Davidson FXFB 1750 ABS 2018 Softail Fat Bob 107 All Models
• Harley Davidson FXFB 1750 ABS 2019 Softail Fat Bob 107 All Models
• Harley Davidson FXFB 1750 ABS 2021 Softail Fat Bob 107 American Models
• Harley Davidson FXLRST 1923 ABS 2022 Softail Low Rider ST 117 All Models
• Harley Davidson FXLRST 1923 ABS 2022 Softail Low Rider ST EL Diablo 117 All Models
• Harley Davidson FXLRST 1923 ABS 2023 Softail Low Rider ST 117 All Models
• Harley Davidson FXLRST 1923 ABS 2024 Softail Low Rider ST 117 All Models
• Harley Davidson FXLRST 1923 ABS 2025 Softail Low Rider ST 117 H.O. All Models
• Harley Davidson FXLRS 1868 ABS 2020 Softail Low Rider S 114 All Models
• Harley Davidson FXLRS 1868 ABS 2021 Softail Low Rider S 114 All Models
• Harley Davidson FXLRS 1923 ABS 2022 Softail Low Rider S 117 All Models
• Harley Davidson FXLRS 1923 ABS 2023 Softail Low Rider S 117 All Models
• Harley Davidson FXLRS 1923 ABS 2024 Softail Low Rider S 117 All Models
• Harley Davidson FXLRS 1923 ABS 2025 Softail Low Rider S 117 H.O. All Models
• Harley Davidson FXLR 1750 ABS 2018 Softail Low Rider 107 All Models
• Harley Davidson FXLR 1750 ABS 2019 Softail Low Rider 107 All Models
• Harley Davidson FXLR 1750 ABS 2020 Softail Low Rider 107 All Models
• Harley Davidson FXST 1750 ABS 2020 Softail Standard All Models
• Harley Davidson FXST 1750 ABS 2021 Softail Standard All Models
• Harley Davidson FXST 1750 ABS 2022 Softail Standard All Models
• Harley Davidson FXST 1750 ABS 2023 Softail Standard All Models
• Harley Davidson FXST 1750 2021 Softail Standard American Models

Manufacturer part number: 310-1006A

View all S&S Cycle. View all Parts and spares.

Contents

Your package will include the following:

• 1 X S&S Cycle M8 Cam Chest Kit For Harley Davidson FLDE 1750 2018-2020 Gear 475G
