Product description

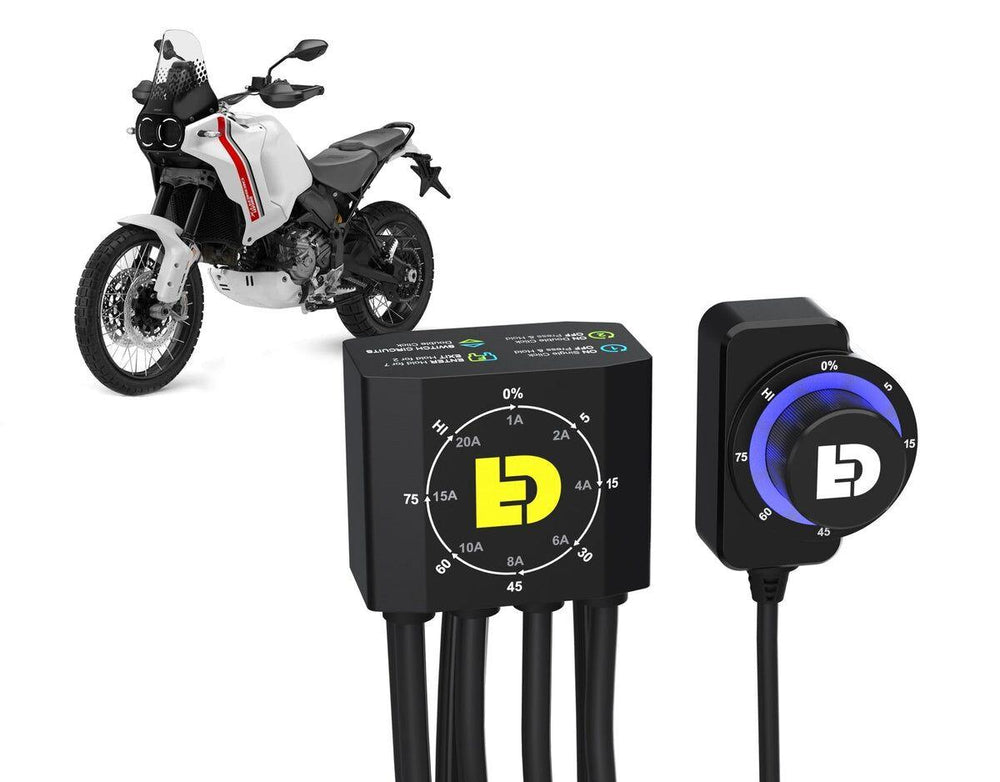

The Denali Dialdim Lighting Controller For Ducati Desert X 950 2023-2024 - Black is part of the latest collection from Denali.

Features:

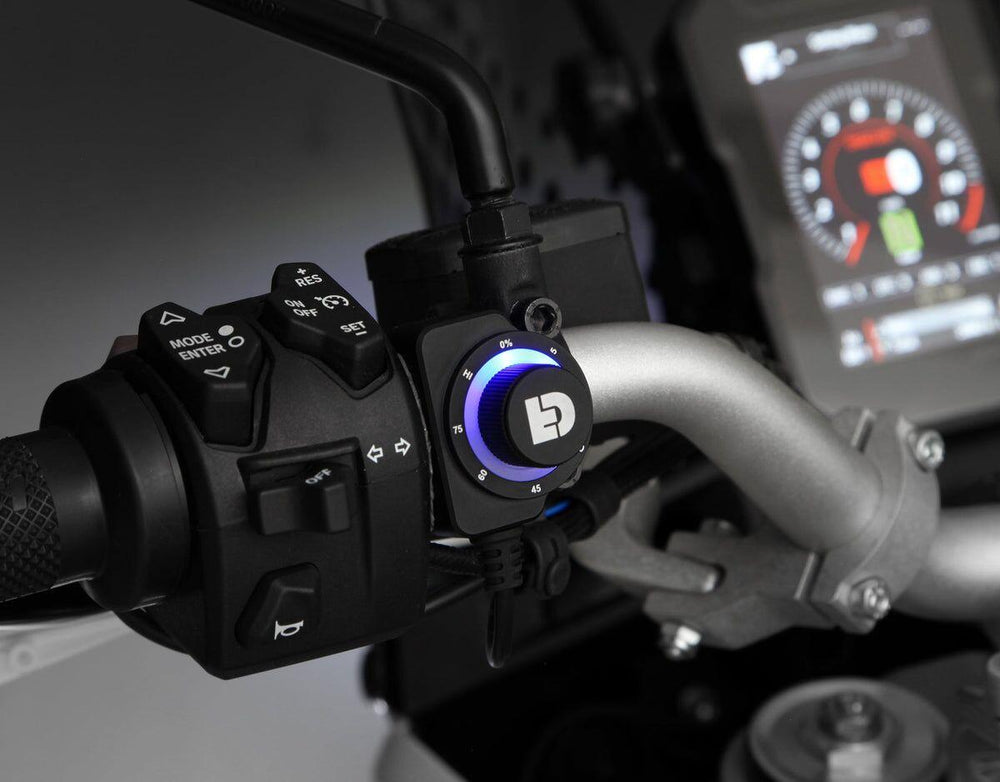

• ON/OFF & Dim - Independently control two sets of lights on/off and intensity level using the single DialDim™ Switch. The blue halo controls light set one and the green halo controls light set two. Double click to switch between the two circuits.
• High/Low Sync - Your auxiliary lights will automatically switch between your selected dim setting to full intensity with the factory high beam switch. Simply connect the blue input wire to your vehicle's high beam circuit to enable this feature.
• Stealth Mode - A clever 0% dim setting on the switch allows your lights to be "off" during normal driving conditions but will jump to 100% intensity with your vehicle's high beam switch. The lights will also react to turn signal and horn inputs in this mode but will remain off when no inputs are detected.
• Cancel with Turn Signal - When enabled the main lights (blue circuit 1) will cancel in sync with your signal to prevent "washing out" your factory turn signal. Simply connect the yellow and orange input wires to your vehicle turn signal circuit to enable this feature.
• Flash as Turn Signal - When enabled your amber visibility lights (green circuit 2) will flash in sync with your factory turn signals. Simply connect the yellow and orange input wires to your vehicle turn signal circuit to enable this feature.
• Strobe with Horn - When enabled your auxiliary lights on both circuits will strobe at 4Hz when you sound your horn. Simply connect the green input wire to your vehicle horn circuit to enable this feature.
• Electronically Fused Circuits - Both light circuits are electronically fused and can be set right from the switch itself! The halo will illuminate red to notify you when a circuit fused is tripped.
• Voltage Display Indicator - Upon vehicle startup, the switch halo will flash green to indicate a healthy battery voltage, or flash red to indicate a battery voltage that is below 11.8v.
• Low Voltage Cutoff - If the battery voltage drops below 10.8v the lights will not power on preventing you from being stranded. The switch halo will flash 4 red LEDs to indicate the low voltage condition.
• To enable high-beam, turn signal, and horn related functions you need to connect to a clean 12v circuit on your vehicle. To disable these features simply do not connect to the corresponding vehicle circuit.
• Two fully independent light circuits
• Eight intensity levels per circuit (5%, 15%, 30%, 45%, 60%, 75%, 100%)
• Eight electronic fuse values (1A, 2A, 4A, 6A, 8A, 10A, 15A, 20A)
• Five feature input wires (ignition, high beam, horn, left turn, right turn)
• 20A max per circuit (30A max combined)
• Operating Voltage: 12 VDC

Specifications:

• Color/Finish: Black
• Product Name: Lighting Control Module
• Type: Wiring Harness
• Units: Kit

To fit:

• DUCATI DESERT X 950 2023 All Models
• DUCATI DESERT X 950 2024 Rally All Models
• DUCATI DESERT X 950 2024 All Models

Manufacturer part number: DNL.WHS.25000

View all Denali. View all Parts and spares.

Contents

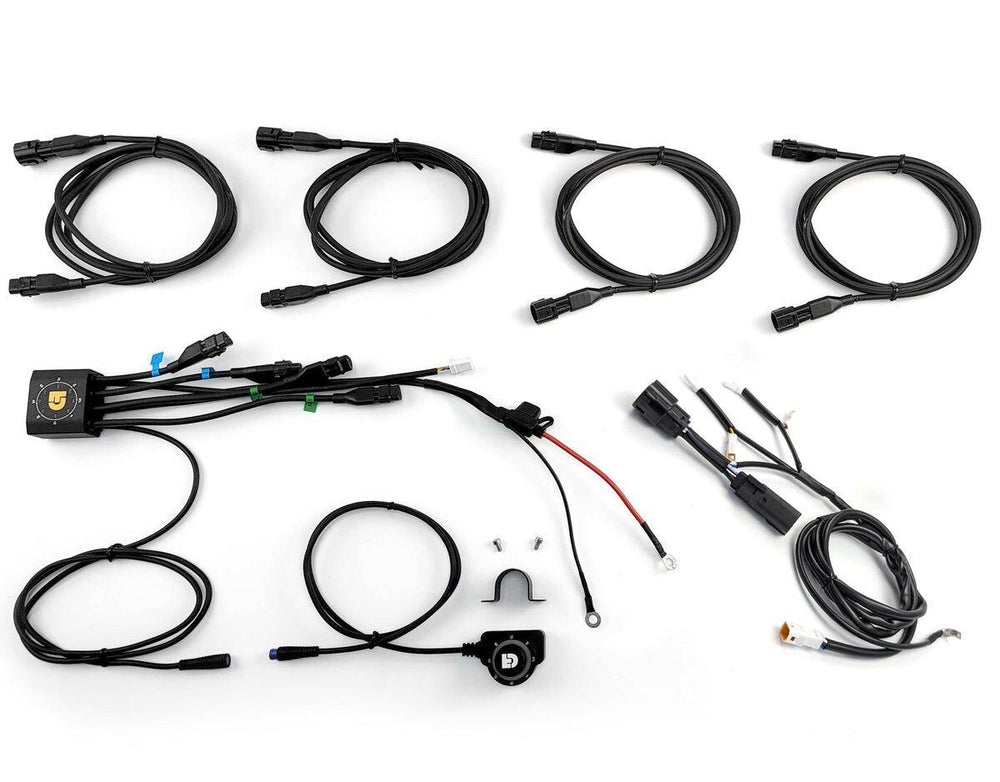

Your package will include the following:

• 1 X Denali Dialdim Lighting Controller For Ducati Desert X 950 2023-2024 - Black
