Product description

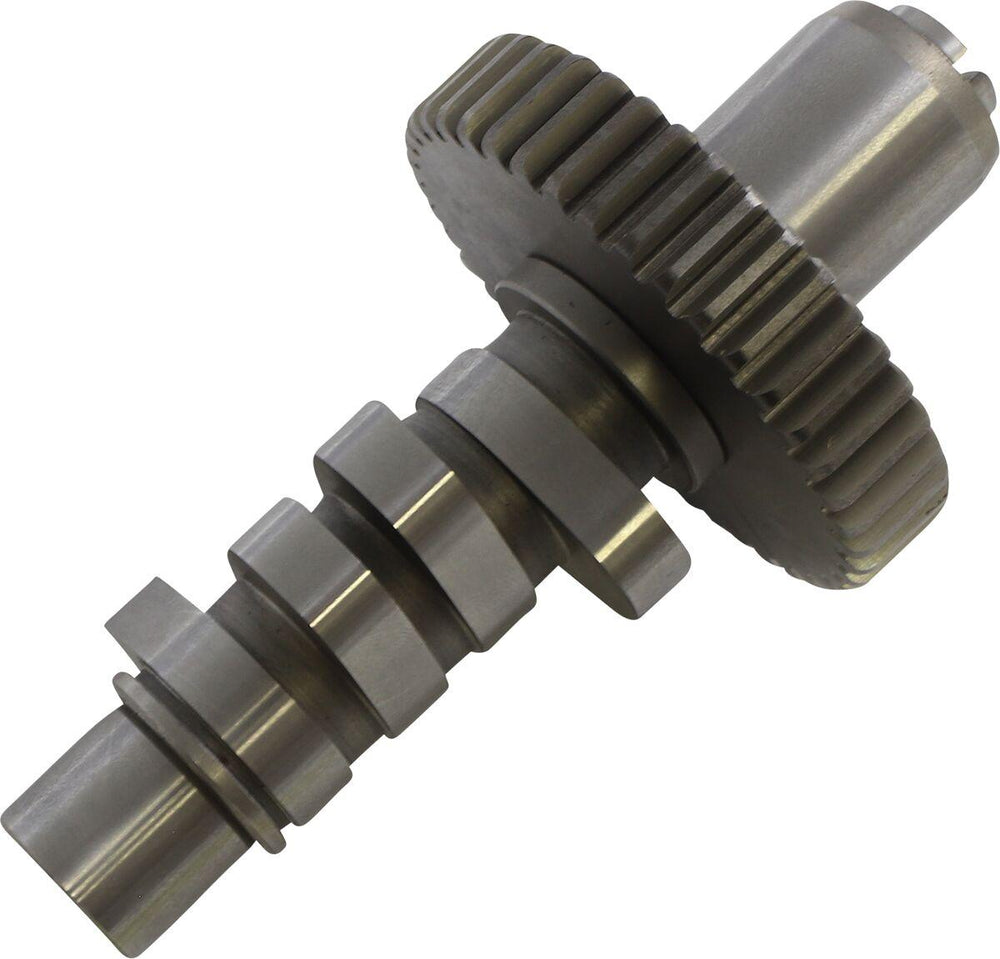

The S&S Cycle 514 Camshaft For Harley Davidson FL 1200 1977 is part of the latest collection from S&S Cycle.

Features:

• S&S cams are tested on the dyno, street and racetrack before being offered to the public
• With hundreds of test hours on them, you know that you are getting the best cam S&S can produce
• For 84" to 93" motors, not more than 9:1
• Best response occurs in the mid range from 2500 to 5000 rpm
• Recommend high-performance hydraulic or solid lifters
• Made in the USA
• Spring spacing is required
• Installer must check coil bind, valve-to-valve clearance, valve-to-piston clearance and cam lobe to case clearance.

Specifications:

• Application: Exhaust| Intake
• Exhaust Close: 23°
• Exhaust Duration: 246°
• Exhaust Lift at TDC: 0.177" Panhead. 0.169" Shovelhead
• Exhaust Lift: 0.540" Panhead. 0.514" Shovelhead
• Exhaust Open: 43°
• Grind: 514 Series
• Intake Close: 43°
• Intake Duration: 246°
• Intake Lift at TDC: 0.177" Panhead. 0.169" Shovelhead
• Intake Lift: 0.540" Panhead. 0.514" Shovelhead
• Intake Open: 23°

To fit:

• Harley Davidson FLHC 1340 1980 Electra Glide All Models
• Harley Davidson FLHC 1340 1981 Electra Glide Classic All Models
• Harley Davidson FLHC 1340 1982 Electra Glide Classic All Models
• Harley Davidson FLHC 1340 1983 Electra Glide Classic All Models
• Harley Davidson FLHC 1979 Electra Glide Classic All Models
• Harley Davidson FLHS 1200 1979 Electra Glide Sport American Models
• Harley Davidson FLHS 1200 1980 Electra Glide Sport American Models
• Harley Davidson FLHTE 1340 1984 Electra Glide Classic All Models
• Harley Davidson FLHT 1340 1983 Electra Glide All Models
• Harley Davidson FLHT 1340 1984 Electra Glide All Models
• Harley Davidson FLH 1200 1977 Electra Glide All Models
• Harley Davidson FLH 1200 1978 Electra Glide All Models
• Harley Davidson FLH 1200 1979 Electra Glide All Models
• Harley Davidson FLH 1200 1980 Electra Glide All Models
• Harley Davidson FLH 1340 1979 Electra Glide All Models
• Harley Davidson FLH 1340 1980 Electra Glide All Models
• Harley Davidson FLH 1340 1981 Electra Glide All Models
• Harley Davidson FLH 1340 1982 Electra Glide All Models
• Harley Davidson FLH 1340 1983 Electra Glide All Models
• Harley Davidson FLH 1340 1984 Electra Glide Belt Drive All Models
• Harley Davidson FLTC 1340 1980 Tour Glide Classic All Models
• Harley Davidson FLTC 1340 1981 Tour Glide Classic All Models
• Harley Davidson FLTC 1340 1982 Tour Glide Classic All Models
• Harley Davidson FLTC 1340 1983 Tour Glide Classic All Models
• Harley Davidson FLTC 1340 1984 Tour Glide Classic All Models
• Harley Davidson FLT 1340 1980 Tour Glide All Models
• Harley Davidson FLT 1340 1981 Tour Glide All Models
• Harley Davidson FLT 1340 1982 Tour Glide All Models
• Harley Davidson FLT 1340 1983 Tour Glide All Models
• Harley Davidson FL 1200 1977 Electra Glide All Models
• Harley Davidson FXB 1340 1980 Sturgis All Models
• Harley Davidson FXB 1340 1981 Sturgis All Models
• Harley Davidson FXB 1340 1982 Sturgis All Models
• Harley Davidson FXDG 1340 1983 American Models
• Harley Davidson FXDG 1340 1984 American Models
• Harley Davidson FXEF 1200 1979 Fat Bob All Models
• Harley Davidson FXEF 1340 1979 Fat Bob All Models
• Harley Davidson FXEF 1340 1980 Fat Bob All Models
• Harley Davidson FXEF 1340 1981 Fat Bob All Models
• Harley Davidson FXEF 1340 1982 Fat Bob All Models
• Harley Davidson FXE 1200 1977 Super Glide All Models
• Harley Davidson FXE 1200 1978 Super Glide All Models
• Harley Davidson FXE 1200 1979 Super Glide All Models
• Harley Davidson FXE 1200 1980 Super Glide All Models
• Harley Davidson FXE 1340 1981 Super Glide All Models
• Harley Davidson FXE 1340 1982 Super Glide All Models
• Harley Davidson FXE 1340 1983 Super Glide All Models
• Harley Davidson FXE 1340 1984 Super Glide All Models
• Harley Davidson FXRDG 1340 1984 Disc Glide All Models
• Harley Davidson FXRP 1340 1984 Sport Glide Police American Models
• Harley Davidson FXRS 1340 II 1982 Super Glide II All Models
• Harley Davidson FXRS 1340 1984 Low Glide All Models
• Harley Davidson FXRT 1340 1984 Sport Glide All Models
• Harley Davidson FXR 1340 II 1982 Super Glide II All Models
• Harley Davidson FXR 1340 II 1983 Super Glide II All Models
• Harley Davidson FXR 1340 II 1984 Super Glide II All Models
• Harley Davidson FXSB 1340 1984 Low Rider All Models
• Harley Davidson FXS 1200 1977 Low Rider All Models
• Harley Davidson FXS 1200 1978 Low Rider All Models
• Harley Davidson FXS 1200 1979 Low Rider All Models
• Harley Davidson FXS 1340 1979 Low Rider All Models
• Harley Davidson FXS 1340 1980 Low Rider All Models
• Harley Davidson FXS 1340 1981 Low Rider All Models
• Harley Davidson FXS 1340 1982 Low Rider All Models
• Harley Davidson FXS 1340 1983 Low Rider All Models
• Harley Davidson FXWG 1340 1980 Wide Glide All Models
• Harley Davidson FXWG 1340 1981 Wide Glide All Models
• Harley Davidson FXWG 1340 1982 Wide Glide All Models
• Harley Davidson FXWG 1340 1983 Wide Glide All Models
• Harley Davidson FXWG 1340 1984 Wide Glide All Models
• Harley Davidson FX 1200 1977 Super Glide All Models
• Harley Davidson FX 1200 1978 Super Glide All Models
• Harley Davidson FX 1200 1979 Super Glide All Models

Manufacturer part number: 33-5052

View all S&S Cycle. View all Parts and spares.

Contents

Your package will include the following:

• 1 X S&S Cycle 514 Camshaft For Harley Davidson FL 1200 1977
