Product description

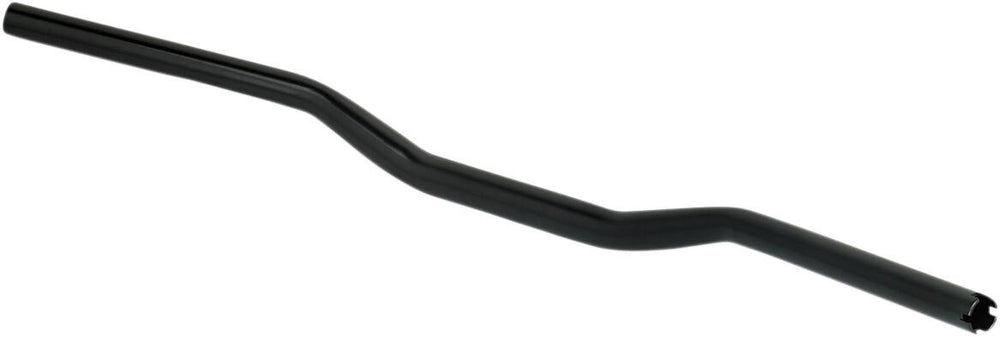

The Biltwell Tracker O/S Handlebar 44.5 mm (1-3/4") Tracker O/S - Black is part of the latest collection from Biltwell.

Features:

• Manufactured from 1" OD x 0.120” wall seamless 4130 chromoly tubing
• All bends are created with internal mandrels on a CNC bender to reduce flat spots in the bends
• All welded joints are precision mitered and TIG welded
• If grip sets aren't installed, bars will be 1-1/8" shorter than listed
• These bars will not mount to normal 1” clamps found on the majority of stock and aftermarket risers
1-1/8" outer diameter center section tapers to 1" at the grip ends.

Specifications:

• Base Color: Black
• Center Width: 12.5 cm (5")
• Clamping Diameter: 28.6 mm (1-1/8")
• Color/Finish: Black
• Controls Diameter: 25.4 mm (1")
• End Rise: 44.5 mm (1-3/4")
• Features: Notched for Throttle-By-Wire| Smooth. Unknurled
• Handlebar Diameter: 28.6 mm (1-1/8")
• Height: 57.2 mm (2-1/4")
• Material: Chromoly
• Product Name: Handlebar
• Pullback/Sweep: 63.5 mm (2-1/2")

Manufacturer part number: 6307-2015

View all Biltwell. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Biltwell Tracker O/S Handlebar 44.5 mm (1-3/4") Tracker O/S - Black
