Product description

The TRW Round Fixed Swing Design Brake Disc For Harley Davidson XL1200C 2011-2020 Rear is part of the latest collection from TRW.

Features:

• Round external contour with perforated brake band
• High-strength steel alloy to standard 35 HRC, hardened and tempered
• Special ground rotor surface finish counters vibrations and improves brake performance
• For use with all TRW compound brake pads
• Sold each; must order two discs for dual-rotor applications

Specifications:

• Bolt Hole Circle: 82.7 mm
• Bolt Pattern: 5 Hole
• Inside Diameter: 56.4 mm
• Material: Stainless Steel
• Model: SWL Series
• Outside Diameter: 260 mm
• Product Name: Brake Rotor
• Shape: Round
• Thickness: 5.0 mm
• Type: One Piece (Fixed)
• Units: Each

To fit:

• Harley Davidson XL 1200 C 2011 Sportster Custom All Models
• Harley Davidson XL 1200 C 2012 Sportster Custom All Models
• Harley Davidson XL 1200 C 2013 Sportster Custom All Models
• Harley Davidson XL 1200 C 2014 Sportster Custom All Models
• Harley Davidson XL 1200 C 2015 Sportster Custom All Models
• Harley Davidson XL 1200 C 2017 Sportster Custom All Models
• Harley Davidson XL 1200 C 2017 Sportster Custom American Models
• Harley Davidson XL 1200 C 2018 Sportster Custom All Models
• Harley Davidson XL 1200 C 2018 Sportster Custom American Models
• Harley Davidson XL 1200 C 2019 Sportster Custom All Models
• Harley Davidson XL 1200 C 2019 Sportster Custom American Models
• Harley Davidson XL 1200 C 2020 Sportster Custom All Models
• Harley Davidson XL 1200 C 2020 Sportster Custom American Models
• Harley Davidson XL 1200 L 2006 Low All Models
• Harley Davidson XL 1200 L 2007 Low All Models
• Harley Davidson XL 1200 L 2008 Low All Models
• Harley Davidson XL 1200 L 2009 Low All Models
• Harley Davidson XL 1200 L 2010 Low All Models
• Harley Davidson XL 1200 L 2011 Low All Models
• Harley Davidson XL 1200 N 2007 Nightster American Models
• Harley Davidson XL 1200 N 2008 Nightster All Models
• Harley Davidson XL 1200 N 2009 Nightster All Models
• Harley Davidson XL 1200 N 2010 Nightster All Models
• Harley Davidson XL 1200 N 2011 Nightster All Models
• Harley Davidson XL 1200 N 2012 Nightster All Models
• Harley Davidson XL 1200 V 2014 Seventy-Two All Models
• Harley Davidson XL 1200 V 2015 Seventy-Two All Models
• Harley Davidson XL 1200 V 2016 Seventy-Two All Models
• Harley Davidson XL 1200 X 2010 Forty-Eight All Models
• Harley Davidson XL 1200 X 2011 Forty-Eight All Models
• Harley Davidson XL 1200 X 2012 Forty-Eight All Models
• Harley Davidson XL 1200 X 2013 Forty-Eight All Models
• Harley Davidson XL 1200 X 2014 Forty-Eight All Models
• Harley Davidson XL 1200 X 2015 Forty-Eight All Models
• Harley Davidson XL 1200 X 2016 Forty-Eight All Models
• Harley Davidson XL 1200 X 2017 Forty-Eight All Models
• Harley Davidson XL 1200 X 2017 Forty-Eight American Models
• Harley Davidson XL 1200 X 2020 Sportster Forty-Eight All Models
• Harley Davidson XL 1200 X 2020 Sportster Forty-Eight American Models
• Harley Davidson XL 1200 X 2021 Sportster Forty-Eight American Models
• Harley Davidson XL 1200 X 2022 Sportster Forty-Eight American Models
• Harley Davidson XL 883 L 2007 Low All Models
• Harley Davidson XL 883 L 2008 Low All Models
• Harley Davidson XL 883 L 2009 Low All Models
• Harley Davidson XL 883 L 2010 Low All Models
• Harley Davidson XL 883 L 2011 Super Low All Models
• Harley Davidson XL 883 L 2012 Super Low All Models
• Harley Davidson XL 883 L 2013 Super Low All Models
• Harley Davidson XL 883 L 2014 Super Low All Models
• Harley Davidson XL 883 R 2002 Roadster All Models
• Harley Davidson XL 883 R 2003 Roadster All Models
• Harley Davidson XL 883 R 2010 Roadster European Models
• Harley Davidson XL 883 R 2011 Roadster European Models
• Harley Davidson XL 883 R 2012 Roadster European Models
• Harley Davidson XL 883 R 2013 Roadster European Models
• Harley Davidson XR 1200 X 2011 All Models
• Harley Davidson XR 1200 X 2012 All Models
• Harley Davidson XR 1200 X 2013 All Models
• Harley Davidson XR 1200 2008 European Models
• Harley Davidson XR 1200 2009 All Models
• Harley Davidson XR 1200 2010 All Models

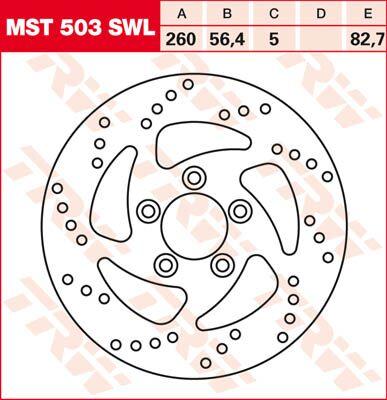

Manufacturer part number: MST503SWL

View all TRW. View all Parts and spares.

Contents

Your package will include the following:

• 1 X TRW Round Fixed Swing Design Brake Disc For Harley Davidson XL1200C 2011-2020 Rear
