Product description

The Vintco Top End Piston Kit For Honda CR80 1980-1981 Standard is part of the latest collection from Vintco.

Features:

• Made with modern materials and manufacturing techniques to ensure an as good or better than OEM fitment and performance
• Pistons are made in Germany and forged for strength and MoS2 (Molybdenum Disulfide) coated to ease break in

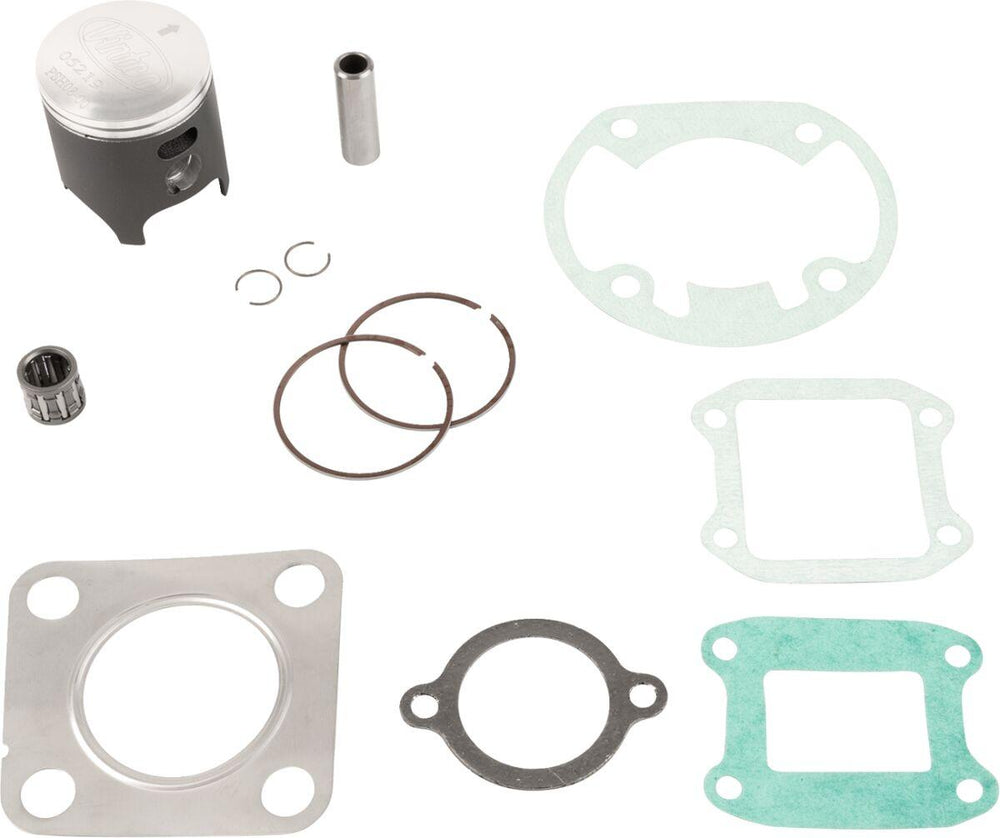

• Kit includes a piston, rings, pin and clips, top end bearing and a full top-end gasket kit (head gasket, base gasket, intake gasket, and exhaust gasket)
• OEM part numbers are provided to ensure correct fitmment.
Kit Includes: • Piston Kit • Head Gasket OE #12251-169-000 • Reed Valve Gasket OE #14132-169-306 • Reed Valve Gasket OE #14133-169-306 • Base Gasket OE #12191-GC4-306 • Exhaust Gasket OE #18291-169-306 • Wrist Pin Bearing 12x17x16 mm

Specifications:

• Bore - Oversize Metric: Standard
• Bore - Oversize: Standard
• Bore Size: 49.50 mm
• Displacement: 80 cc
• Engine Type: 2-Stroke
• Piston Diameter Metric: 49.45 mm
• Piston Diameter: 49.45 mm
• Piston Material: Forged
• Product Name: Piston Kit
• Skirt Coating: Molybdenum Disulphite
• Style: Top End
• Units: Kit

To fit:

• HONDA CR 80 R 1980 All Models
• HONDA CR 80 R 1981 All Models

Manufacturer part number: KTH10-00

View all Vintco. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Vintco Top End Piston Kit For Honda CR80 1980-1981 Standard
