Product description

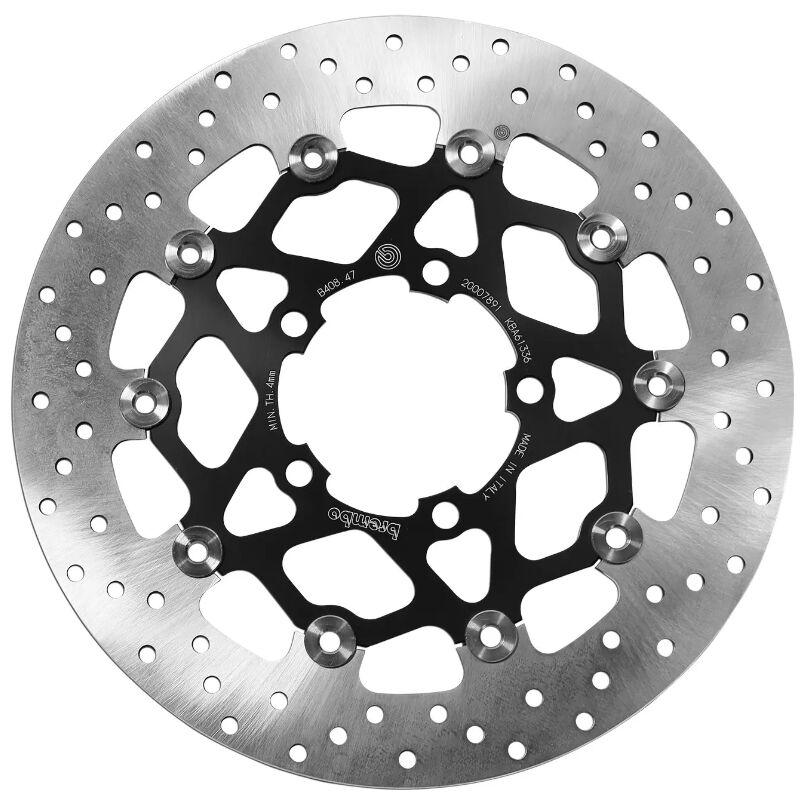

The Brembo Oro Prime Line Floating Brake Disc For Triumph Tiger 800 2011-2014 Front is part of the latest collection from Brembo.

Features:

• Brembo Serie Oro Brake Discs are fully interchangeable with an Original Equipment Brake Disc
• They consist of the Stainless Steel Braking band connected by means of Drive Pawls to the Hub made of CNC-machined and Anodised Aluminium Alloy
• The Vast experience of Brembo was used to define the most correct geometries, tolerances and dimensions for all Motorbike types and use
• Resulting from a Specific Study of Machining tolerances, the special Conformation of Brembo Discs allows Braking torque to be transmitted more effectively while offering better resistance to thermal and mechanical stress
• The Serie Oro was the range with which Brembo entered the Racing World in the mid-1970s, quickly becoming the Industry Benchmark for Discs

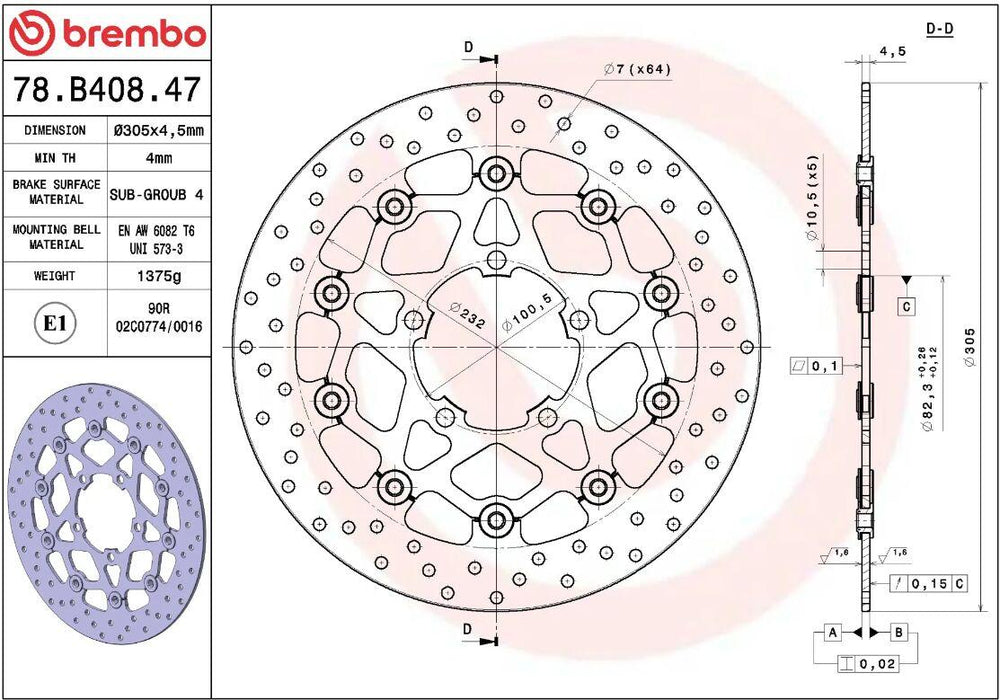

Brake Rotor Floating Serie ORO, Brake Measurements: Outside Diameter 305mm Inner Diameter 82,3mm Pitch 100,5mm Thickness 4,5mm

Specifications:

• Bolt Hole Circle: 100.5 mm
• Bolt Pattern: 5 Hole
• Braking Surface: Drilled
• Color/Finish: Black| Silver| Stainless Steel
• Material: Aluminum Alloy| Stainless Steel
• Outside Diameter: 305 mm (12")
• Product Name: Brake Rotor
• Shape: Round
• Style: Full-Floating
• Thickness: 4.5 mm (1/4")
• Type: Two Piece (Floating)
• Units: Each

To fit:

• TRIUMPH TIGER 800 ABS 2011 All Models
• TRIUMPH TIGER 800 ABS 2012 All Models
• TRIUMPH TIGER 800 ABS 2013 All Models
• TRIUMPH TIGER 800 ABS 2014 All Models
• TRIUMPH TIGER 800 XCA 2015 European Models
• TRIUMPH TIGER 800 XCA 2016 European Models
• TRIUMPH TIGER 800 XCA 2017 European Models
• TRIUMPH TIGER 800 XCA 2018 European Models
• TRIUMPH TIGER 800 XCA 2019 European Models
• TRIUMPH TIGER 800 XCA 2020 European Models
• TRIUMPH TIGER 800 XCX 2015 All Models
• TRIUMPH TIGER 800 XCX 2016 Low All Models
• TRIUMPH TIGER 800 XCX 2016 All Models
• TRIUMPH TIGER 800 XCX 2017 Low All Models
• TRIUMPH TIGER 800 XCX 2017 All Models
• TRIUMPH TIGER 800 XC 2011 All Models
• TRIUMPH TIGER 800 XC 2012 All Models
• TRIUMPH TIGER 800 XC 2013 All Models
• TRIUMPH TIGER 800 XC 2014 All Models
• TRIUMPH TIGER 800 XC 2015 All Models
• TRIUMPH TIGER 800 XC 2016 All Models
• TRIUMPH TIGER 800 XC 2017 All Models
• TRIUMPH TIGER 800 XRT 2015 European Models
• TRIUMPH TIGER 800 XRT 2016 European Models
• TRIUMPH TIGER 800 XRT 2017 European Models
• TRIUMPH TIGER 800 XRX 2015 All Models
• TRIUMPH TIGER 800 XRX 2016 Low All Models
• TRIUMPH TIGER 800 XRX 2016 All Models
• TRIUMPH TIGER 800 XRX 2017 Low All Models
• TRIUMPH TIGER 800 XRX 2017 All Models
• TRIUMPH TIGER 800 XR 2015 All Models
• TRIUMPH TIGER 800 XR 2016 All Models
• TRIUMPH TIGER 800 XR 2017 All Models
• TRIUMPH TIGER 800 2011 All Models
• TRIUMPH TIGER 800 2012 All Models
• TRIUMPH TIGER 800 2013 All Models
• TRIUMPH TIGER 800 2014 All Models
• TRIUMPH TIGER EXPLORER ABS 2012 All Models
• TRIUMPH TIGER EXPLORER ABS 2013 All Models
• TRIUMPH TIGER EXPLORER ABS 2014 All Models
• TRIUMPH TIGER EXPLORER ABS 2015 All Models
• TRIUMPH TIGER EXPLORER XC 2013 All Models
• TRIUMPH TIGER EXPLORER XC 2014 All Models
• TRIUMPH TIGER EXPLORER XC 2015 Special Edition All Models
• TRIUMPH TIGER EXPLORER XC 2015 All Models
• TRIUMPH TIGER EXPLORER XC 2016 All Models
• TRIUMPH TIGER EXPLORER XC 2017 All Models
• TRIUMPH TIGER EXPLORER XRX 2016 Low All Models
• TRIUMPH TIGER EXPLORER XRX 2016 All Models
• TRIUMPH TIGER EXPLORER XRX 2017 Low All Models
• TRIUMPH TIGER EXPLORER XRX 2017 All Models
• TRIUMPH TIGER EXPLORER XRX 2018 Low All Models
• TRIUMPH TIGER EXPLORER XRX 2018 All Models
• TRIUMPH TIGER EXPLORER XRX 2019 Low All Models
• TRIUMPH TIGER EXPLORER XRX 2019 All Models
• TRIUMPH TIGER EXPLORER XRX 2020 Low All Models
• TRIUMPH TIGER EXPLORER XRX 2020 All Models

Manufacturer part number: 78B40847

View all Brembo. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Brembo Oro Prime Line Floating Brake Disc For Triumph Tiger 800 2011-2014 Front
