Product description

The Esjot Standard 520 Sprocket For Suzuki DR250 S 1982-1989 Front 15T is part of the latest collection from Esjot.

Features:

• ESJOT front sprockets have been specially developed for the high OEM requirements and are among the best pinions on the market worldwide.
• A special steel, high-quality case hardening and precise gearing ensure exceptionally high strength and durability - ideal for wear-intensive conditions in all areas.
• Machined on CNC automatic lathes.
• State-of-the-art broaching machines guarantee a precise fit on the drive shaft.
• Concentricity and axial run-out tolerances of less than 0.1 mm.
• 100% Made in Germany.

Specifications:

• COLOR: Natural
• MATERIAL: Steel 16MnCr5
• PITCH: 520
• POSITION: Front
• Product Name: Sprocket
• TEETH: 15
• Type: Countershaft
• Units: Each

To fit:

• SUZUKI DR 250 S 1982 Djebel JAPAN
• SUZUKI DR 250 S 1982 European Models
• SUZUKI DR 250 S 1983 Djebel JAPAN
• SUZUKI DR 250 S 1983 European Models
• SUZUKI DR 250 S 1984 Djebel JAPAN
• SUZUKI DR 250 S 1984 European Models
• SUZUKI DR 250 S 1985 Djebel JAPAN
• SUZUKI DR 250 S 1985 European Models
• SUZUKI DR 250 S 1986 Djebel JAPAN
• SUZUKI DR 250 S 1986 European Models
• SUZUKI DR 250 S 1987 Djebel JAPAN
• SUZUKI DR 250 S 1987 European Models
• SUZUKI DR 250 S 1988 Djebel JAPAN
• SUZUKI DR 250 S 1988 European Models
• SUZUKI DR 250 S 1989 Djebel JAPAN
• SUZUKI DR 250 S 1989 European Models
• SUZUKI DR 250 S 1990 Djebel JAPAN
• SUZUKI DR 250 S 1991 Djebel JAPAN
• SUZUKI DR 250 S 1992 Djebel JAPAN
• SUZUKI DR 400 S 1980 European Models
• SUZUKI DR 400 S 1981 European Models
• SUZUKI DR 500 S 1981 All Models
• SUZUKI DR 500 S 1982 All Models
• SUZUKI DR 500 S 1983 All Models
• SUZUKI DR 500 1981 American Models
• SUZUKI DR 500 1982 American Models
• SUZUKI DR 500 1983 American Models
• SUZUKI GNX 250 E 1982 European Models
• SUZUKI GNX 250 E 1983 European Models
• SUZUKI GNX 250 E 1984 European Models
• SUZUKI GN 250 1982 American Models
• SUZUKI GN 250 1983 American Models
• SUZUKI GN 250 1984 American Models
• SUZUKI GN 250 1985 American Models
• SUZUKI GN 250 1985 European Models
• SUZUKI GN 250 1986 American Models
• SUZUKI GN 250 1986 European Models
• SUZUKI GN 250 1987 American Models
• SUZUKI GN 250 1987 European Models
• SUZUKI GN 250 1988 American Models
• SUZUKI GN 250 1988 European Models
• SUZUKI GN 250 1989 European Models
• SUZUKI GN 250 1990 European Models
• SUZUKI GN 250 1991 European Models
• SUZUKI GN 250 1992 European Models
• SUZUKI GN 250 1993 European Models
• SUZUKI GN 250 1994 European Models
• SUZUKI GN 250 1995 European Models
• SUZUKI GN 250 1996 European Models
• SUZUKI GN 250 1997 European Models
• SUZUKI GN 250 1998 European Models
• SUZUKI GN 250 1999 European Models
• SUZUKI GN 400 L 1980 European Models
• SUZUKI GN 400 L 1981 European Models
• SUZUKI GN 400 L 1982 European Models
• SUZUKI GN 400 TD 1980 European Models
• SUZUKI GN 400 TD 1981 European Models
• SUZUKI GN 400 TD 1982 European Models
• SUZUKI GN 400 T 1980 American Models
• SUZUKI GN 400 T 1981 American Models
• SUZUKI GN 400 T 1982 American Models
• SUZUKI GN 400 X 1981 American Models
• SUZUKI GN 400 1980 European Models
• SUZUKI GZ 250 1999 Marauder European Models
• SUZUKI GZ 250 2000 Marauder European Models
• SUZUKI GZ 250 2004 Boulevard American Models
• SUZUKI GZ 250 2005 Boulevard American Models
• SUZUKI GZ 250 2006 Boulevard American Models
• SUZUKI GZ 250 2007 Boulevard American Models
• SUZUKI GZ 250 2008 Boulevard American Models
• SUZUKI GZ 250 2009 Boulevard American Models
• SUZUKI SP 370 1978 All Models
• SUZUKI SP 370 1979 All Models
• SUZUKI SP 370 1980 All Models
• SUZUKI SP 400 1980 American Models
• SUZUKI SP 400 1981 American Models
• SUZUKI SP 400 1982 American Models
• SUZUKI TU 250 X 1998 Volty European Models
• SUZUKI TU 250 X 1998 JAPAN
• SUZUKI TU 250 X 1999 Volty European Models
• SUZUKI TU 250 X 1999 JAPAN
• SUZUKI TU 250 X 2000 Volty European Models
• SUZUKI TU 250 X 2000 JAPAN
• SUZUKI TU 250 X 2001 JAPAN
• SUZUKI TU 250 X 2002 JAPAN
• SUZUKI TU 250 X 2009 American Models
• SUZUKI TU 250 X 2010 American Models
• SUZUKI TU 250 X 2011 American Models
• SUZUKI TU 250 X 2012 American Models
• SUZUKI TU 250 X 2013 American Models
• SUZUKI TU 250 X 2015 American Models
• SUZUKI TU 250 X 2016 American Models
• SUZUKI TU 250 X 2017 American Models
• SUZUKI TU 250 X 2018 American Models
• SUZUKI TU 250 X 2019 American Models
• SUZUKI VL 250 2000 Intruder LC JAPAN
• SUZUKI VL 250 2000 Intruder European Models
• SUZUKI VL 250 2001 Intruder LC JAPAN
• SUZUKI VL 250 2001 Intruder European Models
• SUZUKI VL 250 2002 Intruder LC JAPAN
• SUZUKI VL 250 2002 Intruder European Models
• SUZUKI VL 250 2003 Intruder LC JAPAN
• SUZUKI VL 250 2003 Intruder European Models
• SUZUKI VL 250 2004 Intruder LC JAPAN
• SUZUKI VL 250 2004 Intruder European Models

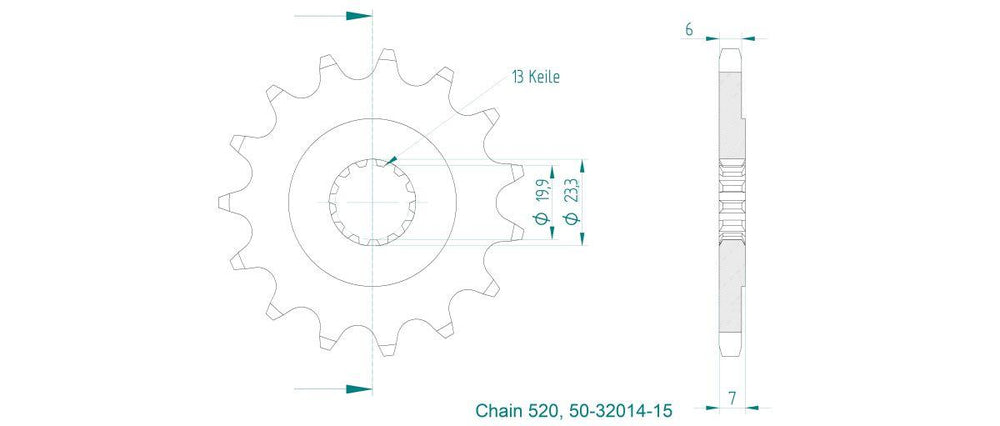

Manufacturer part number: 50-32014-15

View all Esjot. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Esjot Standard 520 Sprocket For Suzuki DR250 S 1982-1989 Front 15T
