Product description

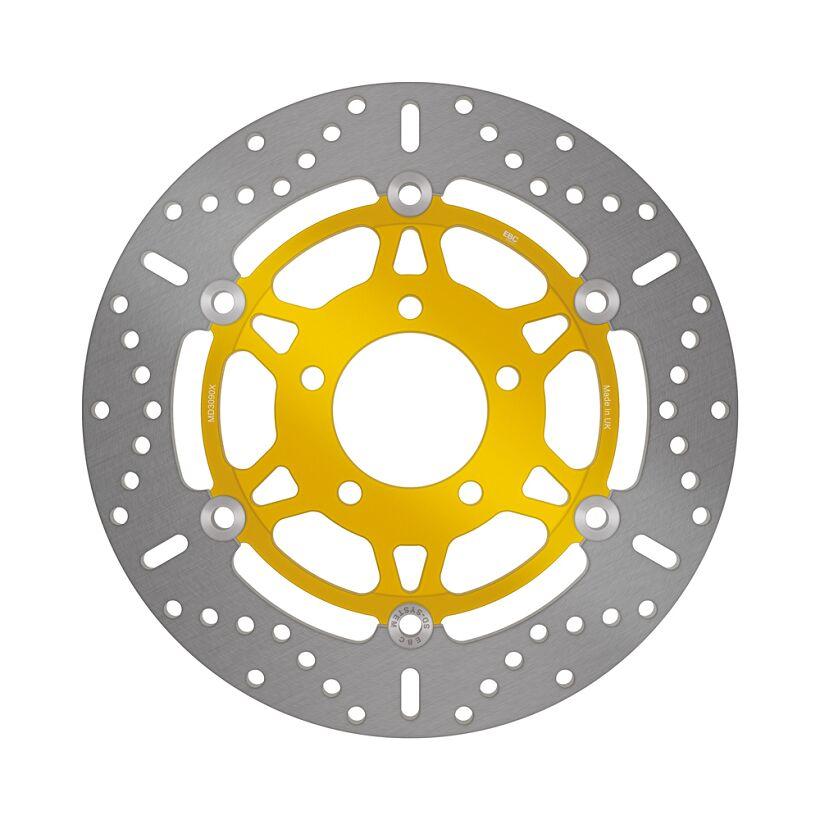

The EBC X-Series Brake Disc For Suzuki GSF 650 2005-2006 Front is part of the latest collection from EBC.

Features:

• Ultra lightweight EBC Brakes X series floating front MC rotors since their introduction, have become one if the worlds best selling lightest and best performing discs available for all modern sport bikes. Floating MC rotors feature EBC Brakes unique and patented S-Drive button system which features square sided rivets captured in square drive pockets on the rotor and hub which allow the outer rotor blade to expand and contract freely under the heat of braking without suffering rivet lock.
• Hand built and inspected
• Ultra lightweight but strong
• Patented square drive button system (Floating rotors)
• Designed as an OEM improvement

Specifications:

• Bolt Hole Circle: 91.0 mm
• Bolt Pattern: 5 Hole
• Braking Surface: Drilled| Slotted
• Color/Finish: Gold| Stainless Steel
• Material: Stainless Steel
• Model: X Series
• Outside Diameter: 290 mm
• Product Name: Brake Rotor
• Shape: Round
• Thickness: 4.7 mm (1.85")
• Type: Two Piece (Floating)
• Units: Each

To fit:

• SUZUKI GSF 650 ABS 2005 Bandit European Models
• SUZUKI GSF 650 ABS 2006 Bandit European Models
• SUZUKI GSF 650 S 2005 Bandit All Models
• SUZUKI GSF 650 S 2006 Bandit All Models
• SUZUKI GSF 650 2005 Bandit European Models
• SUZUKI GSF 650 2006 Bandit European Models
• SUZUKI GSX 600 F 2003 Katana American Models
• SUZUKI GSX 600 F 2004 Katana American Models
• SUZUKI GSX 750 F 2003 Katana American Models
• SUZUKI GSX 750 F 2003 European Models
• SUZUKI GSX 750 F 2004 Katana American Models
• SUZUKI GSX 750 F 2004 European Models
• SUZUKI GSX 750 F 2005 Katana American Models
• SUZUKI GSX 750 F 2005 European Models
• SUZUKI GSX 750 F 2006 Katana American Models
• SUZUKI GSX 750 F 2006 European Models
• SUZUKI SV 400 S 2003 JAPAN
• SUZUKI SV 400 S 2004 JAPAN
• SUZUKI SV 400 S 2005 JAPAN
• SUZUKI SV 400 2003 JAPAN
• SUZUKI SV 400 2004 JAPAN
• SUZUKI SV 400 2005 JAPAN
• SUZUKI SV 650 S 2003 American Models
• SUZUKI SV 650 S 2003 European Models
• SUZUKI SV 650 S 2004 American Models
• SUZUKI SV 650 S 2004 European Models
• SUZUKI SV 650 S 2005 American Models
• SUZUKI SV 650 S 2005 European Models
• SUZUKI SV 650 S 2006 American Models
• SUZUKI SV 650 S 2006 European Models
• SUZUKI SV 650 S 2007 European Models
• SUZUKI SV 650 S 2008 American Models
• SUZUKI SV 650 S 2008 European Models
• SUZUKI SV 650 S 2009 American Models
• SUZUKI SV 650 S 2009 European Models
• SUZUKI SV 650 S 2010 European Models
• SUZUKI SV 650 2003 American Models
• SUZUKI SV 650 2003 European Models
• SUZUKI SV 650 2004 American Models
• SUZUKI SV 650 2004 European Models
• SUZUKI SV 650 2005 American Models
• SUZUKI SV 650 2005 European Models
• SUZUKI SV 650 2006 American Models
• SUZUKI SV 650 2006 European Models
• SUZUKI SV 650 2007 American Models
• SUZUKI SV 650 2007 European Models
• SUZUKI SV 650 2008 American Models
• SUZUKI SV 650 2008 European Models
• SUZUKI SV 650 2016 American Models
• SUZUKI SV 650 2017 American Models
• SUZUKI SV 650 2018 American Models
• SUZUKI SV 650 2019 American Models
• SUZUKI SV 650 2020 American Models
• SUZUKI SV 650 2021 American Models
• SUZUKI SV 650 2022 American Models
• SUZUKI SV 650 2023 American Models
• SUZUKI SV 650 2024 American Models
• SUZUKI VLR 1800 RT 2009 Intruder C 1800 R Touring European Models
• SUZUKI VLR 1800 R 2009 Intruder C 1800 R European Models
• SUZUKI VLR 1800 R 2011 Intruder C 1800 R European Models
• SUZUKI VLR 1800 R 2012 Intruder C 1800 R European Models
• SUZUKI VZ 1500 2009 Intruder M 1500 European Models
• SUZUKI VZ 1500 2010 Intruder M 1500 European Models

Manufacturer part number: MD3090X

View all EBC. View all Parts and spares.

Contents

Your package will include the following:

• 1 X EBC X-Series Brake Disc For Suzuki GSF 650 2005-2006 Front
