Product description

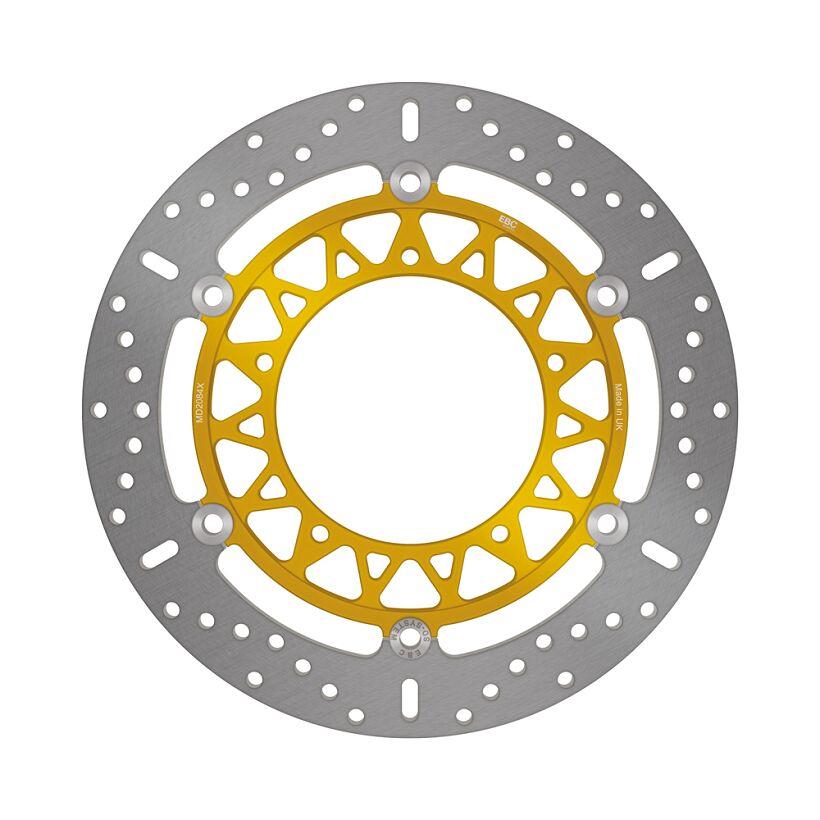

The EBC X-Series Brake Disc For Yamaha YZF-R1 1000 2004-2006 Front is part of the latest collection from EBC.

Features:

• Ultra lightweight EBC Brakes X series floating front MC rotors since their introduction, have become one if the worlds best selling lightest and best performing discs available for all modern sport bikes. Floating MC rotors feature EBC Brakes unique and patented S-Drive button system which features square sided rivets captured in square drive pockets on the rotor and hub which allow the outer rotor blade to expand and contract freely under the heat of braking without suffering rivet lock.
• Hand built and inspected
• Ultra lightweight but strong
• Patented square drive button system (Floating rotors)
• Designed as an OEM improvement

Specifications:

• Bolt Hole Circle: 150.0 mm
• Braking Surface: Drilled| Slotted
• Color/Finish: Gold| Stainless Steel
• Inside Diameter: 132.2 mm
• Material: Stainless Steel
• Model: X Series
• Outside Diameter: 320 mm
• Product Name: Brake Rotor
• Shape: Round
• Thickness: 5.0 mm
• Type: Two Piece (Floating)
• Units: Each

To fit:

• YAMAHA YZF-R1 1000 LE 2006 Limited Edition American Models
• YAMAHA YZF-R1 1000 SP 2006 50th Anniversary Limited Edition American Models
• YAMAHA YZF-R1 1000 2004 American Models
• YAMAHA YZF-R1 1000 2004 European Models
• YAMAHA YZF-R1 1000 2005 American Models
• YAMAHA YZF-R1 1000 2005 European Models
• YAMAHA YZF-R1 1000 2006 American Models
• YAMAHA YZF-R1 1000 2006 European Models

Manufacturer part number: MD2094X

View all EBC. View all Parts and spares.

Contents

Your package will include the following:

• 1 X EBC X-Series Brake Disc For Yamaha YZF-R1 1000 2004-2006 Front
