Product description

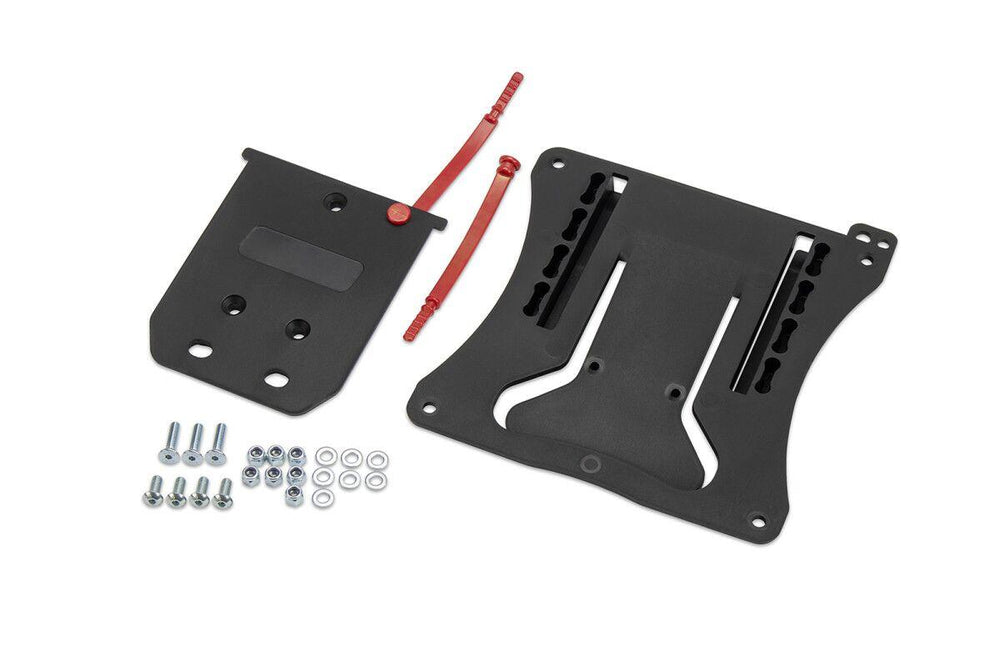

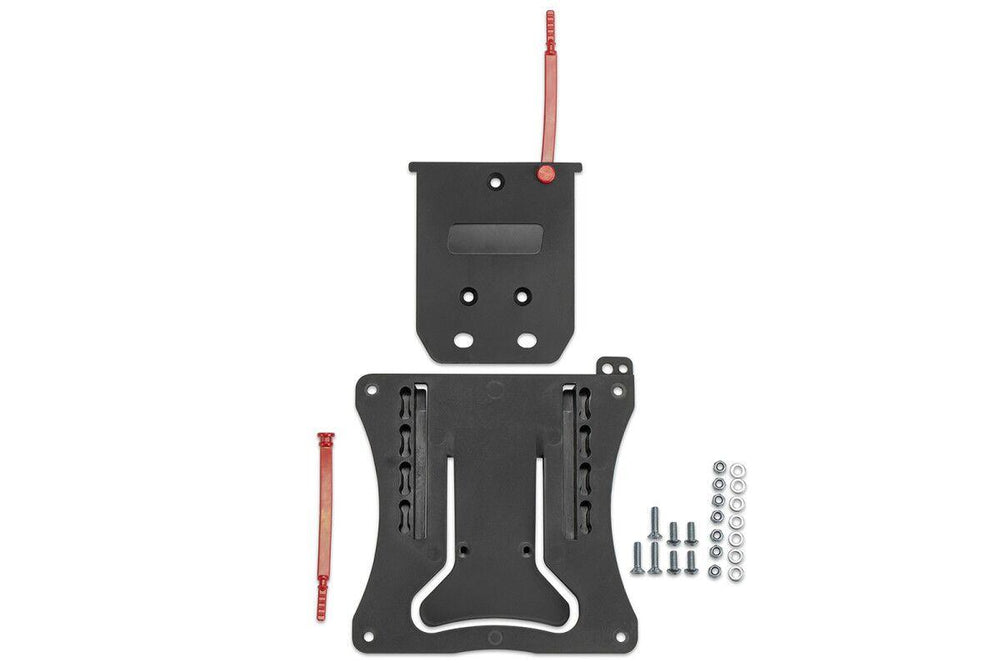

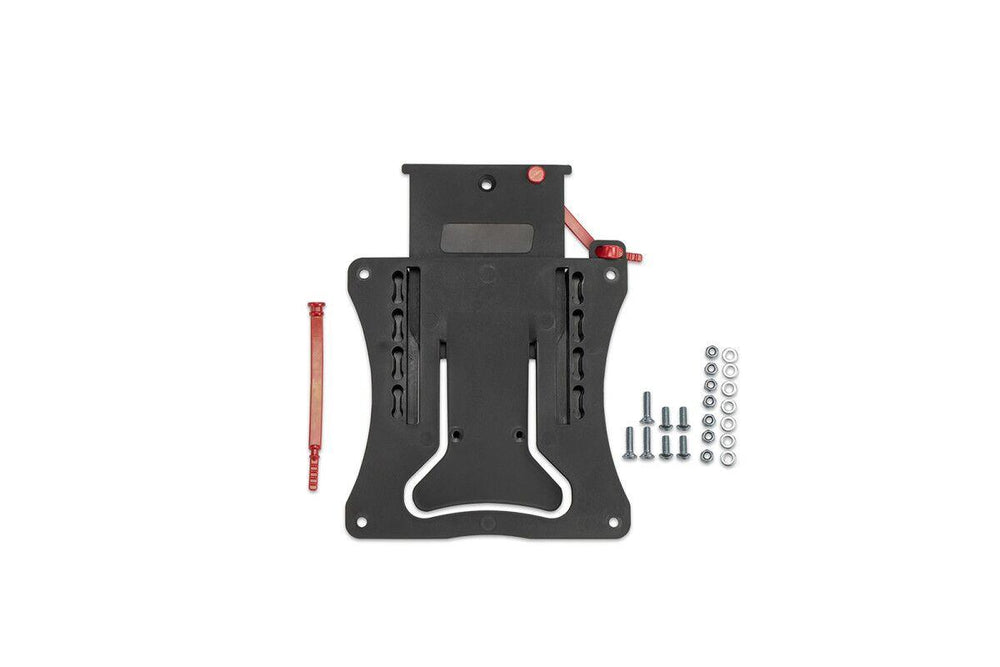

The UFO Quick Release Rear Tail Unit is part of the latest collection from UFO.

Features:

• MOUNTING
• First, position the fixed plate onto the license plate holder and drill three through holes, following the hole spacing already present on the plate.
• Secure the fixed plate to the holder using three M5 countersunk Allen screws, together with washers and self-locking nuts, making sure the assembly is firmly tightened.
• Insert one of the safety elastics into the dedicated hole on the fixed plate.
• Next, attach the license plate to the movable plate using four M5 button-head Allen screws, along with the corresponding washers and self-locking nuts.
• Once the plate is secured, slide the movable plate into the fixed plate along the retaining slots until you clearly hear a “click”, indicating correct locking.
• Then insert the safety elastic into the holes of the movable plate to prevent any accidental release of the license plate.
• REMOVAL
• To remove the movable plate with the license plate, first disconnect the safety elastic. Then press the lever located on the back of the plate and gently pull downward until it is fully released.
• MAINTENANCE AND WARNINGS
• The quick-release plate holder is designed to be removed before any off-road use, in order to avoid damage from impacts or vibrations that could cause plate loss.
• Ensure all fixing points are in good condition and properly tightened.
• Check the correct operation of the plate holder before every ride.
• Disclaimer: The UFO PLAST quick-release plate holder is designed for racing use only and is not approved for road use.
• Disclaimer: UFO PLAST is not liable for any loss or damage to the plate.

Specifications:

• Housing Color: Black
• Housing Material: Plastic
• Mounting Position: Rear
• Product Name: License Plate Holder
• Units: Kit

Manufacturer part number: PP01222#001

View all UFO. View all Parts and spares.

Contents

Your package will include the following:

• 1 X UFO Quick Release Rear Tail Unit
