Product description

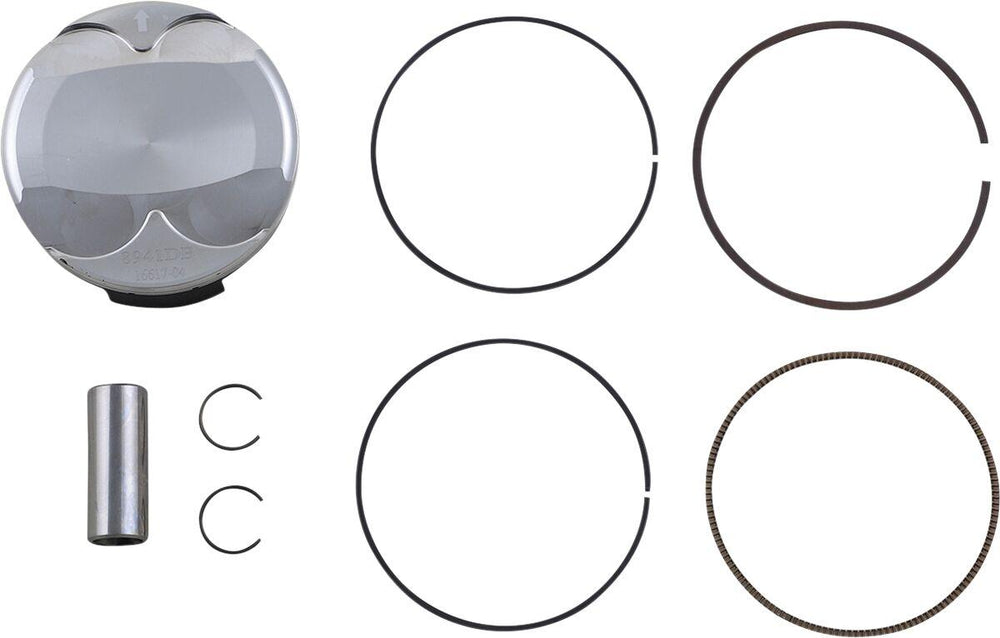

The Wossner Piston kit For KTM EXC-F350 2017-2019 87.96 mm is part of the latest collection from Wossner.

Features:

• Enhanced piston pin oiling slots, radial boss machining, and annular grooves for improved wrist pin lubrication
• Lightweight piston with a tight piston wall clearance for a quieter running engine
• Skirt coated for reduced friction and improved break in performance
• Ring land treatment for improved ring seal and oil control
• Double bridged forging design where noted
• Kit includes piston, rings, wrist pin and pin locks
Check piston clearance when using OEM crankshaft #79230018000 from '16 (superseded to 79230018100). Gas ported. Two ring design. Kit Includes: • Piston #8941DB • Ring Set #TPR88.00/2 • Wrist Pin #WP054-SP • Retaining Clips #CW18

Specifications:

• Bore - Oversize Metric: +0.01 mm
• Bore Size: 88.01 mm
• Compression Ratio Imperial: 12.5
• Compression Ratio: 12.5
• Engine Type: 4-Stroke
• Model: Pro Series
• Piston Material: Aluminum Alloy| Forged
• Piston Size Metric: 87.96 mm
• Piston Size: 87.96 mm
• Product Name: Piston Kit
• Stroke Length: 57.50 mm
• Units: Kit

To fit:

• KTM EXC-F 350 2017 All Models
• KTM EXC-F 350 2018 All Models
• KTM EXC-F 350 2019 Sixdays European Models

Manufacturer part number: 8941DB

View all Wossner. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Wossner Piston kit For KTM EXC-F350 2017-2019 87.96 mm
