Product description

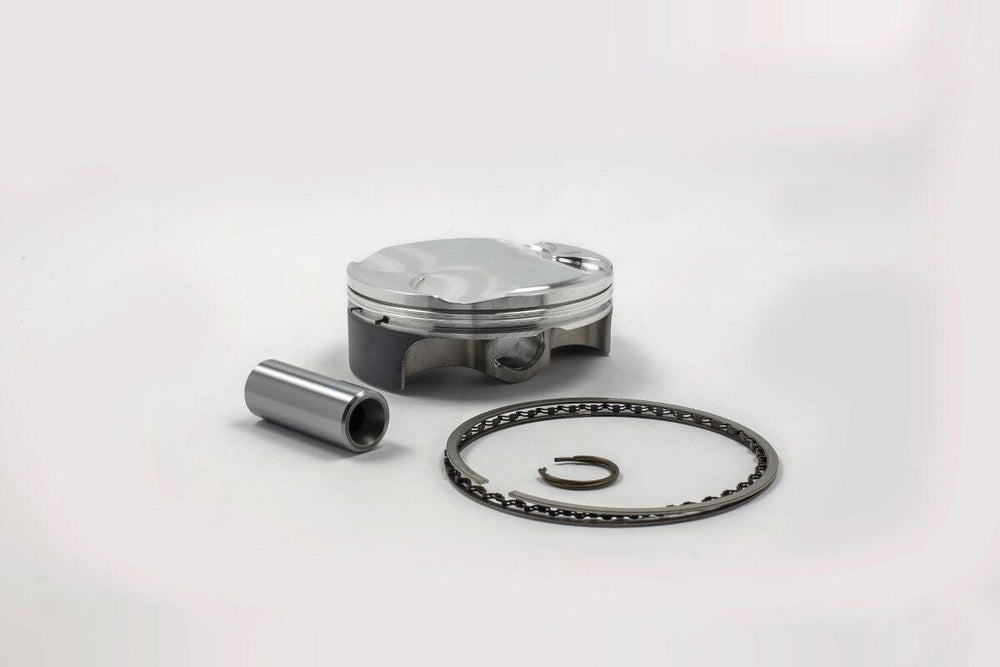

The Wossner Piston Kit For Arctic Cat Textron 400 2X4 2004-2008 Standard Size A is part of the latest collection from Wossner.

Features:

• Pistons made are with high quality, permanent skirt coating to reduce friction and piston rock for quiet and improved performance
• Optimized machining for lightness, as well as maintained strength in key areas such as crown and skirt wall cross section
• Forged from aerospace grade aluminum alloy
• All skirts supplied with Moly coating to reduce friction and assist in break in
• Piston kit includes piston, rings, pin and clips
• Oversize pistons available for all makes and models

Specifications:

• Bore Size: 90.00 mm
• Compression Ratio: 13.5
• Displacement: 400 cc
• Engine Type: 4-Stroke
• Model: Pro Series
• Piston Diameter: 89.94 mm
• Piston Material: Aluminum Alloy| Forged
• Piston Size: Standard Size A
• Product Name: Piston Kit
• Ring Material: Cast| Nitride Coated| Steel
• Skirt Coating: Molybdenum Disulphite
• Units: Kit

To fit:

• ARCTIC CAT (TEXTRON) 400 2X4 2004 DVX All Models
• ARCTIC CAT (TEXTRON) 400 2X4 2005 DVX All Models
• ARCTIC CAT (TEXTRON) 400 2X4 2006 DVX All Models
• ARCTIC CAT (TEXTRON) 400 2X4 2007 DVX All Models
• ARCTIC CAT (TEXTRON) 400 2X4 2008 DVX All Models
• KAWASAKI KFX 400 2X4 2003 All Models
• KAWASAKI KFX 400 2X4 2004 All Models
• KAWASAKI KFX 400 2X4 2005 All Models
• KAWASAKI KFX 400 2X4 2006 All Models
• KAWASAKI KLX 400 R 2003 American Models
• KAWASAKI KLX 400 R 2004 American Models
• SUZUKI DR-Z 400 SM 2006 American Models
• SUZUKI DR-Z 400 SM 2007 American Models
• SUZUKI DR-Z 400 SM 2007 European Models
• SUZUKI DR-Z 400 SM 2008 American Models
• SUZUKI DR-Z 400 SM 2008 European Models
• SUZUKI DR-Z 400 SM 2009 American Models
• SUZUKI DR-Z 400 SM 2010 American Models
• SUZUKI DR-Z 400 SM 2011 American Models
• SUZUKI DR-Z 400 SM 2012 American Models
• SUZUKI DR-Z 400 SM 2013 American Models
• SUZUKI DR-Z 400 SM 2014 American Models
• SUZUKI DR-Z 400 SM 2015 American Models
• SUZUKI DR-Z 400 SM 2016 American Models
• SUZUKI DR-Z 400 SM 2017 American Models
• SUZUKI DR-Z 400 SM 2018 American Models
• SUZUKI DR-Z 400 SM 2019 American Models
• SUZUKI DR-Z 400 SM 2020 American Models
• SUZUKI DR-Z 400 SM 2021 American Models
• SUZUKI DR-Z 400 SM 2022 American Models
• SUZUKI DR-Z 400 SM 2023 American Models
• SUZUKI DR-Z 400 2000 American Models
• SUZUKI DR-Z 400 2000 European Models
• SUZUKI DR-Z 400 2001 American Models
• SUZUKI DR-Z 400 2001 European Models
• SUZUKI DR-Z 400 2002 American Models
• SUZUKI DR-Z 400 2002 European Models
• SUZUKI DR-Z 400 2003 American Models
• SUZUKI DR-Z 400 2003 European Models
• SUZUKI DR-Z 400 2004 American Models
• SUZUKI DR-Z 400 2004 European Models
• SUZUKI DR-Z 400 2005 American Models
• SUZUKI LT-Z 400 2X4 2003 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2004 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2005 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2006 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2007 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2008 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2009 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2010 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2011 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2012 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2013 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2014 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2015 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2016 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2017 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2018 Quadsport All Models

Manufacturer part number: 8567DA

View all Wossner. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Wossner Piston Kit For Arctic Cat Textron 400 2X4 2004-2008 Standard Size A
