Product description

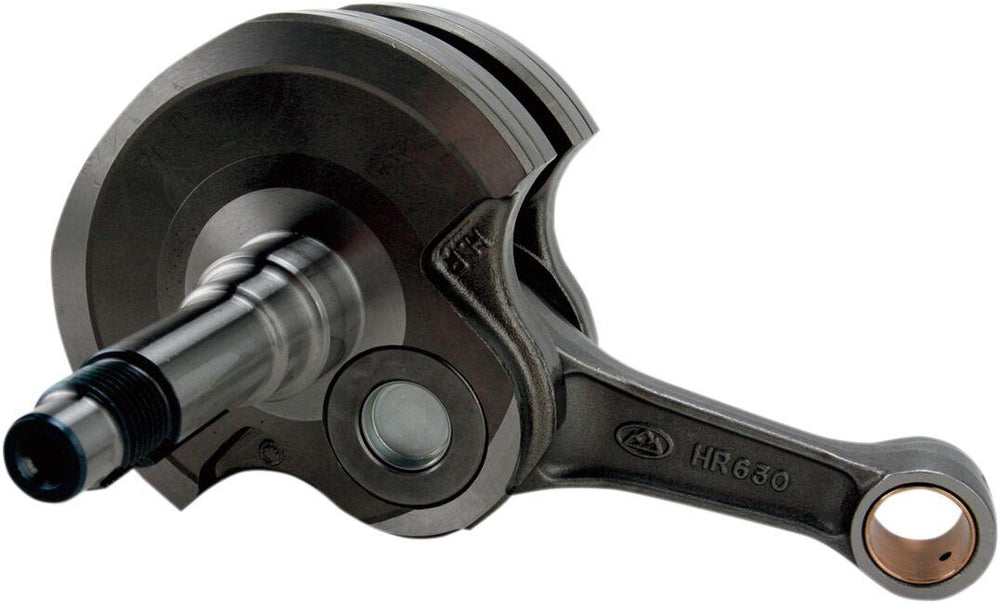

The Hot Rods Stroker Crankshaft For Arctic Cat Textron 400 2X4 2004-2008 is part of the latest collection from Hot Rods.

Features:

• Factory assembled and trued to OEM specifications
• Drop in replacement crankshaft requires no modification unless noted
• CNC machined and dynamically balanced to suit the increased stroke
• Add +2.00 mm to +4.00 mm of stroke depending on application
• Uses stock piston unless noted
• Main bearings not included
• Can be matched with Cylinder Works Big Bore cylinders to get significant displacement and horsepower gains
• Not re-buildable as the rods are shorter than OEM.
Connecting rod side clearance 0.35 mm - 0.55 mm. +4.00 mm stroke increase makes 424 cc. When using Cylinder Works big bore cylinder kit it will make 462 cc. Uses stock piston. Does not fit kickstart applications.

Specifications:

• Color/Finish: Steel
• Displacement: 424 cc
• Features: Heavy Duty Crankshaft
• Material: 4140 Steel
• Model: 4-Cycle
• Product Name: Crankshaft Assembly
• Research Value: Finalized
• Riding Style: Adventure Touring / Dual-Sport| ATV| Off-Road
• Stroke Length Metric: 66.60 mm
• Stroke Length: 66.60 mm
• Type: Stroker
• Units: Assembly

To fit:

• ARCTIC CAT (TEXTRON) 400 2X4 2004 DVX All Models
• ARCTIC CAT (TEXTRON) 400 2X4 2005 DVX All Models
• ARCTIC CAT (TEXTRON) 400 2X4 2006 DVX TS American Models
• ARCTIC CAT (TEXTRON) 400 2X4 2006 DVX All Models
• ARCTIC CAT (TEXTRON) 400 2X4 2007 DVX TS American Models
• ARCTIC CAT (TEXTRON) 400 2X4 2007 DVX All Models
• ARCTIC CAT (TEXTRON) 400 2X4 2008 DVX All Models
• KAWASAKI KFX 400 2X4 2003 All Models
• KAWASAKI KFX 400 2X4 2004 All Models
• KAWASAKI KFX 400 2X4 2005 All Models
• KAWASAKI KFX 400 2X4 2006 All Models
• KAWASAKI KLX 400 R 2003 American Models
• KAWASAKI KLX 400 SR 2003 American Models
• SUZUKI DR-Z 400 E 2000 American Models
• SUZUKI DR-Z 400 E 2000 European Models
• SUZUKI DR-Z 400 E 2001 American Models
• SUZUKI DR-Z 400 E 2001 European Models
• SUZUKI DR-Z 400 E 2002 American Models
• SUZUKI DR-Z 400 E 2002 European Models
• SUZUKI DR-Z 400 E 2003 American Models
• SUZUKI DR-Z 400 E 2003 European Models
• SUZUKI DR-Z 400 E 2004 American Models
• SUZUKI DR-Z 400 E 2004 European Models
• SUZUKI DR-Z 400 E 2005 American Models
• SUZUKI DR-Z 400 E 2005 European Models
• SUZUKI DR-Z 400 E 2006 American Models
• SUZUKI DR-Z 400 E 2007 American Models
• SUZUKI DR-Z 400 SM 2005 American Models
• SUZUKI DR-Z 400 SM 2005 European Models
• SUZUKI DR-Z 400 SM 2006 American Models
• SUZUKI DR-Z 400 SM 2006 European Models
• SUZUKI DR-Z 400 SM 2007 American Models
• SUZUKI DR-Z 400 SM 2007 European Models
• SUZUKI DR-Z 400 SM 2008 American Models
• SUZUKI DR-Z 400 SM 2008 European Models
• SUZUKI DR-Z 400 SM 2009 American Models
• SUZUKI DR-Z 400 SM 2010 American Models
• SUZUKI DR-Z 400 SM 2011 American Models
• SUZUKI DR-Z 400 SM 2012 American Models
• SUZUKI DR-Z 400 SM 2013 American Models
• SUZUKI DR-Z 400 SM 2014 American Models
• SUZUKI DR-Z 400 SM 2015 American Models
• SUZUKI DR-Z 400 S 2000 American Models
• SUZUKI DR-Z 400 S 2000 European Models
• SUZUKI DR-Z 400 S 2001 American Models
• SUZUKI DR-Z 400 S 2001 European Models
• SUZUKI DR-Z 400 S 2002 American Models
• SUZUKI DR-Z 400 S 2002 European Models
• SUZUKI DR-Z 400 S 2003 American Models
• SUZUKI DR-Z 400 S 2003 European Models
• SUZUKI DR-Z 400 S 2004 American Models
• SUZUKI DR-Z 400 S 2004 European Models
• SUZUKI DR-Z 400 S 2005 American Models
• SUZUKI DR-Z 400 S 2005 European Models
• SUZUKI DR-Z 400 S 2006 American Models
• SUZUKI DR-Z 400 S 2006 European Models
• SUZUKI DR-Z 400 S 2007 American Models
• SUZUKI DR-Z 400 S 2008 American Models
• SUZUKI DR-Z 400 S 2009 American Models
• SUZUKI DR-Z 400 S 2010 American Models
• SUZUKI DR-Z 400 S 2011 American Models
• SUZUKI DR-Z 400 S 2012 American Models
• SUZUKI DR-Z 400 S 2013 American Models
• SUZUKI DR-Z 400 2000 American Models
• SUZUKI DR-Z 400 2000 European Models
• SUZUKI DR-Z 400 2001 American Models
• SUZUKI DR-Z 400 2001 European Models
• SUZUKI DR-Z 400 2002 American Models
• SUZUKI DR-Z 400 2002 European Models
• SUZUKI DR-Z 400 2003 American Models
• SUZUKI DR-Z 400 2003 European Models
• SUZUKI DR-Z 400 2004 American Models
• SUZUKI DR-Z 400 2004 European Models
• SUZUKI DR-Z 400 2005 American Models
• SUZUKI LT-Z 400 2X4 2003 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2004 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2005 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2006 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2007 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2008 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2009 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2010 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2011 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2012 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2013 Quadsport All Models
• SUZUKI LT-Z 400 Z 2004 Quadsport LTD All Models
• SUZUKI LT-Z 400 Z 2005 Quadsport LTD All Models
• SUZUKI LT-Z 400 Z 2006 Quadsport LTD All Models
• SUZUKI LT-Z 400 Z 2007 Quadsport LTD All Models
• SUZUKI LT-Z 400 Z 2008 Quadsport LTD All Models
• SUZUKI LT-Z 400 Z 2009 Quadsport LTD All Models
• SUZUKI LT-Z 400 Z 2012 Quadsport LTD All Models

Manufacturer part number: 4259

View all Hot Rods. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot Rods Stroker Crankshaft For Arctic Cat Textron 400 2X4 2004-2008
