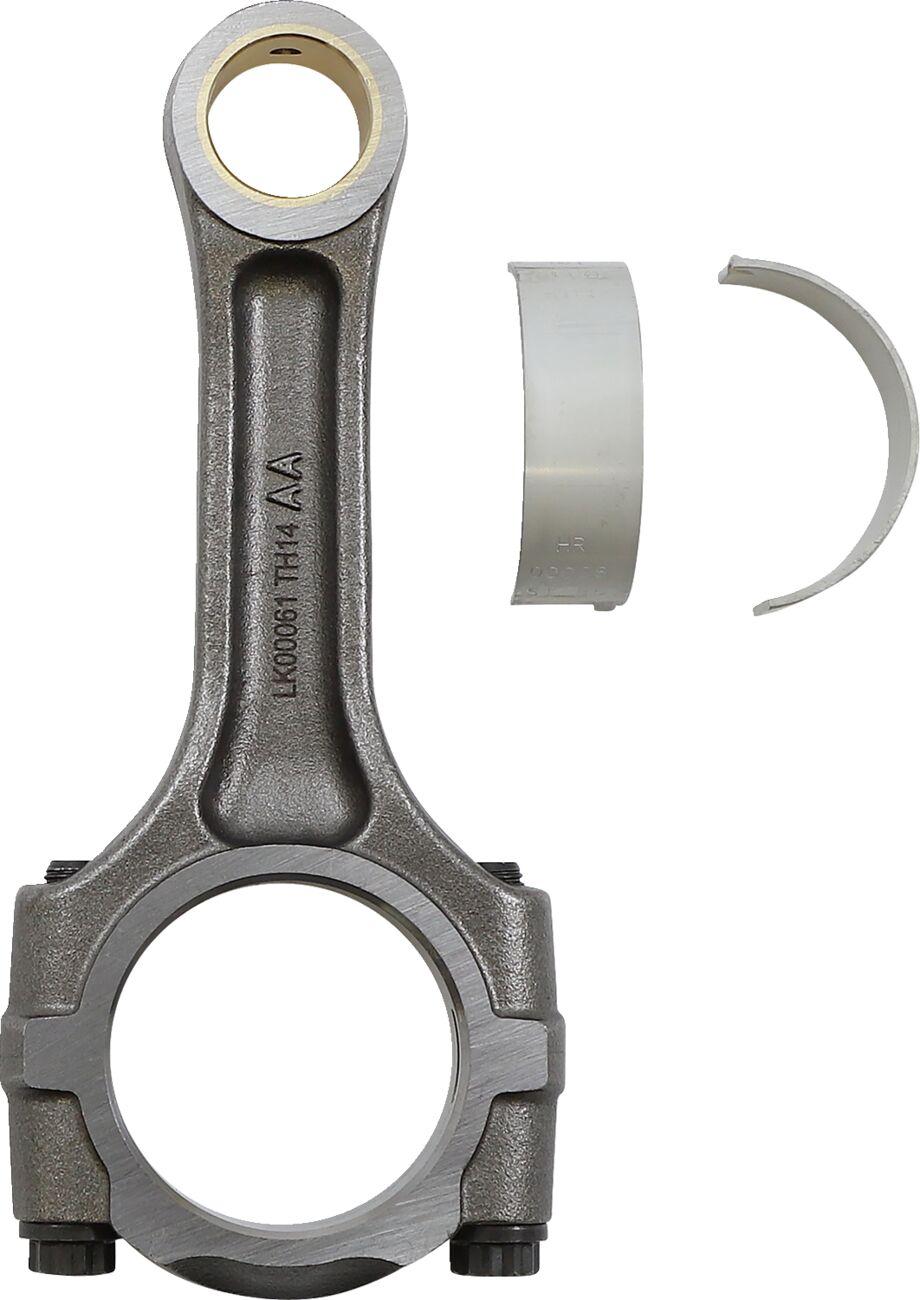

Product description

The Hot Rods Connecting Rod For Can Am Commander 800 R EFI 2012-2019 is part of the latest collection from Hot Rods.

Features:

• Certified 8620 AISI steel provides superior strength
• Uniquely designed big end uses strategically located side scalloping vent slots to minimize high-RPM bearing race distortion
• Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to 58-62Rc
• Hot Rods uses the latest in caged needle roller bearing designs for high RPM longevity
• Thrust washers are manufactured from bronze phosphor and are silver coated
• Rod assembly sold complete with rod, crankpin, crankpin bearing, top-end bearing and thrust washers
• Compatible with Hot Rods and OE crankshafts
• Made in USA
Big End O.D. 61.500 mm Connecting Rod Big End I.D. 43.000 mm Connecting Rod Big End Width: 19.000 mm Connecting Rod Center-to-Center: 117.000 mm Connecting Rod Small End I.D. 20.000 mm Connecting Rod Small End Width: 19.000 mm Small End O.D. 31.000 mm Heavy duty rod. Kit Includes: • Connecting Rod • Crank Pin Bearing

Specifications:

• Displacement: 330 cc| 400 cc| 450 cc| 500 cc| 650 cc| 800 cc
• Engine Type: 4-Cycle
• Material: 8620 Steel
• Product Name: Connecting Rod Kit
• Research Value: Finalized
• Riding Style: ATV| UTV
• Units: Kit

To fit:

• CAN AM (BRP) COMMANDER 800 R 2012 All Models
• CAN AM (BRP) COMMANDER 800 R 2013 DPS American Models
• CAN AM (BRP) COMMANDER 800 R 2013 XT DPS American Models
• CAN AM (BRP) COMMANDER 800 R 2013 All Models
• CAN AM (BRP) COMMANDER 800 R 2015 DPS All Models
• CAN AM (BRP) COMMANDER 800 R 2015 XT DPS All Models
• CAN AM (BRP) COMMANDER 800 R 2015 All Models
• CAN AM (BRP) COMMANDER 800 R 2016 All Models
• CAN AM (BRP) COMMANDER 800 R 2017 All Models
• CAN AM (BRP) COMMANDER 800 R 2018 All Models
• CAN AM (BRP) COMMANDER 800 R 2019 American Models
• CAN AM (BRP) DEFENDER HD10 4X4 2017 All Models
• CAN AM (BRP) DEFENDER HD8 4X4 2016 All Models
• CAN AM (BRP) DEFENDER HD8 4X4 2017 All Models
• CAN AM (BRP) DEFENDER HD8 4X4 2018 Max All Models
• CAN AM (BRP) DEFENDER HD8 4X4 2018 All Models
• CAN AM (BRP) DEFENDER HD8 4X4 2019 Max American Models
• CAN AM (BRP) DEFENDER HD8 4X4 2019 American Models
• CAN AM (BRP) MAVERICK TRAIL 800 2018 All Models
• CAN AM (BRP) MAVERICK TRAIL 800 2019 DPS American Models
• CAN AM (BRP) MAVERICK TRAIL 800 2019 American Models
• CAN AM (BRP) OUTLANDER 330 HO 2004 All Models
• CAN AM (BRP) OUTLANDER 330 HO 2005 All Models
• CAN AM (BRP) OUTLANDER 400 EFI 2008 Max XT All Models
• CAN AM (BRP) OUTLANDER 400 EFI 2008 Max All Models
• CAN AM (BRP) OUTLANDER 400 EFI 2009 Max All Models
• CAN AM (BRP) OUTLANDER 400 EFI 2010 Max All Models
• CAN AM (BRP) OUTLANDER 400 EFI 2011 Max All Models
• CAN AM (BRP) OUTLANDER 400 EFI 2012 Max XT All Models
• CAN AM (BRP) OUTLANDER 400 EFI 2012 Max All Models
• CAN AM (BRP) OUTLANDER 400 EFI 2013 Max XT All Models
• CAN AM (BRP) OUTLANDER 400 EFI 2013 Max All Models
• CAN AM (BRP) OUTLANDER 400 EFI 2014 Max XT All Models
• CAN AM (BRP) OUTLANDER 400 EFI 2014 Max All Models
• CAN AM (BRP) OUTLANDER 400 HO 2003 All Models
• CAN AM (BRP) OUTLANDER 400 HO 2004 Max All Models
• CAN AM (BRP) OUTLANDER 400 HO 2004 All Models
• CAN AM (BRP) OUTLANDER 400 HO 2005 Max All Models
• CAN AM (BRP) OUTLANDER 400 HO 2005 All Models
• CAN AM (BRP) OUTLANDER 400 HO 2006 Max XT All Models
• CAN AM (BRP) OUTLANDER 400 HO 2006 Max All Models
• CAN AM (BRP) OUTLANDER 400 HO 2006 All Models
• CAN AM (BRP) OUTLANDER 400 HO 2007 Max XT All Models
• CAN AM (BRP) OUTLANDER 400 HO 2007 Max All Models
• CAN AM (BRP) OUTLANDER 400 HO 2007 All Models
• CAN AM (BRP) OUTLANDER 400 HO 2008 Max XT All Models
• CAN AM (BRP) OUTLANDER 400 HO 2008 Max All Models
• CAN AM (BRP) OUTLANDER 400 HO 2008 All Models
• CAN AM (BRP) OUTLANDER 450 EFI 2017 Max DPS All Models
• CAN AM (BRP) OUTLANDER 450 EFI 2017 Max All Models
• CAN AM (BRP) OUTLANDER 450 EFI 2019 DPS American Models
• CAN AM (BRP) OUTLANDER 450 EFI 2019 Max DPS American Models
• CAN AM (BRP) OUTLANDER 450 EFI 2019 Max American Models
• CAN AM (BRP) OUTLANDER 650 EFI 2006 Max All Models
• CAN AM (BRP) OUTLANDER 650 EFI 2006 XT All Models
• CAN AM (BRP) OUTLANDER 650 EFI 2006 All Models
• CAN AM (BRP) OUTLANDER 650 EFI 2007 Max All Models
• CAN AM (BRP) OUTLANDER 650 EFI 2007 XT All Models
• CAN AM (BRP) OUTLANDER 650 EFI 2007 All Models
• CAN AM (BRP) OUTLANDER 650 EFI 2008 Max All Models
• CAN AM (BRP) OUTLANDER 650 EFI 2008 XT All Models
• CAN AM (BRP) OUTLANDER 650 EFI 2008 All Models
• CAN AM (BRP) OUTLANDER 650 EFI 2011 Max All Models
• CAN AM (BRP) OUTLANDER 650 EFI 2011 XT All Models
• CAN AM (BRP) OUTLANDER 650 EFI 2011 All Models
• CAN AM (BRP) OUTLANDER 650 EFI 2012 Max American Models
• CAN AM (BRP) OUTLANDER 650 EFI 2012 XT All Models
• CAN AM (BRP) OUTLANDER 650 EFI 2012 American Models
• CAN AM (BRP) OUTLANDER 650 EFI 2013 DPS American Models
• CAN AM (BRP) OUTLANDER 650 EFI 2013 Max DPS American Models
• CAN AM (BRP) OUTLANDER 650 EFI 2013 Max All Models
• CAN AM (BRP) OUTLANDER 650 EFI 2013 X MR DPS American Models
• CAN AM (BRP) OUTLANDER 650 EFI 2013 X MR All Models
• CAN AM (BRP) OUTLANDER 650 EFI 2013 XT DPS All Models
• CAN AM (BRP) OUTLANDER 650 EFI 2013 American Models
• CAN AM (BRP) OUTLANDER 650 EFI 2014 DPS American Models
• CAN AM (BRP) OUTLANDER 650 EFI 2014 Max DPS American Models
• CAN AM (BRP) OUTLANDER 650 EFI 2014 Max All Models
• CAN AM (BRP) OUTLANDER 650 EFI 2014 X MR DPS American Models
• CAN AM (BRP) OUTLANDER 650 EFI 2014 XT DPS All Models
• CAN AM (BRP) OUTLANDER 650 EFI 2014 American Models
• CAN AM (BRP) OUTLANDER 650 EFI 2015 Max DPS All Models
• CAN AM (BRP) OUTLANDER 650 EFI 2015 Max All Models
• CAN AM (BRP) OUTLANDER 650 EFI 2015 X MR DPS All Models
• CAN AM (BRP) OUTLANDER 650 EFI 2015 XT DPS All Models
• CAN AM (BRP) OUTLANDER 650 EFI 2015 All Models
• CAN AM (BRP) OUTLANDER 650 EFI 2016 Max DPS All Models
• CAN AM (BRP) OUTLANDER 650 EFI 2016 XT DPS All Models
• CAN AM (BRP) OUTLANDER 650 EFI 2016 All Models
• CAN AM (BRP) OUTLANDER 650 EFI 2017 DPS All Models
• CAN AM (BRP) OUTLANDER 650 EFI 2017 XT DPS All Models
• CAN AM (BRP) OUTLANDER 650 EFI 2017 All Models
• CAN AM (BRP) OUTLANDER 650 EFI 2018 DPS All Models
• CAN AM (BRP) OUTLANDER 650 EFI 2018 Max DPS All Models
• CAN AM (BRP) OUTLANDER 650 EFI 2018 All Models
• CAN AM (BRP) OUTLANDER 650 EFI 2019 DPS All Models
• CAN AM (BRP) OUTLANDER 650 EFI 2019 Max DPS American Models
• CAN AM (BRP) OUTLANDER 650 EFI 2019 American Models
• CAN AM (BRP) OUTLANDER 650 R 2009 Max All Models
• CAN AM (BRP) OUTLANDER 650 R 2009 XT All Models
• CAN AM (BRP) OUTLANDER 650 R 2010 Max All Models
• CAN AM (BRP) OUTLANDER 800 EFI 2006 Max XT All Models
• CAN AM (BRP) OUTLANDER 800 EFI 2006 Max All Models
• CAN AM (BRP) OUTLANDER 800 EFI 2006 XT All Models
• CAN AM (BRP) OUTLANDER 800 EFI 2006 All Models
• CAN AM (BRP) OUTLANDER 800 EFI 2007 Max LTD All Models
• CAN AM (BRP) OUTLANDER 800 EFI 2007 Max XT All Models
• CAN AM (BRP) OUTLANDER 800 EFI 2007 Max All Models
• CAN AM (BRP) OUTLANDER 800 EFI 2007 XT All Models
• CAN AM (BRP) OUTLANDER 800 EFI 2007 All Models
• CAN AM (BRP) OUTLANDER 800 EFI 2008 Max LTD All Models
• CAN AM (BRP) OUTLANDER 800 EFI 2008 Max XT All Models
• CAN AM (BRP) OUTLANDER 800 EFI 2008 Max All Models
• CAN AM (BRP) OUTLANDER 800 EFI 2008 XT All Models
• CAN AM (BRP) OUTLANDER 800 EFI 2008 All Models
• CAN AM (BRP) OUTLANDER 800 R 2009 Max LTD All Models
• CAN AM (BRP) OUTLANDER 800 R 2009 Max XT All Models
• CAN AM (BRP) OUTLANDER 800 R 2009 Max All Models
• CAN AM (BRP) OUTLANDER 800 R 2009 XT All Models
• CAN AM (BRP) OUTLANDER 800 R 2009 All Models
• CAN AM (BRP) OUTLANDER 800 R 2010 Max LTD All Models
• CAN AM (BRP) OUTLANDER 800 R 2010 Max All Models
• CAN AM (BRP) OUTLANDER 800 R 2010 All Models
• CAN AM (BRP) OUTLANDER 800 R 2011 Max LTD All Models
• CAN AM (BRP) OUTLANDER 800 R 2011 Max All Models
• CAN AM (BRP) OUTLANDER 800 R 2011 X XC All Models
• CAN AM (BRP) OUTLANDER 800 R 2011 All Models
• CAN AM (BRP) OUTLANDER 800 R 2012 Max LTD All Models
• CAN AM (BRP) OUTLANDER 800 R 2012 Max XT All Models
• CAN AM (BRP) OUTLANDER 800 R 2012 Max American Models
• CAN AM (BRP) OUTLANDER 800 R 2012 X MR All Models
• CAN AM (BRP) OUTLANDER 800 R 2012 XT All Models
• CAN AM (BRP) OUTLANDER 800 R 2012 American Models
• CAN AM (BRP) OUTLANDER 800 R 2013 DPS American Models
• CAN AM (BRP) OUTLANDER 800 R 2013 Max DPS All Models
• CAN AM (BRP) OUTLANDER 800 R 2013 Max XT DPS American Models
• CAN AM (BRP) OUTLANDER 800 R 2013 XT DPS All Models
• CAN AM (BRP) OUTLANDER 800 R 2013 Xt-P DPS American Models
• CAN AM (BRP) OUTLANDER 800 R 2013 American Models
• CAN AM (BRP) OUTLANDER 800 R 2014 DPS American Models
• CAN AM (BRP) OUTLANDER 800 R 2014 Max DPS All Models
• CAN AM (BRP) OUTLANDER 800 R 2014 Max XT DPS American Models
• CAN AM (BRP) OUTLANDER 800 R 2014 XT DPS All Models
• CAN AM (BRP) OUTLANDER 800 R 2014 Xt-P DPS American Models
• CAN AM (BRP) OUTLANDER 800 R 2014 American Models
• CAN AM (BRP) OUTLANDER 800 R 2015 X MR DPS All Models
• CAN AM (BRP) OUTLANDER 800 R 2015 All Models
• CAN AM (BRP) OUTLANDER 850 EFI 2016 DPS All Models
• CAN AM (BRP) OUTLANDER 850 EFI 2017 DPS All Models
• CAN AM (BRP) OUTLANDER 850 EFI 2018 DPS All Models
• CAN AM (BRP) OUTLANDER 850 EFI 2018 Max North Edition All Models
• CAN AM (BRP) OUTLANDER L 450 2015 Max DPS All Models
• CAN AM (BRP) OUTLANDER L 450 2015 Max All Models
• CAN AM (BRP) OUTLANDER L 450 2015 All Models
• CAN AM (BRP) OUTLANDER L 450 2016 Max DPS All Models
• CAN AM (BRP) OUTLANDER L 450 2016 Max All Models
• CAN AM (BRP) RENEGADE 800 EFI 2007 All Models
• CAN AM (BRP) RENEGADE 800 EFI 2008 X All Models
• CAN AM (BRP) RENEGADE 800 EFI 2008 All Models
• CAN AM (BRP) RENEGADE 800 R 2009 All Models
• CAN AM (BRP) RENEGADE 800 R 2010 X XC All Models
• CAN AM (BRP) RENEGADE 800 R 2010 All Models
• CAN AM (BRP) RENEGADE 800 R 2011 X XC All Models
• CAN AM (BRP) RENEGADE 800 R 2011 All Models
• CAN AM (BRP) RENEGADE 800 R 2012 X XC American Models
• CAN AM (BRP) RENEGADE 800 R 2012 All Models
• CAN AM (BRP) RENEGADE 800 R 2013 X XC DPS American Models
• CAN AM (BRP) RENEGADE 800 R 2013 All Models
• CAN AM (BRP) RENEGADE 800 R 2014 X XC DPS American Models
• CAN AM (BRP) RENEGADE 800 R 2014 All Models
• CAN AM (BRP) RENEGADE 800 R 2015 All Models
• CAN AM (BRP) RENEGADE 850 EFI 2016 All Models
• CAN AM (BRP) RENEGADE 850 EFI 2017 All Models
• CAN AM (BRP) RENEGADE 850 EFI 2018 All Models
• CAN AM (BRP) RENEGADE 850 EFI 2019 American Models

Manufacturer part number: HR00062

View all Hot Rods. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot Rods Connecting Rod For Can Am Commander 800 R EFI 2012-2019
