Product description

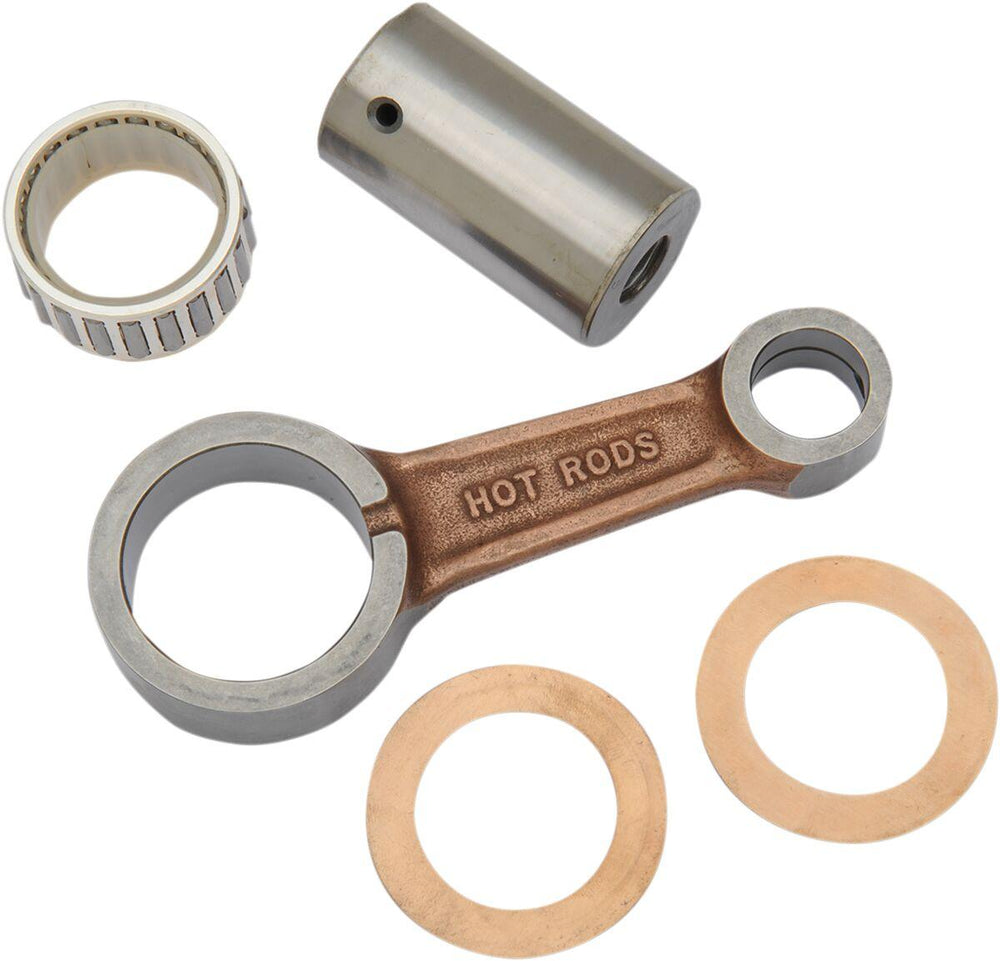

The Hot Rods Connecting Rod Kit For Yamaha YFZ450 2012-2013 is part of the latest collection from Hot Rods.

Features:

• Heavy-duty OE replacement connecting rods
• Certified 8620 AISI steel provides superior strength
• Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
• Features the latest in caged needle roller bearing designs for high rpm longevity
• Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
• Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
• Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
• Double honing produces an ultra-round bearing surface for reliability at high rpm
• Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
• Made in the USA
• Compatible with Hot Rods and OE crankshafts.
Connecting Rod Big End I.D. 42.000 mm Connecting Rod Big End Width: 19.950 mm Connecting Rod Center-to-Center: 101.500 mm Connecting Rod Small End I.D. 20.000 mm Connecting Rod Small End Width: 18.050 mm Thrust Washer Thickness: 0.500 mm Pin Length: 60.800 mm Not for fuel injected R or X models. Kit Includes: • Connecting Rod • Crank Pin • Crank Pin Bearing • Thrust Washers

Specifications:

• Displacement: 450 cc
• Engine Type: 4-Cycle
• Material: 8620 Steel
• Product Name: Connecting Rod Kit
• Research Value: Finalized
• Riding Style: ATV
• Units: Kit

To fit:

• YAMAHA YFZ 450 BB 2006 Bill Ballance Edition American Models
• YAMAHA YFZ 450 BB 2007 Bill Ballance Edition American Models
• YAMAHA YFZ 450 SE 2007 Special Edition American Models
• YAMAHA YFZ 450 SP2 2008 Special Edition 2 American Models
• YAMAHA YFZ 450 SPE2 2007 Special Edition 2 American Models
• YAMAHA YFZ 450 SP 2006 Special Edition American Models
• YAMAHA YFZ 450 SP 2008 Special Edition American Models
• YAMAHA YFZ 450 2006 American Models
• YAMAHA YFZ 450 2007 American Models
• YAMAHA YFZ 450 2008 American Models
• YAMAHA YFZ 450 2009 American Models
• YAMAHA YFZ 450 2012 All Models
• YAMAHA YFZ 450 2013 All Models

Manufacturer part number: 8641

View all Hot Rods. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot Rods Connecting Rod Kit For Yamaha YFZ450 2012-2013
