Product description

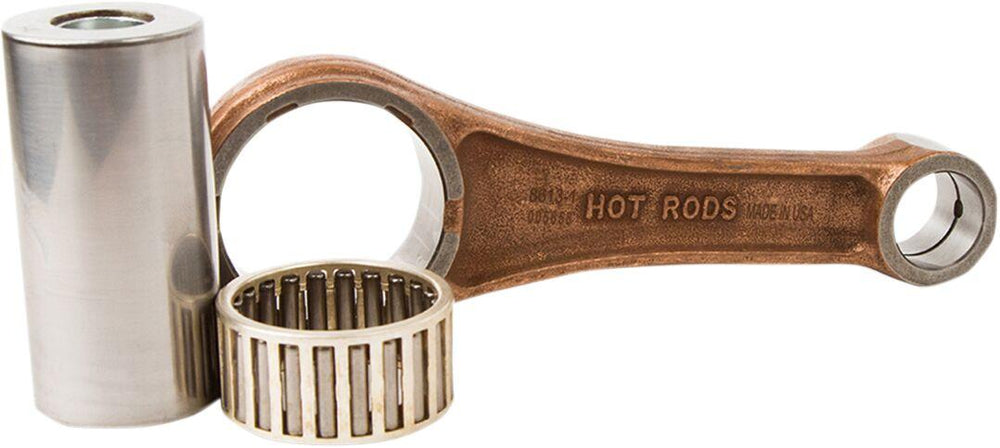

The Hot Rods Connecting Rod Kit For Yamaha YFM 660 F 4X4 Grizzly 2002-2004 is part of the latest collection from Hot Rods.

Features:

• Heavy-duty OE replacement connecting rods
• Certified 8620 AISI steel provides superior strength
• Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
• Features the latest in caged needle roller bearing designs for high rpm longevity
• Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
• Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
• Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
• Double honing produces an ultra-round bearing surface for reliability at high rpm
• Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
• Made in the USA
• Compatible with Hot Rods and OE crankshafts.
Connecting Rod Big End I.D. 45.000 mm Connecting Rod Big End Width: 21.970 mm Connecting Rod Center-to-Center: 136.500 mm Connecting Rod Small End I.D. 22.000 mm Connecting Rod Small End Width: 21.970 mm Pin Length: 73.900 mm Kit Includes: • Connecting Rod • Crank Pin • Crank Pin Bearing

Specifications:

• Displacement: 660 cc
• Material: 8620 Steel
• Research Value: Finalized
• Riding Style: ATV| UTV
• Units: Kit

To fit:

• YAMAHA YFM 660 FAHD 2006 Grizzly Hunter Ducks Unlimited Edition American Models
• YAMAHA YFM 660 FAHW 2005 Grizzly Hunter Wetland Edition American Models
• YAMAHA YFM 660 FAH 2005 Grizzly Hunter American Models
• YAMAHA YFM 660 FAH 2006 Grizzly Hunter American Models
• YAMAHA YFM 660 FA 2005 Grizzly Special Edition American Models
• YAMAHA YFM 660 FA 2005 Grizzly American Models
• YAMAHA YFM 660 FA 2006 Grizzly Special Edition American Models
• YAMAHA YFM 660 FA 2006 Grizzly American Models
• YAMAHA YFM 660 FGH 2007 Grizzly Hunter American Models
• YAMAHA YFM 660 FGH 2008 Grizzly Hunter American Models
• YAMAHA YFM 660 FG 2007 Grizzly American Models
• YAMAHA YFM 660 FG 2008 Grizzly American Models
• YAMAHA YFM 660 FH 2002 Grizzly Hunter American Models
• YAMAHA YFM 660 FH 2003 Grizzly Hunter Realtree Hardwood American Models
• YAMAHA YFM 660 FH 2003 Grizzly Hunter Wetland Edition American Models
• YAMAHA YFM 660 FH 2004 Grizzly Hunter Hardwoods Camo American Models
• YAMAHA YFM 660 FH 2004 Grizzly Hunter Wetland Edition American Models
• YAMAHA YFM 660 F 2002 Grizzly Silver American Models
• YAMAHA YFM 660 F 2002 Grizzly American Models
• YAMAHA YFM 660 F 2003 Grizzly Titanium American Models
• YAMAHA YFM 660 F 2003 Grizzly American Models
• YAMAHA YFM 660 F 2004 Grizzly Limited Edition American Models
• YAMAHA YFM 660 F 2004 Grizzly American Models
• YAMAHA YFM 660 R 2002 Raptor American Models
• YAMAHA YFM 660 R 2003 Raptor Limited Edition American Models
• YAMAHA YFM 660 R 2003 Raptor American Models
• YAMAHA YFM 660 R 2004 Raptor Limited Edition American Models
• YAMAHA YFM 660 R 2004 Raptor American Models
• YAMAHA YFM 660 R 2005 Raptor Special Edition American Models
• YAMAHA YFM 660 R 2005 Raptor American Models
• YAMAHA YXR 660 FAH 2004 Rhino Hunter Hardwoods Camo American Models
• YAMAHA YXR 660 FAH 2005 Rhino Hunter Hardwoods Camo American Models
• YAMAHA YXR 660 FAH 2006 Rhino Hunter American Models
• YAMAHA YXR 660 FA 2004 Rhino American Models
• YAMAHA YXR 660 FA 2005 Rhino American Models
• YAMAHA YXR 660 FA 2006 Rhino Exploring Edition American Models
• YAMAHA YXR 660 FA 2006 Rhino Special Edition American Models
• YAMAHA YXR 660 FA 2006 Rhino American Models
• YAMAHA YXR 660 FH 2007 Rhino Hunter Hardwoods Camo American Models
• YAMAHA YXR 660 F 2007 Rhino Ducks Unlimited Edition American Models
• YAMAHA YXR 660 F 2007 Rhino Exploring Edition American Models
• YAMAHA YXR 660 F 2007 Rhino Special Edition American Models
• YAMAHA YXR 660 F 2007 Rhino Sport Edition American Models
• YAMAHA YXR 660 F 2007 Rhino American Models

Manufacturer part number: 8614

View all Hot Rods. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot Rods Connecting Rod Kit For Yamaha YFM 660 F 4X4 Grizzly 2002-2004
