Product description

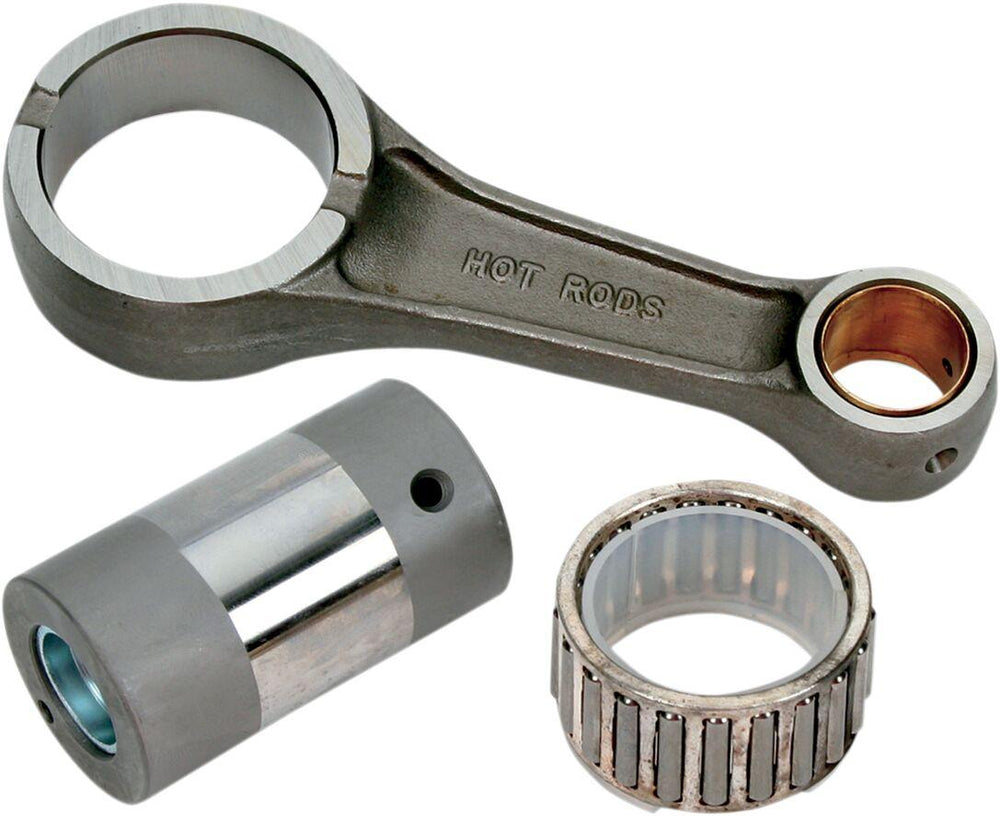

The Hot Rods Connecting Rod Kit For Arctic Cat Textron 400 2X4 2004-2008 is part of the latest collection from Hot Rods.

Features:

• Heavy-duty OE replacement connecting rods
• Certified 8620 AISI steel provides superior strength
• Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
• Features the latest in caged needle roller bearing designs for high rpm longevity
• Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
• Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
• Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
• Double honing produces an ultra-round bearing surface for reliability at high rpm
• Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
• Made in the USA
• Compatible with Hot Rods and OE crankshafts.
Connecting Rod Big End I.D. 43.000 mm Connecting Rod Big End Width: 21.800 mm Connecting Rod Center-to-Center: 107.000mm Connecting Rod Small End I.D. 20.000 mm Connecting Rod Small End Width: 20.000 mm Pin Length: 61.800 mm Kit Includes: • Connecting Rod • Crank Pin • Crank Pin Bearing

Specifications:

• Displacement: 400 cc
• Engine Type: 4-Cycle
• Material: 8620 Steel
• Product Name: Connecting Rod Kit
• Research Value: Finalized
• Riding Style: Adventure Touring / Dual-Sport| ATV| Off-Road
• Units: Kit

To fit:

• ARCTIC CAT (TEXTRON) 400 2X4 2004 DVX All Models
• ARCTIC CAT (TEXTRON) 400 2X4 2005 DVX All Models
• ARCTIC CAT (TEXTRON) 400 2X4 2006 DVX TS American Models
• ARCTIC CAT (TEXTRON) 400 2X4 2006 DVX All Models
• ARCTIC CAT (TEXTRON) 400 2X4 2007 DVX TS American Models
• ARCTIC CAT (TEXTRON) 400 2X4 2007 DVX All Models
• ARCTIC CAT (TEXTRON) 400 2X4 2008 DVX All Models
• KAWASAKI KFX 400 2X4 2003 All Models
• KAWASAKI KFX 400 2X4 2004 All Models
• KAWASAKI KFX 400 2X4 2005 All Models
• KAWASAKI KFX 400 2X4 2006 All Models
• KAWASAKI KLX 400 R 2003 American Models
• KAWASAKI KLX 400 SR 2003 American Models
• SUZUKI DR-Z 400 E 2000 American Models
• SUZUKI DR-Z 400 E 2000 European Models
• SUZUKI DR-Z 400 E 2001 American Models
• SUZUKI DR-Z 400 E 2001 European Models
• SUZUKI DR-Z 400 E 2002 American Models
• SUZUKI DR-Z 400 E 2002 European Models
• SUZUKI DR-Z 400 E 2003 American Models
• SUZUKI DR-Z 400 E 2003 European Models
• SUZUKI DR-Z 400 E 2004 American Models
• SUZUKI DR-Z 400 E 2004 European Models
• SUZUKI DR-Z 400 E 2005 American Models
• SUZUKI DR-Z 400 E 2005 European Models
• SUZUKI DR-Z 400 E 2006 American Models
• SUZUKI DR-Z 400 E 2007 American Models
• SUZUKI DR-Z 400 SM 2005 American Models
• SUZUKI DR-Z 400 SM 2005 European Models
• SUZUKI DR-Z 400 SM 2006 American Models
• SUZUKI DR-Z 400 SM 2006 European Models
• SUZUKI DR-Z 400 SM 2007 American Models
• SUZUKI DR-Z 400 SM 2007 European Models
• SUZUKI DR-Z 400 SM 2008 American Models
• SUZUKI DR-Z 400 SM 2008 European Models
• SUZUKI DR-Z 400 SM 2009 American Models
• SUZUKI DR-Z 400 SM 2010 American Models
• SUZUKI DR-Z 400 SM 2011 American Models
• SUZUKI DR-Z 400 SM 2012 American Models
• SUZUKI DR-Z 400 SM 2013 American Models
• SUZUKI DR-Z 400 S 2000 American Models
• SUZUKI DR-Z 400 S 2000 European Models
• SUZUKI DR-Z 400 S 2001 American Models
• SUZUKI DR-Z 400 S 2001 European Models
• SUZUKI DR-Z 400 S 2002 American Models
• SUZUKI DR-Z 400 S 2002 European Models
• SUZUKI DR-Z 400 S 2003 American Models
• SUZUKI DR-Z 400 S 2003 European Models
• SUZUKI DR-Z 400 S 2004 American Models
• SUZUKI DR-Z 400 S 2004 European Models
• SUZUKI DR-Z 400 S 2005 American Models
• SUZUKI DR-Z 400 S 2005 European Models
• SUZUKI DR-Z 400 S 2006 American Models
• SUZUKI DR-Z 400 S 2006 European Models
• SUZUKI DR-Z 400 S 2007 American Models
• SUZUKI DR-Z 400 S 2008 American Models
• SUZUKI DR-Z 400 S 2009 American Models
• SUZUKI DR-Z 400 S 2010 American Models
• SUZUKI DR-Z 400 S 2011 American Models
• SUZUKI DR-Z 400 S 2012 American Models
• SUZUKI DR-Z 400 S 2013 American Models
• SUZUKI DR-Z 400 2000 American Models
• SUZUKI DR-Z 400 2000 European Models
• SUZUKI DR-Z 400 2001 American Models
• SUZUKI DR-Z 400 2001 European Models
• SUZUKI DR-Z 400 2002 American Models
• SUZUKI DR-Z 400 2002 European Models
• SUZUKI DR-Z 400 2003 American Models
• SUZUKI DR-Z 400 2003 European Models
• SUZUKI DR-Z 400 2004 American Models
• SUZUKI DR-Z 400 2004 European Models
• SUZUKI DR-Z 400 2005 American Models
• SUZUKI LT-Z 400 2X4 2003 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2004 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2005 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2006 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2007 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2008 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2009 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2010 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2011 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2012 Quadsport All Models
• SUZUKI LT-Z 400 2X4 2013 Quadsport All Models
• SUZUKI LT-Z 400 Z 2004 Quadsport LTD All Models
• SUZUKI LT-Z 400 Z 2005 Quadsport LTD All Models
• SUZUKI LT-Z 400 Z 2006 Quadsport LTD All Models
• SUZUKI LT-Z 400 Z 2007 Quadsport LTD All Models
• SUZUKI LT-Z 400 Z 2008 Quadsport LTD All Models
• SUZUKI LT-Z 400 Z 2009 Quadsport LTD All Models
• SUZUKI LT-Z 400 Z 2012 Quadsport LTD All Models

Manufacturer part number: 8630

View all Hot Rods. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot Rods Connecting Rod Kit For Arctic Cat Textron 400 2X4 2004-2008
