Product description

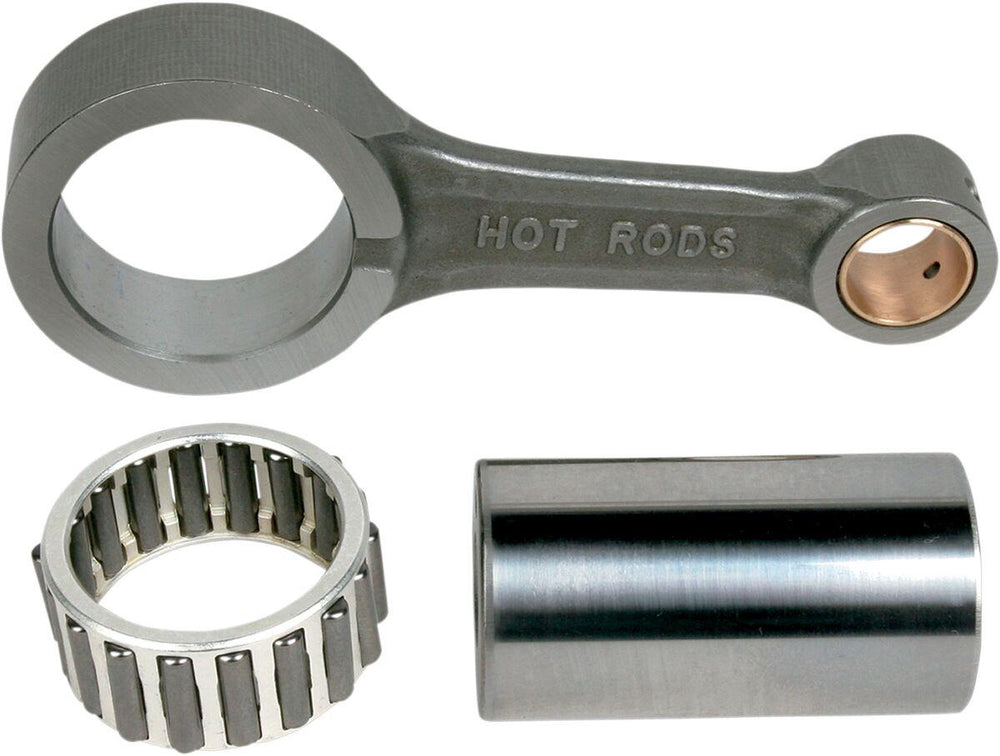

The Hot Rods Connecting Rod Kit For Suzuki RMZ250 2007-2013 is part of the latest collection from Hot Rods.

Features:

• Heavy-duty OE replacement connecting rods
• Certified 8620 AISI steel provides superior strength
• Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
• Features the latest in caged needle roller bearing designs for high rpm longevity
• Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
• Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
• Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
• Double honing produces an ultra-round bearing surface for reliability at high rpm
• Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
• Made in the USA
• Compatible with Hot Rods and OE crankshafts.
Heavy-duty

Specifications:

• Material: 8620 Steel
• Product Name: Connecting Rod Kit
• Research Value: Finalized
• Riding Style: Off-Road
• Units: Kit

To fit:

• SUZUKI RM-Z 250 2007 American Models
• SUZUKI RM-Z 250 2007 European Models
• SUZUKI RM-Z 250 2008 All Models
• SUZUKI RM-Z 250 2009 All Models
• SUZUKI RM-Z 250 2010 All Models
• SUZUKI RM-Z 250 2011 All Models
• SUZUKI RM-Z 250 2012 All Models
• SUZUKI RM-Z 250 2013 All Models

Manufacturer part number: 8653

View all Hot Rods. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot Rods Connecting Rod Kit For Suzuki RMZ250 2007-2013
