Product description

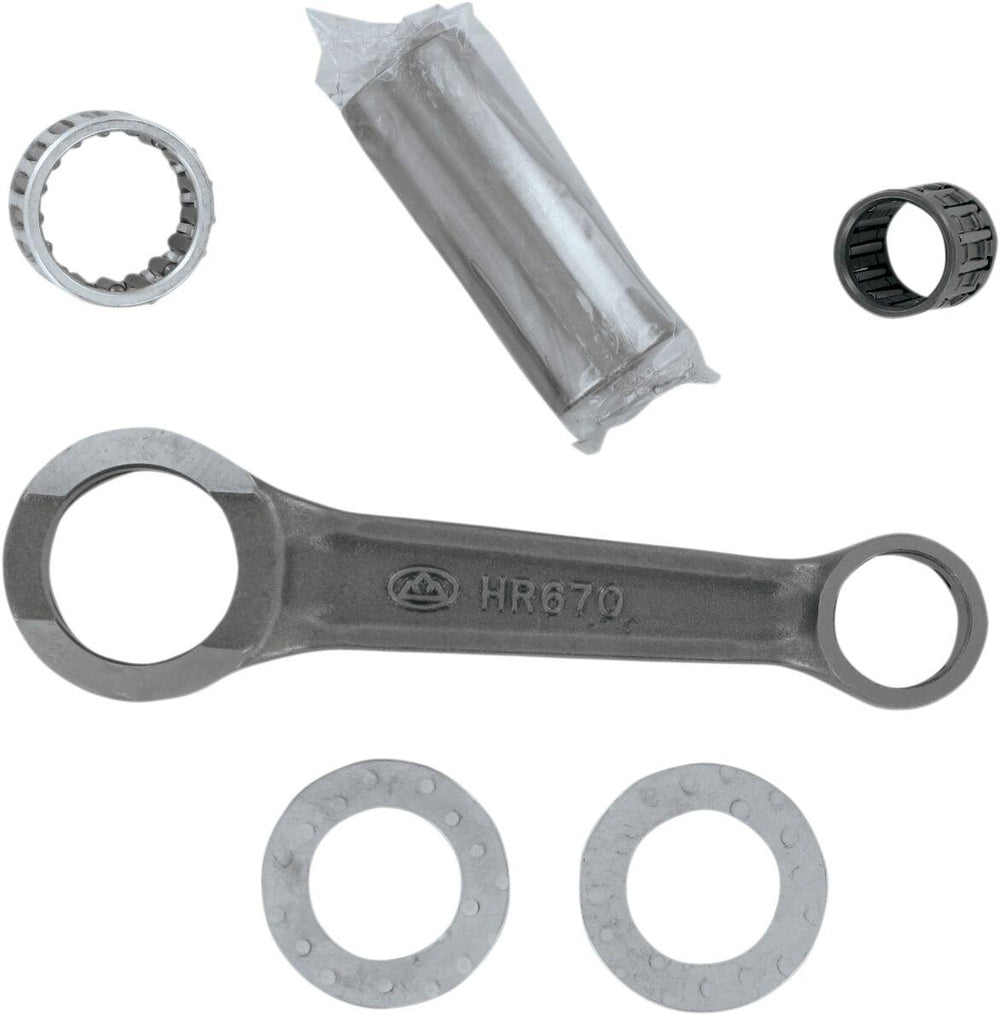

The Hot Rods Connecting Rod Kit For KTM EXC125 2007-2009 is part of the latest collection from Hot Rods.

Features:

• Heavy-duty OE replacement connecting rods
• Certified 8620 AISI steel provides superior strength
• Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
• Features the latest in caged needle roller bearing designs for high rpm longevity
• Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
• Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
• Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
• Double honing produces an ultra-round bearing surface for reliability at high rpm
• Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
• Made in the USA
• Compatible with Hot Rods and OE crankshafts.
Connecting Rod Big End I.D. 28.000 mm Connecting Rod Big End Width: 15.900 mm Connecting Rod Center-to-Center: 110.000 mm Connecting Rod Small End I.D. 19.000 mm Connecting Rod Small End Width: 15.900 mm Thrust Washer Thickness 1.00 mm Pin Length: 55.000 mm Kit Includes: • Connecting Rod • Crank Pin • Crank Pin Bearing • Wrist Pin Bearing • Thrust Washers

Specifications:

• Displacement: 125 cc| 144 cc| 150 cc
• Engine Type: 2-Cycle
• Material: 8620 Steel
• Product Name: Connecting Rod Kit
• Research Value: Finalized
• Riding Style: Off-Road
• Units: Kit

To fit:

• KTM EXC 125 2007 Sixdays All Models
• KTM EXC 125 2007 All Models
• KTM EXC 125 2008 Sixdays All Models
• KTM EXC 125 2008 All Models
• KTM EXC 125 2009 Sixdays All Models
• KTM EXC 125 2009 All Models
• KTM SX 125 2007 All Models
• KTM SX 125 2008 All Models
• KTM SX 125 2009 All Models
• KTM SX 125 2010 All Models
• KTM SX 125 2011 All Models
• KTM SX 125 2012 All Models
• KTM SX 125 2013 All Models
• KTM SX 125 2014 All Models
• KTM SX 144 2007 American Models
• KTM SX 144 2008 American Models
• KTM SX 150 2009 All Models
• KTM SX 150 2010 All Models
• KTM SX 150 2011 All Models
• KTM SX 150 2012 All Models
• KTM SX 150 2013 All Models
• KTM SX 150 2014 All Models
• KTM XC 150 2011 American Models
• KTM XC 150 2012 American Models
• KTM XC 150 2013 American Models
• KTM XC 150 2014 American Models

Manufacturer part number: 8670

View all Hot Rods. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot Rods Connecting Rod Kit For KTM EXC125 2007-2009
