Product description

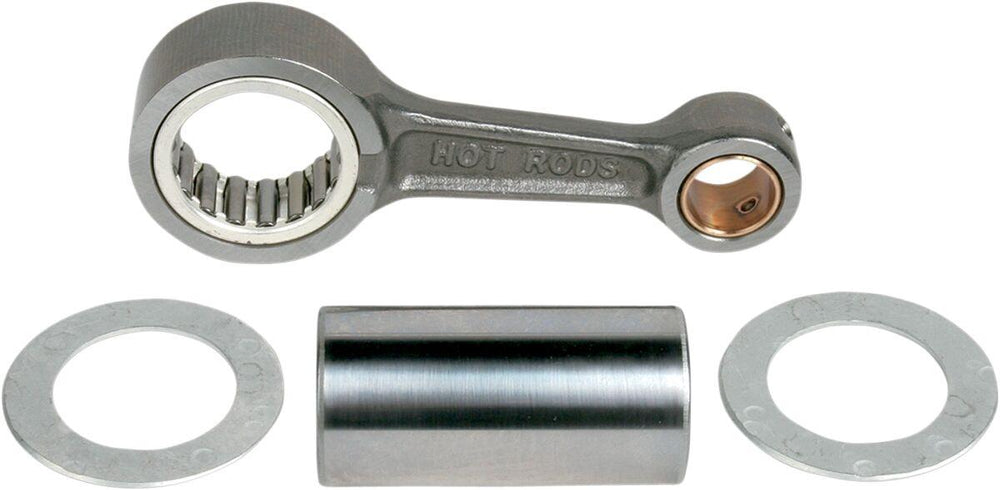

The Hot Rods Connecting Rod Kit For Honda CRF150R 2007-2026 is part of the latest collection from Hot Rods.

Features:

• Heavy-duty OE replacement connecting rods
• Certified 8620 AISI steel provides superior strength
• Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
• Features the latest in caged needle roller bearing designs for high rpm longevity
• Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
• Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
• Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
• Double honing produces an ultra-round bearing surface for reliability at high rpm
• Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
• Made in the USA
• Compatible with Hot Rods and OE crankshafts.
Connecting Rod Big End I.D. 32.000 mm Connecting Rod Big End Width: 15.750 mm Connecting Rod Center-to-Center: 75.400 mm Connecting Rod Small End I.D. 14.000 mm Connecting Rod Small End Width: 14.000 mm Thrust Washer Thickness: 0.940mm Pin Length: 50.000 mm Kit Includes: • Connecting Rod • Crank Pin • Crank Pin Bearing • Thrust Washers

Specifications:

• Displacement: 150 cc
• Engine Type: 4-Cycle
• Material: 8620 Steel
• Product Name: Connecting Rod Kit
• Research Value: Finalized
• Riding Style: Off-Road
• Units: Kit

To fit:

• HONDA CRF 150 RB 2007 All Models
• HONDA CRF 150 RB 2008 All Models
• HONDA CRF 150 RB 2009 All Models
• HONDA CRF 150 RB 2010 All Models
• HONDA CRF 150 RB 2011 All Models
• HONDA CRF 150 RB 2012 All Models
• HONDA CRF 150 RB 2013 All Models
• HONDA CRF 150 RB 2014 All Models
• HONDA CRF 150 RB 2015 All Models
• HONDA CRF 150 RB 2016 All Models
• HONDA CRF 150 RB 2017 All Models
• HONDA CRF 150 R 2007 All Models
• HONDA CRF 150 R 2008 All Models
• HONDA CRF 150 R 2009 All Models
• HONDA CRF 150 R 2010 All Models
• HONDA CRF 150 R 2011 All Models
• HONDA CRF 150 R 2012 All Models
• HONDA CRF 150 R 2013 All Models
• HONDA CRF 150 R 2014 All Models
• HONDA CRF 150 R 2015 All Models
• HONDA CRF 150 R 2016 All Models
• HONDA CRF 150 R 2017 All Models
• HONDA CRF 150 R 2018 All Models
• HONDA CRF 150 R 2019 American Models
• HONDA CRF 150 R 2020 American Models
• HONDA CRF 150 R 2021 All Models
• HONDA CRF 150 R 2022 All Models
• HONDA CRF 150 R 2023 All Models
• HONDA CRF 150 R 2024 All Models
• HONDA CRF 150 R 2025 All Models
• HONDA CRF 150 R 2026 All Models

Manufacturer part number: 8646

View all Hot Rods. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot Rods Connecting Rod Kit For Honda CRF150R 2007-2026
