Product description

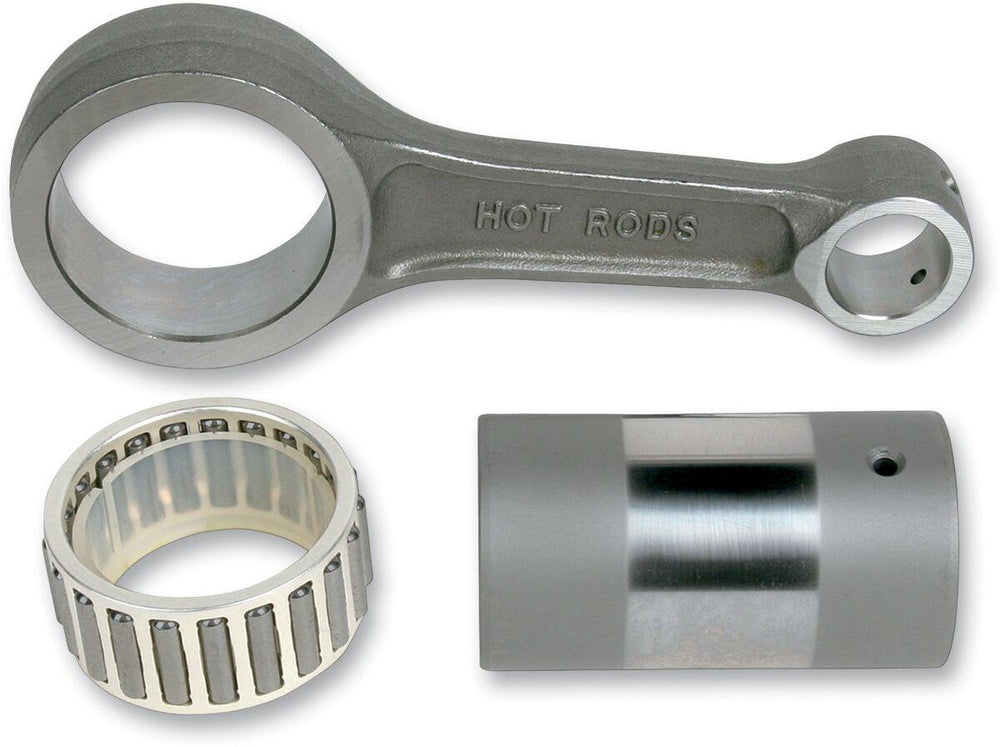

The Hot Rods Connecting Rod Kit For Suzuki RMZ450 2005-2026 is part of the latest collection from Hot Rods.

Features:

• Heavy-duty OE replacement connecting rods
• Certified 8620 AISI steel provides superior strength
• Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
• Features the latest in caged needle roller bearing designs for high rpm longevity
• Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
• Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
• Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
• Double honing produces an ultra-round bearing surface for reliability at high rpm
• Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
• Made in the USA
• Compatible with Hot Rods and OE crankshafts.
Connecting Rod Big End I.D. 42.000 mm Connecting Rod Big End Width: 19.750 mm Connecting Rod Center-to-Center: 106.100 mm Connecting Rod Small End I.D. 19.000 mm Connecting Rod Small End Width: 18.500 mm Pin Length: 60.800 mm Kit Includes: • Connecting Rod • Crank Pin • Crank Pin Bearing

Specifications:

• Displacement: 450 cc
• Engine Type: 4-Cycle
• Material: 8620 Steel
• Product Name: Connecting Rod Kit
• Research Value: Finalized
• Riding Style: Off-Road
• Units: Kit

To fit:

• SUZUKI RM-Z 450 2005 American Models
• SUZUKI RM-Z 450 2005 European Models
• SUZUKI RM-Z 450 2006 American Models
• SUZUKI RM-Z 450 2006 European Models
• SUZUKI RM-Z 450 2007 American Models
• SUZUKI RM-Z 450 2007 European Models
• SUZUKI RM-Z 450 2008 American Models
• SUZUKI RM-Z 450 2008 European Models
• SUZUKI RM-Z 450 2009 All Models
• SUZUKI RM-Z 450 2010 All Models
• SUZUKI RM-Z 450 2011 All Models
• SUZUKI RM-Z 450 2012 All Models
• SUZUKI RM-Z 450 2013 All Models
• SUZUKI RM-Z 450 2014 All Models
• SUZUKI RM-Z 450 2015 All Models
• SUZUKI RM-Z 450 2016 All Models
• SUZUKI RM-Z 450 2017 All Models
• SUZUKI RM-Z 450 2018 All Models
• SUZUKI RM-Z 450 2019 All Models
• SUZUKI RM-Z 450 2020 All Models
• SUZUKI RM-Z 450 2021 All Models
• SUZUKI RM-Z 450 2022 All Models
• SUZUKI RM-Z 450 2023 Army Edition American Models
• SUZUKI RM-Z 450 2023 All Models
• SUZUKI RM-Z 450 2024 Army Edition American Models
• SUZUKI RM-Z 450 2024 All Models
• SUZUKI RM-Z 450 2025 All Models
• SUZUKI RM-Z 450 2026 All Models

Manufacturer part number: 8647

View all Hot Rods. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot Rods Connecting Rod Kit For Suzuki RMZ450 2005-2026
