Product description

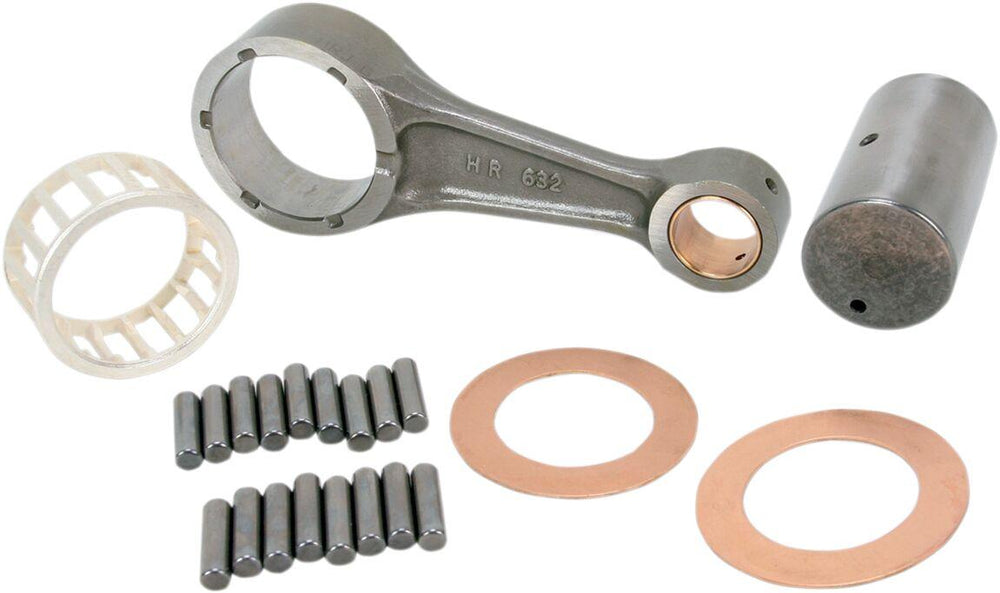

The Hot Rods Connecting Rod Kit For Honda TRX450R 2004-2005 is part of the latest collection from Hot Rods.

Features:

• Heavy-duty OE replacement connecting rods
• Certified 8620 AISI steel provides superior strength
• Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
• Features the latest in caged needle roller bearing designs for high rpm longevity
• Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
• Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
• Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
• Double honing produces an ultra-round bearing surface for reliability at high rpm
• Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
• Made in the USA
• Compatible with Hot Rods and OE crankshafts.
Connecting Rod Big End I.D. 46.000 mm Connecting Rod Big End Width: 23.500 mm Connecting Rod Center-to-Center: 111.400 mm Connecting Rod Small End I.D. 21.000 mm Connecting Rod Small End Width: 19.000 mm Thrust Washer Thickness: 1.000 mm Pin Length: 63.000 mm Kit Includes: • Connecting Rod • Crank Pin • Crank Pin Bearing • Thrust Washers

Specifications:

• Displacement: 450 cc
• Engine Type: 4-Cycle
• Material: 8620 Steel
• Product Name: Connecting Rod Kit
• Research Value: Finalized
• Riding Style: ATV
• Units: Kit

To fit:

• HONDA TRX 450 R 2004 Sportrax All Models
• HONDA TRX 450 R 2005 Sportrax All Models

Manufacturer part number: 8632

View all Hot Rods. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot Rods Connecting Rod Kit For Honda TRX450R 2004-2005
