Product description

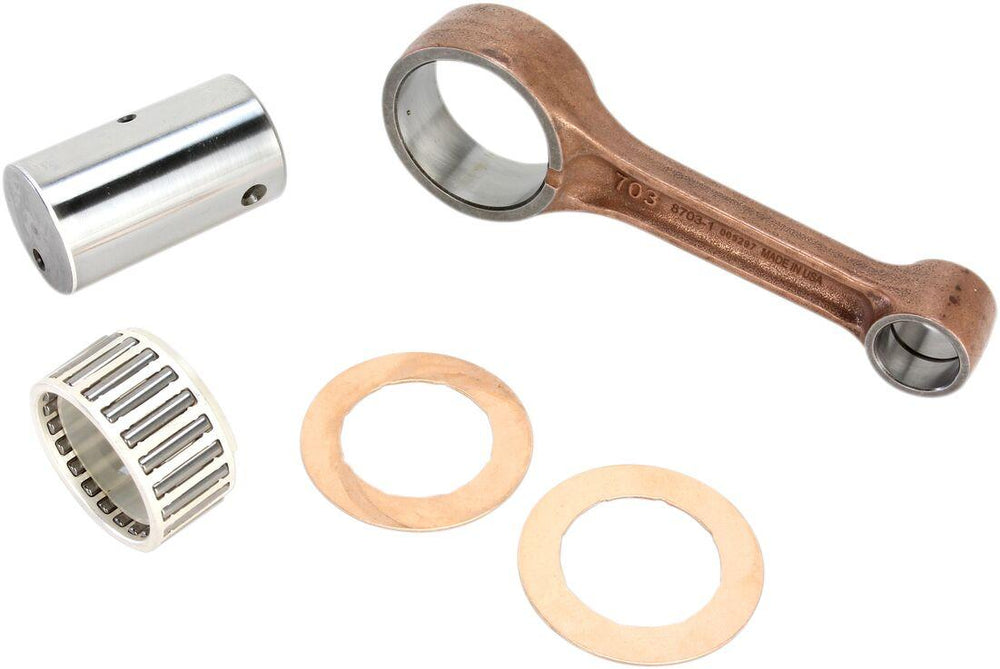

The Hot Rods Connecting Rod Kit For Yamaha YFM 450 D 4X4 Grizzly 2014 is part of the latest collection from Hot Rods.

Features:

• Heavy-duty OE replacement connecting rods
• Certified 8620 AISI steel provides superior strength
• Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
• Features the latest in caged needle roller bearing designs for high rpm longevity
• Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
• Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
• Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
• Double honing produces an ultra-round bearing surface for reliability at high rpm
• Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
• Made in the USA
• Compatible with Hot Rods and OE crankshafts.
Connecting Rod Big End I.D. 43.000 mm Connecting Rod Big End Width: 22.000 mm Connecting Rod Center-to-Center: 121.500 mm Connecting Rod Small End I.D. 20.000 mm Connecting Rod Small End Width: 22.000 mm Thrust Washer Thickness: 1.00 mm Pin Length: 61.800 mm Kit Includes: • Connecting Rod • Crank Pin • Crank Pin Bearing • Thrust Washers

Specifications:

• Displacement: 450 cc
• Engine Type: 4-Cycle
• Material: 8620 Steel
• Product Name: Connecting Rod Kit
• Research Value: Finalized
• Riding Style: ATV| UTV
• Units: Kit

To fit:

• YAMAHA YFM 450 DH 2014 Grizzly Hunter American Models
• YAMAHA YFM 450 D 2014 Grizzly American Models
• YAMAHA YFM 450 FAH 2003 Kodiak Realtree American Models
• YAMAHA YFM 450 FAH 2004 Kodiak Hardwoods American Models
• YAMAHA YFM 450 FAH 2005 Kodiak Hunter American Models
• YAMAHA YFM 450 FAH 2006 Kodiak Hunter American Models
• YAMAHA YFM 450 FA 2003 Kodiak American Models
• YAMAHA YFM 450 FA 2004 Kodiak American Models
• YAMAHA YFM 450 FA 2005 Kodiak Black Carbon American Models
• YAMAHA YFM 450 FA 2005 Kodiak American Models
• YAMAHA YFM 450 FA 2006 Kodiak Special Edition American Models
• YAMAHA YFM 450 FA 2006 Kodiak American Models
• YAMAHA YFM 450 FA 2012 Grizzly IRS European Models
• YAMAHA YFM 450 FA 2013 Grizzly IRS European Models
• YAMAHA YFM 450 FA 2014 Grizzly IRS European Models
• YAMAHA YFM 450 FGH 2007 Grizzly Hunter American Models
• YAMAHA YFM 450 FGH 2008 Grizzly Hunter American Models
• YAMAHA YFM 450 FGH 2009 Grizzly Hunter American Models
• YAMAHA YFM 450 FGH 2010 Grizzly Hunter American Models
• YAMAHA YFM 450 FGH 2011 Grizzly Hunter American Models
• YAMAHA YFM 450 FGH 2012 Grizzly Hunter American Models
• YAMAHA YFM 450 FGH 2013 Grizzly Hunter American Models
• YAMAHA YFM 450 FGPH 2011 Grizzly EPS Hunter American Models
• YAMAHA YFM 450 FGPH 2012 Grizzly EPS Hunter American Models
• YAMAHA YFM 450 FGPH 2013 Grizzly EPS Hunter American Models
• YAMAHA YFM 450 FGP 2011 Grizzly EPS American Models
• YAMAHA YFM 450 FGP 2012 Grizzly EPS American Models
• YAMAHA YFM 450 FGP 2013 Grizzly EPS American Models
• YAMAHA YFM 450 FG 2007 Grizzly Outdoorsman Edition American Models
• YAMAHA YFM 450 FG 2007 Grizzly Silver Edition American Models
• YAMAHA YFM 450 FG 2007 Grizzly American Models
• YAMAHA YFM 450 FG 2008 Grizzly Special Edition American Models
• YAMAHA YFM 450 FG 2008 Grizzly American Models
• YAMAHA YFM 450 FG 2009 Grizzly American Models
• YAMAHA YFM 450 FG 2010 Grizzly American Models
• YAMAHA YFM 450 FG 2011 Grizzly American Models
• YAMAHA YFM 450 FG 2012 Grizzly American Models
• YAMAHA YFM 450 FG 2013 Grizzly American Models
• YAMAHA YFM 450 FWAN 2012 Grizzly EPS European Models
• YAMAHA YFM 450 FWAN 2013 Grizzly EPS European Models
• YAMAHA YFM 450 FWAN 2014 Grizzly EPS European Models
• YAMAHA YFM 450 FX 2006 Wolverine Sport American Models
• YAMAHA YFM 450 FX 2007 Wolverine Sport SE American Models
• YAMAHA YFM 450 FX 2007 Wolverine Sport American Models
• YAMAHA YFM 450 FX 2008 Wolverine Sport SE American Models
• YAMAHA YFM 450 FX 2008 Wolverine Sport American Models
• YAMAHA YFM 450 FX 2009 Wolverine Sport American Models
• YAMAHA YFM 450 FX 2010 Wolverine Sport American Models
• YAMAHA YFM 450 PH 2014 Grizzly EPS Hunter American Models
• YAMAHA YFM 450 P 2014 Grizzly EPS American Models
• YAMAHA YXR 450 FAH 2006 Rhino Hunter Realtree Camo American Models
• YAMAHA YXR 450 FA 2006 Rhino American Models
• YAMAHA YXR 450 FH 2007 Rhino Hunter American Models
• YAMAHA YXR 450 FH 2008 Rhino Hunter American Models
• YAMAHA YXR 450 FH 2009 Rhino Hunter American Models
• YAMAHA YXR 450 F 2007 Rhino Special Edition American Models
• YAMAHA YXR 450 F 2007 Rhino American Models
• YAMAHA YXR 450 F 2008 Rhino Special Edition American Models
• YAMAHA YXR 450 F 2008 Rhino American Models
• YAMAHA YXR 450 F 2009 Rhino American Models

Manufacturer part number: 8703

View all Hot Rods. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot Rods Connecting Rod Kit For Yamaha YFM 450 D 4X4 Grizzly 2014
