Product description

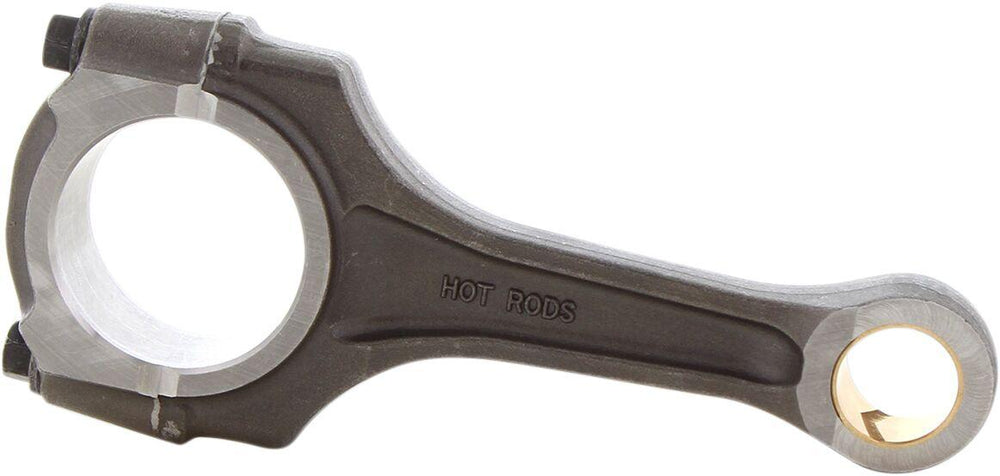

The Hot Rods Connecting Rod Kit For Polaris General 1000 2016-2017 is part of the latest collection from Hot Rods.

Features:

• Heavy-duty OE replacement connecting rods
• Certified 8620 AISI steel provides superior strength
• Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
• Features the latest in caged needle roller bearing designs for high rpm longevity
• Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
• Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
• Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
• Double honing produces an ultra-round bearing surface for reliability at high rpm
• Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
• Made in the USA
• Compatible with Hot Rods and OE crankshafts.
Connecting Rod Big End I.D. 41.00 mm Connecting Rod Big End Width: 24.250 mm Connecting Rod Center-to-Center: 124.850 mm Connecting Rod Small End I.D. 20.000 mm Connecting Rod Small End Width: 20.300 mm Heavy duty rod. Kit Includes: • Connecting Rod • Rod Bolts • Green Rod Bearings.

Specifications:

• Displacement: 1000 cc
• Engine Type: 4-Cycle
• Material: 8620 Steel
• Product Name: Connecting Rod Kit
• Research Value: Finalized
• Riding Style: ATV
• Units: Kit

To fit:

• POLARIS GENERAL 1000 4X4 2018 EPS Hunter Edition American Models
• POLARIS GENERAL 1000 4X4 2018 EPS Premium All Models
• POLARIS GENERAL 1000 4X4 2018 EPS Ride Command Edition American Models
• POLARIS GENERAL 1000 4X4 2018 EPS American Models
• POLARIS GENERAL 1000 4X4 2019 EPS Hunter Edition American Models
• POLARIS GENERAL 1000 4X4 2019 EPS Premium All Models
• POLARIS GENERAL 1000 4X4 2019 EPS Ride Command Edition American Models
• POLARIS GENERAL 1000 4X4 2019 EPS American Models
• POLARIS GENERAL 1000 2016 EPS All Models
• POLARIS GENERAL 1000 2017 EPS All Models
• POLARIS GENERAL 4 1000 2019 EPS Ride Command Edition American Models
• POLARIS RANGER RZR S 2014 EPS LE All Models
• POLARIS RANGER XP 1000 2018 EPS Northstar Edition American Models
• POLARIS RANGER XP 1000 2018 EPS All Models
• POLARIS RANGER XP 1000 2019 EPS 3-Seat High Lifter Edition American Models
• POLARIS RANGER XP 1000 2019 EPS 3-Seat Northstar Edition American Models
• POLARIS RANGER XP 1000 2019 EPS 3-Seat Polaris Pursuit Camo American Models
• POLARIS RANGER XP 1000 2019 EPS 3-Seat Premium American Models
• POLARIS RANGER XP 1000 2019 EPS 3-Seat All Models
• POLARIS RANGER XP 1000 2019 EPS Northstar Edition American Models
• POLARIS RANGER XP 1000 2019 EPS All Models
• POLARIS RZR RS1 1000 2018 EPS All Models
• POLARIS RZR RS1 1000 2019 EPS All Models
• POLARIS RZR S 1000 2017 EPS 60 All Models
• POLARIS RZR S 1000 2018 EPS 60 All Models
• POLARIS RZR S 1000 2019 EPS 60 All Models
• POLARIS RZR XP 1000 2014 EPS All Models
• POLARIS RZR XP 1000 2015 EPS 64 All Models
• POLARIS RZR XP 1000 2016 EPS 64 All Models
• POLARIS RZR XP 1000 2017 EPS 64 All Models
• POLARIS RZR XP 1000 2018 EPS 64 High Lifter Edition All Models
• POLARIS RZR XP 1000 2018 EPS 64 Ride Command Edition All Models
• POLARIS RZR XP 1000 2018 EPS 64 Trails and Rocks Edition All Models
• POLARIS RZR XP 1000 2018 EPS 64 All Models
• POLARIS RZR XP 1000 2019 EPS 64 Dynamix Edition All Models
• POLARIS RZR XP 1000 2019 EPS 64 High Lifter Edition All Models
• POLARIS RZR XP 1000 2019 EPS 64 Ride Command Edition All Models
• POLARIS RZR XP 1000 2019 EPS 64 Trails and Rocks Edition All Models
• POLARIS RZR XP 1000 2019 EPS 64 All Models
• POLARIS RZR XP 4 2014 EPS All Models
• POLARIS RZR XP 4 2015 EPS 64 All Models
• POLARIS RZR XP 4 2016 EPS 64 All Models
• POLARIS RZR XP 4 2017 EPS 64 All Models
• POLARIS RZR XP 4 2018 EPS 64 High Lifter Edition All Models
• POLARIS RZR XP 4 2018 EPS 64 Ride Command Edition All Models
• POLARIS RZR XP 4 2018 EPS 64 All Models
• POLARIS RZR XP 4 2019 EPS 64 Dynamix Edition All Models
• POLARIS RZR XP 4 2019 EPS 64 High Lifter Edition All Models
• POLARIS RZR XP 4 2019 EPS 64 Ride Command Edition All Models
• POLARIS RZR XP 4 2019 EPS 64 All Models

Manufacturer part number: 8708

View all Hot Rods. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot Rods Connecting Rod Kit For Polaris General 1000 2016-2017
