Product description

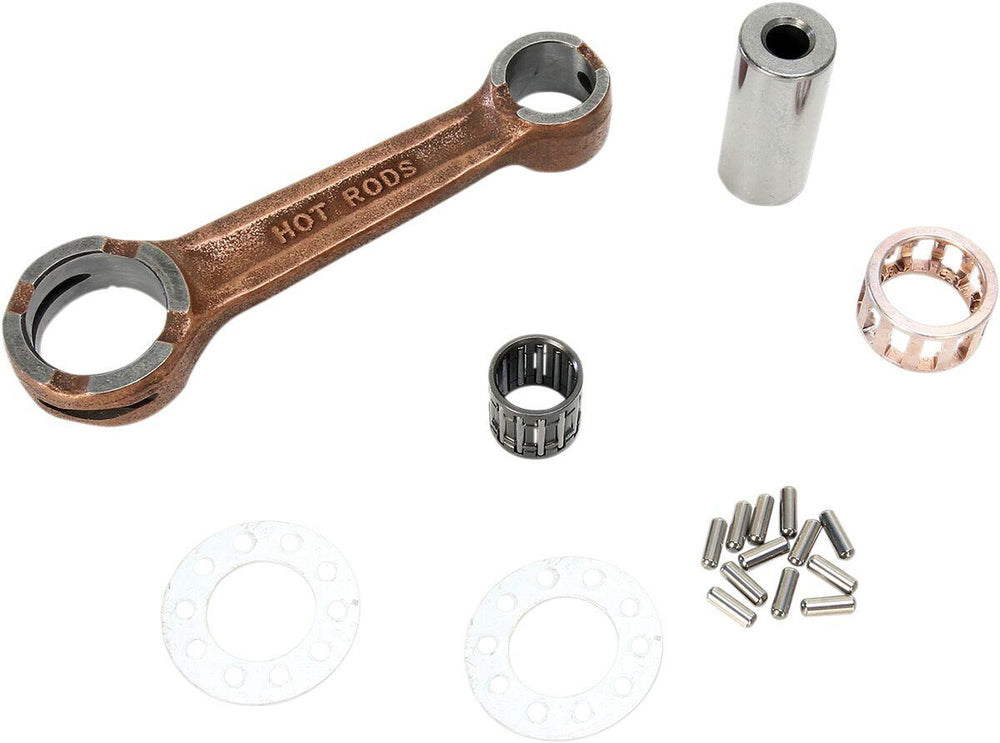

The Hot Rods Connecting Rod Kit For KTM SX50 2006-2019 is part of the latest collection from Hot Rods.

Features:

• Heavy-duty OE replacement connecting rods
• Certified 8620 AISI steel provides superior strength
• Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
• Features the latest in caged needle roller bearing designs for high rpm longevity
• Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
• Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
• Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
• Double honing produces an ultra-round bearing surface for reliability at high rpm
• Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
• Made in the USA
• Compatible with Hot Rods and OE crankshafts.
Connecting Rod Big End I.D. 22.000 mm Connecting Rod Big End Width: 11.800 mm Connecting Rod Center-to-Center: 85.000mm Connecting Rod Small End I.D. 15.000 mm Connecting Rod Small End Width: 14.000 mm Thrust Washer Thickness: 0.850 mm Pin Length: 36.000 mm Kit Includes: • Connecting Rod • Crank Pin • Crank Pin Bearing • Wrist Pin Bearing • Thrust Washers

Specifications:

• Displacement: 50 cc
• Engine Type: 2-Cycle
• Material: 8620 Steel
• Product Name: Connecting Rod Kit
• Research Value: Finalized
• Riding Style: Off-Road
• Units: Kit

To fit:

• HUSQVARNA TC 50 2017 All Models
• HUSQVARNA TC 50 2018 All Models
• HUSQVARNA TC 50 2019 Mini All Models
• HUSQVARNA TC 50 2019 All Models
• KTM SX 50 MINI 2012 American Models
• KTM SX 50 MINI 2013 American Models
• KTM SX 50 MINI 2014 American Models
• KTM SX 50 MINI 2019 American Models
• KTM SX 50 MINI 2020 American Models
• KTM SX 50 MINI 2021 American Models
• KTM SX 50 2006 All Models
• KTM SX 50 2007 All Models
• KTM SX 50 2008 All Models
• KTM SX 50 2009 All Models
• KTM SX 50 2010 All Models
• KTM SX 50 2011 All Models
• KTM SX 50 2012 All Models
• KTM SX 50 2013 All Models
• KTM SX 50 2014 All Models
• KTM SX 50 2015 All Models
• KTM SX 50 2016 All Models
• KTM SX 50 2017 All Models
• KTM SX 50 2018 All Models
• KTM SX 50 2019 All Models

Manufacturer part number: 8135

View all Hot Rods. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot Rods Connecting Rod Kit For KTM SX50 2006-2019
