Product description

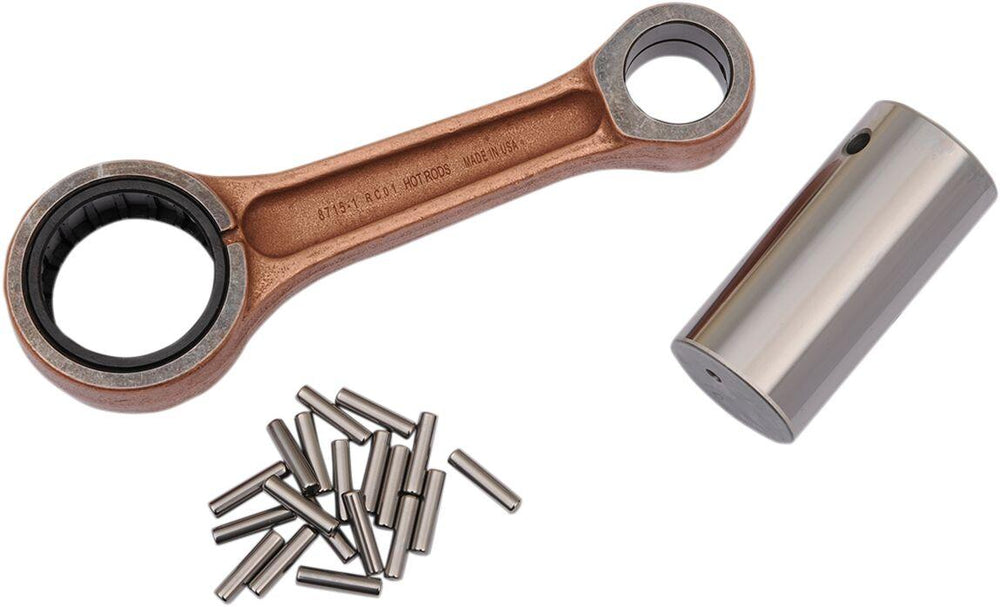

The Hot Rods Connecting Rod Kit For Polaris ATP 500 HO 4X4 2004-2005 is part of the latest collection from Hot Rods.

Features:

• Heavy-duty OE replacement connecting rods
• Certified 8620 AISI steel provides superior strength
• Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
• Features the latest in caged needle roller bearing designs for high rpm longevity
• Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
• Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
• Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
• Double honing produces an ultra-round bearing surface for reliability at high rpm
• Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
• Made in the USA
• Compatible with Hot Rods and OE crankshafts.
Connecting Rod Big End I.D. 43.000 mm Connecting Rod Big End Width: 22.000 mm Connecting Rod Center-to-Center: 127.500 mm Connecting Rod Small End I.D. 23.000 mm Connecting Rod Small End Width: 22.000 mm Pin Length: 71.000 mm Kit Includes: • Connecting Rod • Crank Pin • Crank Pin Bearing

Specifications:

• Displacement: 400 cc| 450 cc| 500 cc
• Engine Type: 4-Cycle
• Material: 8620 Steel
• Product Name: Connecting Rod Kit
• Research Value: Finalized
• Riding Style: ATV| UTV
• Units: Kit

To fit:

• POLARIS ATP 500 HO 2004 All Models
• POLARIS ATP 500 HO 2005 All Models
• POLARIS HAWKEYE 400 HO 2011 All Models
• POLARIS HAWKEYE 400 HO 2012 All Models
• POLARIS HAWKEYE 400 HO 2013 HD All Models
• POLARIS HAWKEYE 400 HO 2013 All Models
• POLARIS HAWKEYE 400 HO 2014 HD All Models
• POLARIS RANGER 400 4X4 2010 All Models
• POLARIS RANGER 400 4X4 2011 All Models
• POLARIS RANGER 400 4X4 2012 All Models
• POLARIS RANGER 400 4X4 2013 All Models
• POLARIS RANGER 400 4X4 2014 All Models
• POLARIS RANGER 500 EFI 2006 All Models
• POLARIS RANGER 500 EFI 2007 All Models
• POLARIS SCRAMBLER 500 4X4 1999 All Models
• POLARIS SCRAMBLER 500 4X4 2000 All Models
• POLARIS SCRAMBLER 500 4X4 2001 All Models
• POLARIS SCRAMBLER 500 4X4 2002 All Models
• POLARIS SCRAMBLER 500 4X4 2003 All Models
• POLARIS SCRAMBLER 500 4X4 2004 All Models
• POLARIS SCRAMBLER 500 4X4 2005 All Models
• POLARIS SCRAMBLER 500 4X4 2006 All Models
• POLARIS SCRAMBLER 500 4X4 2007 American Models
• POLARIS SCRAMBLER 500 4X4 2007 European Models
• POLARIS SCRAMBLER 500 4X4 2008 American Models
• POLARIS SCRAMBLER 500 4X4 2008 European Models
• POLARIS SCRAMBLER 500 4X4 2009 American Models
• POLARIS SCRAMBLER 500 4X4 2009 European Models
• POLARIS SCRAMBLER 500 4X4 2010 American Models
• POLARIS SCRAMBLER 500 4X4 2010 European Models
• POLARIS SCRAMBLER 500 4X4 2011 American Models
• POLARIS SCRAMBLER 500 4X4 2011 European Models
• POLARIS SCRAMBLER 500 4X4 2012 American Models
• POLARIS SCRAMBLER 500 4X4 2012 European Models
• POLARIS SPORTSMAN 450 4X4 2006 All Models

Manufacturer part number: 8715

View all Hot Rods. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot Rods Connecting Rod Kit For Polaris ATP 500 HO 4X4 2004-2005
