Product description

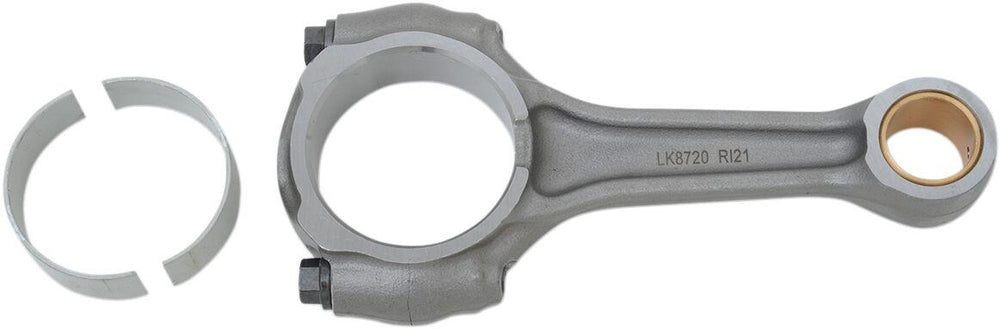

The Hot Rods Connecting Rod Kit For Polaris Scrambler 850 4X4 2015-2017 is part of the latest collection from Hot Rods.

Features:

• Heavy-duty OE replacement connecting rods
• Certified 8620 AISI steel provides superior strength
• Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
• Features the latest in caged needle roller bearing designs for high rpm longevity
• Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
• Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
• Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
• Double honing produces an ultra-round bearing surface for reliability at high rpm
• Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
• Made in the USA
• Compatible with Hot Rods and OE crankshafts.
Connecting Rod Big End I.D. 48.000 mm Connecting Rod Big End Width: 23.000 mm Connecting Rod Center-to-Center: 120.000 mm Connecting Rod Small End I.D. 20.000 mm Connecting Rod Small End Width: 23.000 mm Kit Includes: • Connecting Rod • Crank Pin Bearing.

Specifications:

• Displacement: 1000 cc| 850 cc
• Engine Type: 4-Cycle
• Material: 8620 Steel
• Product Name: Connecting Rod Kit
• Research Value: Finalized
• Riding Style: ATV
• Units: Kit

To fit:

• POLARIS SCRAMBLER 850 4X4 2015 All Models
• POLARIS SCRAMBLER 850 4X4 2016 All Models
• POLARIS SCRAMBLER 850 4X4 2017 All Models
• POLARIS SCRAMBLER 850 4X4 2018 American Models
• POLARIS SCRAMBLER XP 1000 2014 EPS All Models
• POLARIS SCRAMBLER XP 1000 2015 EPS Touring All Models
• POLARIS SCRAMBLER XP 1000 2015 EPS All Models
• POLARIS SCRAMBLER XP 1000 2016 EPS All Models
• POLARIS SCRAMBLER XP 1000 2017 EPS All Models
• POLARIS SCRAMBLER XP 1000 2018 EPS All Models
• POLARIS SPORTSMAN 1000 4X4 2015 EPS Forest European Models
• POLARIS SPORTSMAN 850 4X4 2010 EPS Touring All Models
• POLARIS SPORTSMAN 850 4X4 2011 EPS Forest European Models
• POLARIS SPORTSMAN 850 4X4 2011 EPS Touring All Models
• POLARIS SPORTSMAN 850 4X4 2012 EPS Forest European Models
• POLARIS SPORTSMAN 850 4X4 2012 EPS Touring All Models
• POLARIS SPORTSMAN 850 4X4 2013 EPS Forest European Models
• POLARIS SPORTSMAN 850 4X4 2013 EPS Touring All Models
• POLARIS SPORTSMAN 850 4X4 2014 EPS Forest European Models
• POLARIS SPORTSMAN 850 4X4 2015 EPS Forest European Models
• POLARIS SPORTSMAN 850 4X4 2016 High Lifter Edition All Models
• POLARIS SPORTSMAN 850 4X4 2016 All Models
• POLARIS SPORTSMAN 850 4X4 2017 High Lifter Edition All Models
• POLARIS SPORTSMAN 850 4X4 2017 All Models
• POLARIS SPORTSMAN 850 4X4 2018 High Lifter Edition American Models
• POLARIS SPORTSMAN 850 4X4 2018 American Models
• POLARIS SPORTSMAN 850 SP 2017 EPS Touring All Models
• POLARIS SPORTSMAN 850 SP 2018 EPS Touring American Models
• POLARIS SPORTSMAN XP 1000 2015 EPS Touring All Models
• POLARIS SPORTSMAN XP 1000 2015 EPS All Models
• POLARIS SPORTSMAN XP 1000 2016 EPS High Lifter Edition All Models
• POLARIS SPORTSMAN XP 1000 2016 EPS Touring All Models
• POLARIS SPORTSMAN XP 1000 2016 EPS All Models
• POLARIS SPORTSMAN XP 1000 2017 EPS High Lifter Edition All Models
• POLARIS SPORTSMAN XP 1000 2017 EPS Touring All Models
• POLARIS SPORTSMAN XP 1000 2017 EPS All Models
• POLARIS SPORTSMAN XP 850 2009 EPS All Models
• POLARIS SPORTSMAN XP 850 2009 All Models
• POLARIS SPORTSMAN XP 850 2010 EPS All Models
• POLARIS SPORTSMAN XP 850 2010 All Models
• POLARIS SPORTSMAN XP 850 2011 EPS All Models
• POLARIS SPORTSMAN XP 850 2011 All Models
• POLARIS SPORTSMAN XP 850 2012 EPS All Models
• POLARIS SPORTSMAN XP 850 2012 All Models
• POLARIS SPORTSMAN XP 850 2013 EPS All Models
• POLARIS SPORTSMAN XP 850 2013 All Models
• POLARIS SPORTSMAN XP 850 2014 EPS All Models

Manufacturer part number: 8720

View all Hot Rods. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot Rods Connecting Rod Kit For Polaris Scrambler 850 4X4 2015-2017
