Product description

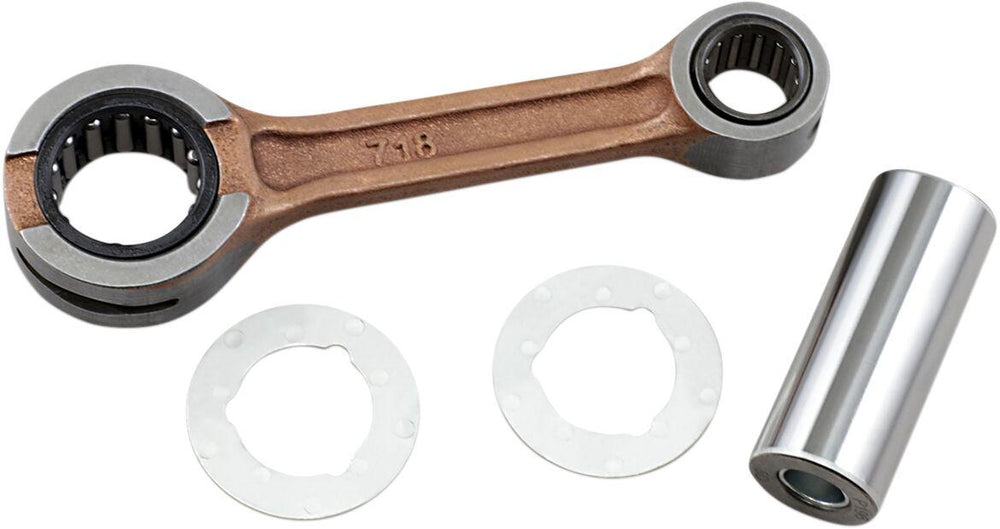

The Hot Rods Connecting Rod For Yamaha YZ125 2005-2021 is part of the latest collection from Hot Rods.

Features:

• Certified 8620 AISI steel provides superior strength
• Uniquely designed big end uses strategically located side scalloping vent slots to minimize high-RPM bearing race distortion
• Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to 58-62Rc
• Hot Rods uses the latest in caged needle roller bearing designs for high RPM longevity
• Thrust washers are manufactured from bronze phosphor and are silver coated
• Rod assembly sold complete with rod, crankpin, crankpin bearing, top-end bearing and thrust washers
• Compatible with Hot Rods and OE crankshafts
• Made in USA
Connecting Rod Big End I.D. 29.000 mm Connecting Rod Big End Width: 17.000 mm Connecting Rod Center-to-Center: 102.000 mm Connecting Rod Small End I.D. 19.000 mm Connecting Rod Small End Width: 16.000 mm Thrust Washer Thickness: 1.000 mm Pin Length: 54.500 mm Kit Includes: • Connecting Rod • Crank Pin • Crank Pin Bearing • Wrist Pin Bearing • Thrust Washers

Specifications:

• Displacement: 125 cc
• Engine Type: 2-Cycle
• Material: 8620 Steel
• Product Name: Connecting Rod Kit
• Research Value: Finalized
• Riding Style: Off-Road
• Units: Kit

To fit:

• YAMAHA YZ 125 2005 All Models
• YAMAHA YZ 125 2006 All Models
• YAMAHA YZ 125 2007 All Models
• YAMAHA YZ 125 2008 All Models
• YAMAHA YZ 125 2009 All Models
• YAMAHA YZ 125 2010 All Models
• YAMAHA YZ 125 2011 All Models
• YAMAHA YZ 125 2012 All Models
• YAMAHA YZ 125 2013 All Models
• YAMAHA YZ 125 2014 All Models
• YAMAHA YZ 125 2015 All Models
• YAMAHA YZ 125 2016 All Models
• YAMAHA YZ 125 2017 All Models
• YAMAHA YZ 125 2018 All Models
• YAMAHA YZ 125 2019 All Models
• YAMAHA YZ 125 2020 All Models
• YAMAHA YZ 125 2021 All Models

Manufacturer part number: 8718

View all Hot Rods. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot Rods Connecting Rod For Yamaha YZ125 2005-2021
