Product description

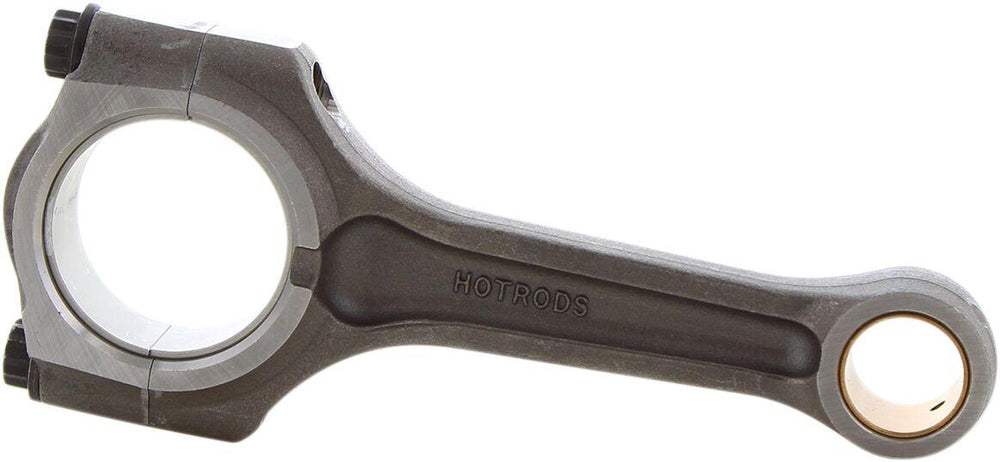

The Hot Rods Connecting Rod Kit For Polaris Ranger RZR 900 4X4 2014 is part of the latest collection from Hot Rods.

Features:

• Heavy-duty OE replacement connecting rods
• Certified 8620 AISI steel provides superior strength
• Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
• Features the latest in caged needle roller bearing designs for high rpm longevity
• Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
• Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
• Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
• Double honing produces an ultra-round bearing surface for reliability at high rpm
• Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
• Made in the USA
• Compatible with Hot Rods and OE crankshafts.
Connecting Rod Big End I.D. 41.000 mm Connecting Rod Big End Width: 24.250 mm Connecting Rod Center-to-Center: 128.500 mm Connecting Rod Small End I.D. 20.000 mm Connecting Rod Small End Width: 20.000 mm Requires two per vehicle. Heavy duty rod. Kit Includes: • Connecting Rod • Crank Pin Bearing

Specifications:

• Displacement: 900 cc
• Engine Type: 4-Cycle
• Material: 8620 Steel
• Product Name: Connecting Rod Kit
• Research Value: Finalized
• Riding Style: UTV
• Units: Kit

To fit:

• POLARIS RANGER RZR 900 2014 EPS LE All Models
• POLARIS RANGER RZR 900 2014 All Models
• POLARIS RANGER RZR XP 2011 All Models
• POLARIS RANGER RZR XP 2012 All Models
• POLARIS RANGER RZR XP 2013 EPS Jagged X Edition All Models
• POLARIS RANGER RZR XP 2013 EPS LE All Models
• POLARIS RANGER RZR XP 2013 EPS All Models
• POLARIS RANGER RZR XP 2013 All Models

Manufacturer part number: 8704

View all Hot Rods. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot Rods Connecting Rod Kit For Polaris Ranger RZR 900 4X4 2014
