Product description

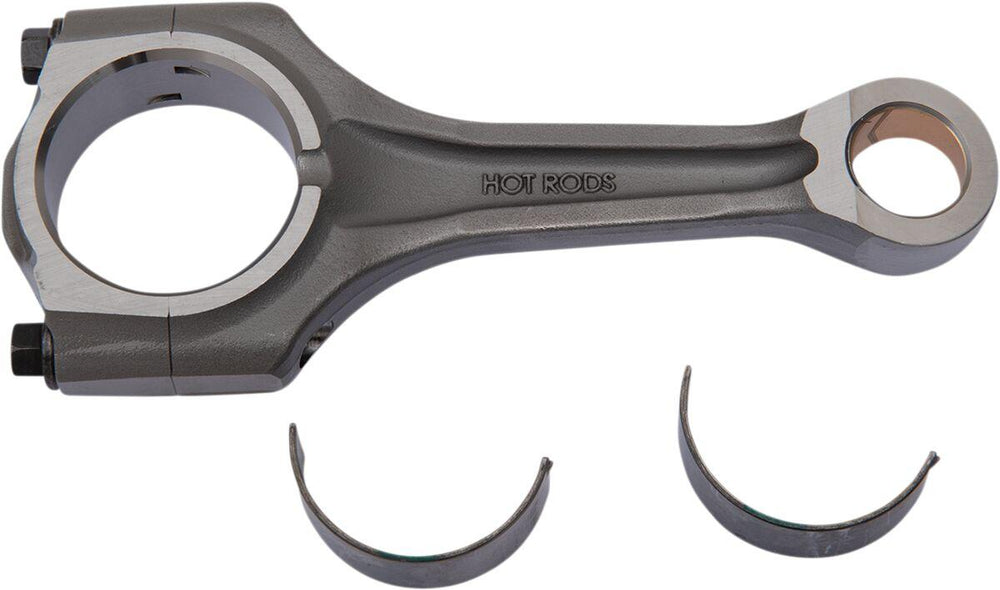

The Hot Rods Connecting Rod For Polaris ACE 900 XC4X4 is part of the latest collection from Hot Rods.

Features:

• Certified 8620 AISI steel provides superior strength
• Uniquely designed big end uses strategically located side scalloping vent slots to minimize high-RPM bearing race distortion
• Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to 58-62Rc
• Hot Rods uses the latest in caged needle roller bearing designs for high RPM longevity
• Thrust washers are manufactured from bronze phosphor and are silver coated
• Rod assembly sold complete with rod, crankpin, crankpin bearing, top-end bearing and thrust washers
• Compatible with Hot Rods and OE crankshafts
• Made in USA
Connecting Rod Big End I.D. 44.000 mm Connecting Rod Big End Width: 24.000 mm Connecting Rod Center-to-Center: 129.500 mm Connecting Rod Small End I.D. 20.000 mm Connecting Rod Small End Width: 20.000 mm Two required per vehicle. Heavy duty rod. Kit Includes: • Connecting Rod • Crank Pin Bearing

Specifications:

• Displacement: 900 cc
• Engine Type: 4-Cycle
• Material: 8620 Steel
• Product Name: Connecting Rod Kit
• Research Value: Finalized
• Riding Style: ATV| UTV
• Units: Kit

To fit:

• POLARIS ACE 900 XC 2018 EPS American Models
• POLARIS ACE 900 XC 2019 EPS American Models
• POLARIS RANGER 900 CREW-5 2016 All Models
• POLARIS RANGER 900 CREW-6 2015 All Models
• POLARIS RANGER 900 CREW-6 2016 All Models
• POLARIS RANGER 900 CREW-6 2017 All Models
• POLARIS RANGER 900 CREW 2014 All Models
• POLARIS RANGER 900 CREW 2015 All Models
• POLARIS RANGER RZR 4 2015 EPS 60 All Models
• POLARIS RANGER RZR 4 2016 EPS 60 All Models
• POLARIS RANGER RZR 4 2017 EPS 60 All Models
• POLARIS RANGER RZR 900 2015 50 All Models
• POLARIS RANGER RZR 900 2015 EPS XC Edition 55 All Models
• POLARIS RANGER RZR 900 2016 50 All Models
• POLARIS RANGER RZR 900 2016 EPS XC Edition 55 All Models
• POLARIS RANGER RZR 900 2017 50 All Models
• POLARIS RANGER RZR 900 2017 EPS XC Edition 55 All Models
• POLARIS RANGER RZR S 2015 60 All Models
• POLARIS RANGER RZR S 2016 60 All Models
• POLARIS RANGER XP 900 2013 All Models
• POLARIS RANGER XP 900 2014 All Models
• POLARIS RANGER XP 900 2015 All Models
• POLARIS RANGER XP 900 2016 All Models
• POLARIS RANGER XP 900 2017 All Models
• POLARIS RANGER XP 900 2018 American Models
• POLARIS RANGER XP 900 2019 American Models
• POLARIS RZR 900 4X4 2018 50 All Models
• POLARIS RZR 900 4X4 2019 50 All Models
• POLARIS RZR S 900 2018 60 All Models
• POLARIS RZR S 900 2019 60 All Models
• POLARIS SPORTSMAN ACE 900 2016 EPS All Models
• POLARIS SPORTSMAN ACE 900 2017 EPS All Models

Manufacturer part number: 8716

View all Hot Rods. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot Rods Connecting Rod For Polaris ACE 900 XC4X4
