Product description

The Hot Rods Connecting Rod For Yamaha YFZ450R 2014-2019 is part of the latest collection from Hot Rods.

Features:

• Certified 8620 AISI steel provides superior strength
• Uniquely designed big end uses strategically located side scalloping vent slots to minimize high-RPM bearing race distortion
• Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to 58-62Rc
• Hot Rods uses the latest in caged needle roller bearing designs for high RPM longevity
• Thrust washers are manufactured from bronze phosphor and are silver coated

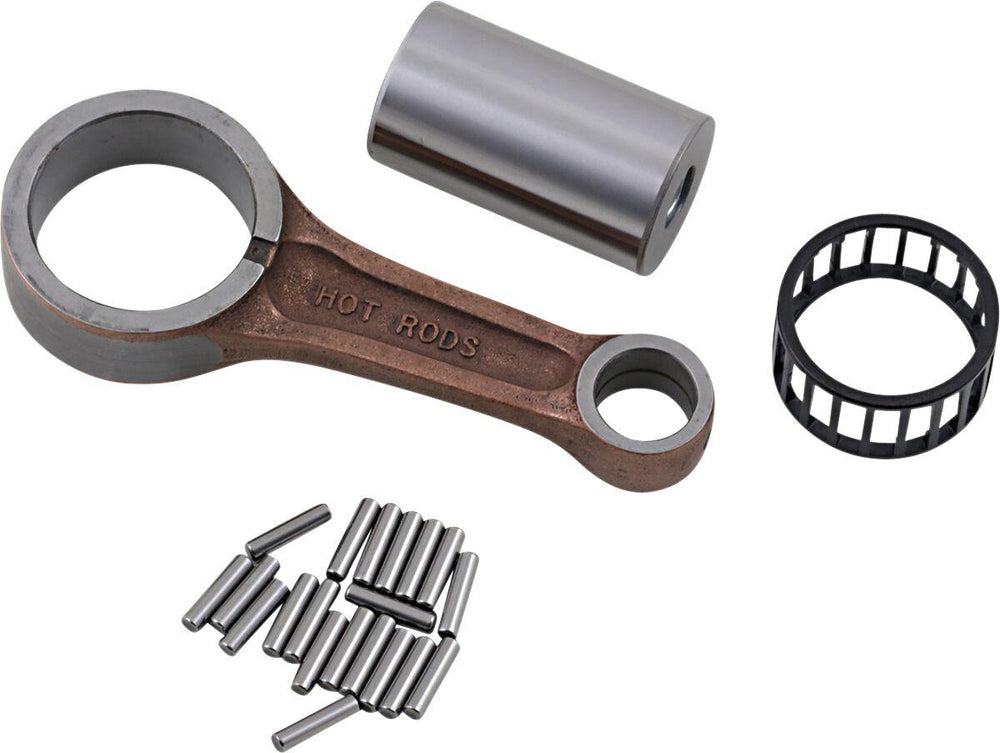

• Rod assembly sold complete with rod, crankpin, crankpin bearing, top-end bearing and thrust washers
• Compatible with Hot Rods and OE crankshafts
• Made in USA
Connecting Rod Big End I.D. 45.000 mm Connecting Rod Big End Width: 22.950 mm Connecting Rod Center-to-Center: 108.250 mm Connecting Rod Small End I.D. 20.000 mm Connecting Rod Small End Width: 17.950 mm Pin Length: 62.800 mm Kit Includes: • Connecting Rod • Crank Pin • Crank Pin Bearing

Specifications:

• Displacement: 450 cc
• Engine Type: 4-Cycle
• Material: 8620 Steel
• Product Name: Connecting Rod Kit
• Research Value: Finalized
• Riding Style: ATV
• Units: Kit

To fit:

• YAMAHA YFZ 450 R 2014 All Models
• YAMAHA YFZ 450 R 2015 All Models
• YAMAHA YFZ 450 R 2016 All Models
• YAMAHA YFZ 450 R 2017 All Models
• YAMAHA YFZ 450 R 2018 American Models
• YAMAHA YFZ 450 R 2019 All Models

Manufacturer part number: 8729

View all Hot Rods. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot Rods Connecting Rod For Yamaha YFZ450R 2014-2019
