Product description

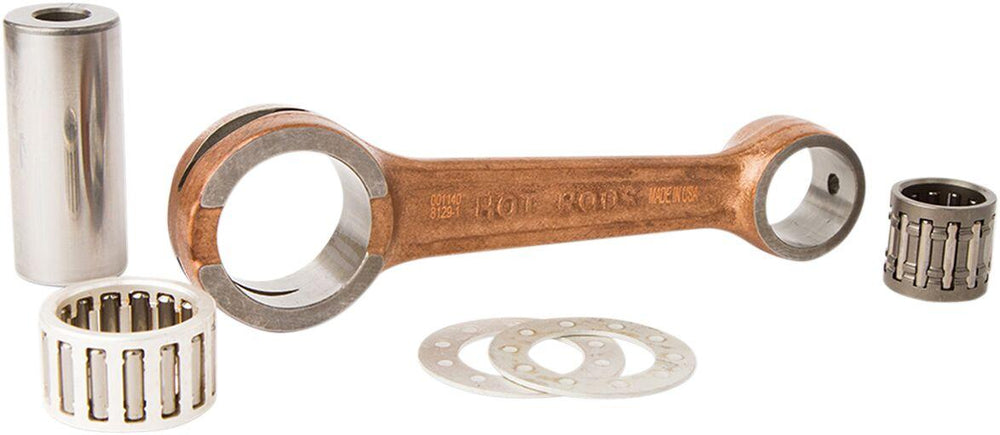

The Hot Rods Connecting Rod Kit For Kawasaki KDX250 1989-2006 is part of the latest collection from Hot Rods.

Features:

• Heavy-duty OE replacement connecting rods
• Certified 8620 AISI steel provides superior strength
• Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
• Features the latest in caged needle roller bearing designs for high rpm longevity
• Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
• Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
• Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
• Double honing produces an ultra-round bearing surface for reliability at high rpm
• Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
• Made in the USA
• Compatible with Hot Rods and OE crankshafts.
Connecting Rod Big End I.D. 29.000 mm Connecting Rod Big End Width: 16.900 mm Connecting Rod Center-to-Center: 109.000 mm Connecting Rod Small End I.D. 21.000 mm Connecting Rod Small End Width: 16.900 mm Thrust Washer Thickness: 1.000 mm Pin Length: 51.100 mm Kit Includes: • Connecting Rod • Crank Pin • Crank Pin Bearing • Wrist Pin Bearing • Thrust Washers

Specifications:

• Displacement: 125 cc| 200 cc| 220 cc
• Engine Type: 2-Cycle
• Material: 8620 Steel
• Product Name: Connecting Rod Kit
• Research Value: Finalized
• Riding Style: Adventure Touring / Dual-Sport| Off-Road| Street
• Units: Kit

To fit:

• KAWASAKI KDX 200 1989 All Models
• KAWASAKI KDX 200 1990 All Models
• KAWASAKI KDX 200 1991 All Models
• KAWASAKI KDX 200 1992 All Models
• KAWASAKI KDX 200 1993 All Models
• KAWASAKI KDX 200 1994 All Models
• KAWASAKI KDX 200 1995 All Models
• KAWASAKI KDX 200 1996 All Models
• KAWASAKI KDX 200 1997 All Models
• KAWASAKI KDX 200 1998 All Models
• KAWASAKI KDX 200 1999 All Models
• KAWASAKI KDX 200 2000 All Models
• KAWASAKI KDX 200 2001 All Models
• KAWASAKI KDX 200 2002 All Models
• KAWASAKI KDX 200 2003 All Models
• KAWASAKI KDX 200 2004 All Models
• KAWASAKI KDX 200 2005 All Models
• KAWASAKI KDX 200 2006 All Models
• KAWASAKI KDX 220 R 1997 American Models
• KAWASAKI KDX 220 R 1998 American Models
• KAWASAKI KDX 220 R 1999 American Models
• KAWASAKI KDX 220 R 2000 American Models
• KAWASAKI KDX 220 R 2001 American Models
• KAWASAKI KDX 220 R 2002 American Models
• KAWASAKI KDX 220 R 2003 American Models
• KAWASAKI KDX 220 R 2004 American Models
• KAWASAKI KDX 220 R 2005 American Models
• KAWASAKI KX 125 F 1988 All Models
• KAWASAKI KX 125 G 1989 All Models
• KAWASAKI KX 125 H 1990 All Models
• KAWASAKI KX 125 H 1991 All Models

Manufacturer part number: 8129

View all Hot Rods. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot Rods Connecting Rod Kit For Kawasaki KDX250 1989-2006
