Product description

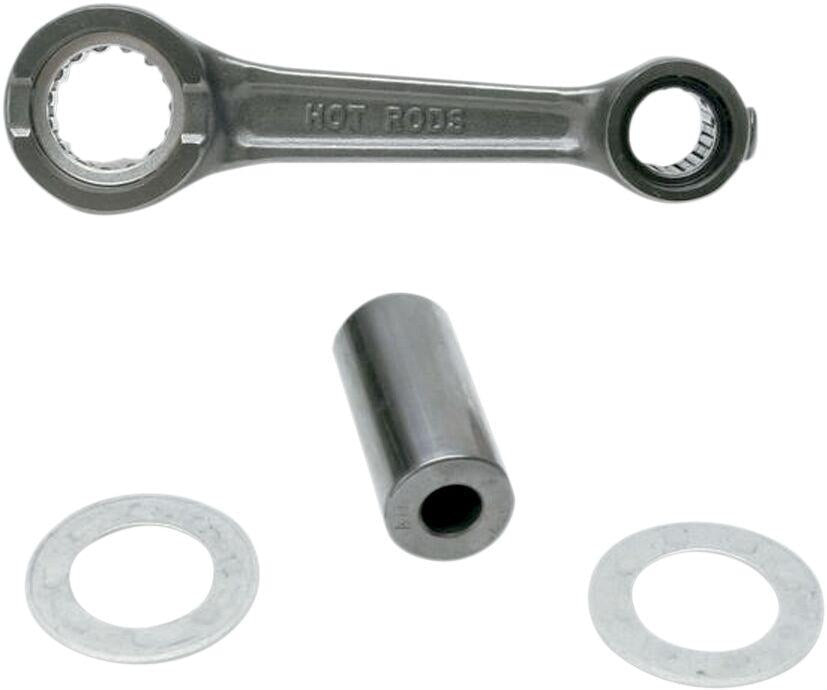

The Hot Rods Connecting Rod Kit For Kawasaki KX125 A 1979-1981 is part of the latest collection from Hot Rods.

Features:

• Heavy-duty OE replacement connecting rods
• Certified 8620 AISI steel provides superior strength
• Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
• Features the latest in caged needle roller bearing designs for high rpm longevity
• Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
• Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
• Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
• Double honing produces an ultra-round bearing surface for reliability at high rpm
• Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
• Made in the USA
• Compatible with Hot Rods and OE crankshafts.

Specifications:

• Material: 8620 Steel
• Product Name: Connecting Rod Kit
• Research Value: Finalized
• Riding Style: Off-Road
• Units: Kit

To fit:

• KAWASAKI KX 125 A 1979 All Models
• KAWASAKI KX 125 A 1980 All Models
• KAWASAKI KX 125 A 1981 All Models
• KAWASAKI KX 125 B 1982 All Models
• KAWASAKI KX 125 B 1983 All Models
• KAWASAKI KX 125 C 1984 All Models
• KAWASAKI KX 125 D 1985 All Models
• KAWASAKI KX 125 E 1986 All Models
• KAWASAKI KX 125 E 1987 All Models
• KAWASAKI KX 125 F 1988 All Models
• KAWASAKI KX 125 G 1989 All Models
• KAWASAKI KX 125 H 1990 All Models
• KAWASAKI KX 125 H 1991 All Models
• KAWASAKI KX 125 J 1992 All Models
• KAWASAKI KX 125 J 1993 All Models

Manufacturer part number: 8102

View all Hot Rods. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot Rods Connecting Rod Kit For Kawasaki KX125 A 1979-1981
