Product description

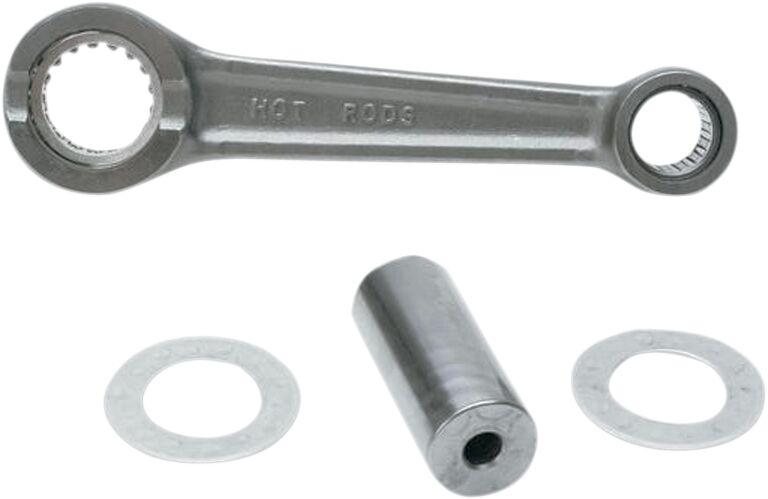

The Hot Rods Connecting Rod Kit For KTM EGS 250 1993-1999 is part of the latest collection from Hot Rods.

Features:

• Heavy-duty OE replacement connecting rods
• Certified 8620 AISI steel provides superior strength
• Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
• Features the latest in caged needle roller bearing designs for high rpm longevity
• Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
• Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
• Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
• Double honing produces an ultra-round bearing surface for reliability at high rpm
• Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
• Made in the USA
• Compatible with Hot Rods and OE crankshafts.
Connecting Rod Big End I.D. 31.000 mm Connecting Rod Big End Width: 16.900 mm Connecting Rod Center-to-Center: 132.000 mm Connecting Rod Small End I.D. 22.000 mm Connecting Rod Small End Width: 16.900 mm Thrust Washer Thickness: 1.000 mm Pin Length: 59.900 mm Kit Includes: • Connecting Rod • Crank Pin • Crank Pin Bearing • Wrist Pin Bearing • Thrust Washers

Specifications:

• Displacement: 250 cc| 300 cc
• Engine Type: 2-Cycle
• Material: 8620 Steel
• Product Name: Connecting Rod Kit
• Research Value: Finalized
• Riding Style: Adventure Touring / Dual-Sport| Off-Road| Street
• Units: Kit

To fit:

• KTM EGS 250 1993 European Models
• KTM EGS 250 1994 European Models
• KTM EGS 250 1995 European Models
• KTM EGS 250 1996 European Models
• KTM EGS 250 1997 European Models
• KTM EGS 250 1998 European Models
• KTM EGS 250 1999 European Models
• KTM EGS 300 1993 European Models
• KTM EGS 300 1994 European Models
• KTM EGS 300 1995 European Models
• KTM EGS 300 1996 European Models
• KTM EGS 300 1997 European Models
• KTM EXC 250 1993 All Models
• KTM EXC 250 1994 All Models
• KTM EXC 250 1995 All Models
• KTM EXC 250 1996 All Models
• KTM EXC 250 1997 All Models
• KTM EXC 250 1998 All Models
• KTM EXC 250 1999 All Models
• KTM EXC 300 1990 American Models
• KTM EXC 300 1991 American Models
• KTM EXC 300 1992 American Models
• KTM EXC 300 1993 All Models
• KTM EXC 300 1994 All Models
• KTM EXC 300 1995 All Models
• KTM EXC 300 1996 All Models
• KTM EXC 300 1997 All Models
• KTM EXC 300 1998 All Models
• KTM EXC 300 1999 All Models
• KTM EXC 300 2000 All Models
• KTM EXC 300 2001 All Models
• KTM EXC 300 2002 All Models
• KTM EXC 300 2003 All Models
• KTM MXC 250 1990 American Models
• KTM MXC 250 1991 American Models
• KTM MXC 250 1992 American Models
• KTM MXC 250 1993 American Models
• KTM MXC 250 1994 American Models
• KTM MXC 250 1995 American Models
• KTM MXC 250 1996 American Models
• KTM MXC 250 1997 American Models
• KTM MXC 250 1998 American Models
• KTM MXC 250 1999 American Models
• KTM MXC 300 1993 American Models
• KTM MXC 300 1994 American Models
• KTM MXC 300 1995 American Models
• KTM MXC 300 1996 American Models
• KTM MXC 300 1997 American Models
• KTM MXC 300 1998 American Models
• KTM MXC 300 1999 American Models
• KTM MXC 300 2000 American Models
• KTM MXC 300 2001 American Models
• KTM MXC 300 2002 American Models
• KTM MXC 300 2003 American Models
• KTM SC 250 1995 Supercompetition European Models
• KTM SC 300 1995 Supercompetition European Models
• KTM SX 250 1993 All Models
• KTM SX 250 1994 All Models
• KTM SX 250 1995 All Models
• KTM SX 250 1996 All Models
• KTM SX 250 1997 All Models
• KTM SX 250 1998 All Models
• KTM SX 250 1999 All Models
• KTM SX 300 1993 European Models
• KTM SX 300 1994 European Models
• KTM SX 300 1995 European Models

Manufacturer part number: 8111

View all Hot Rods. View all Parts and spares.

Contents

Your package will include the following:

• 1 X Hot Rods Connecting Rod Kit For KTM EGS 250 1993-1999
